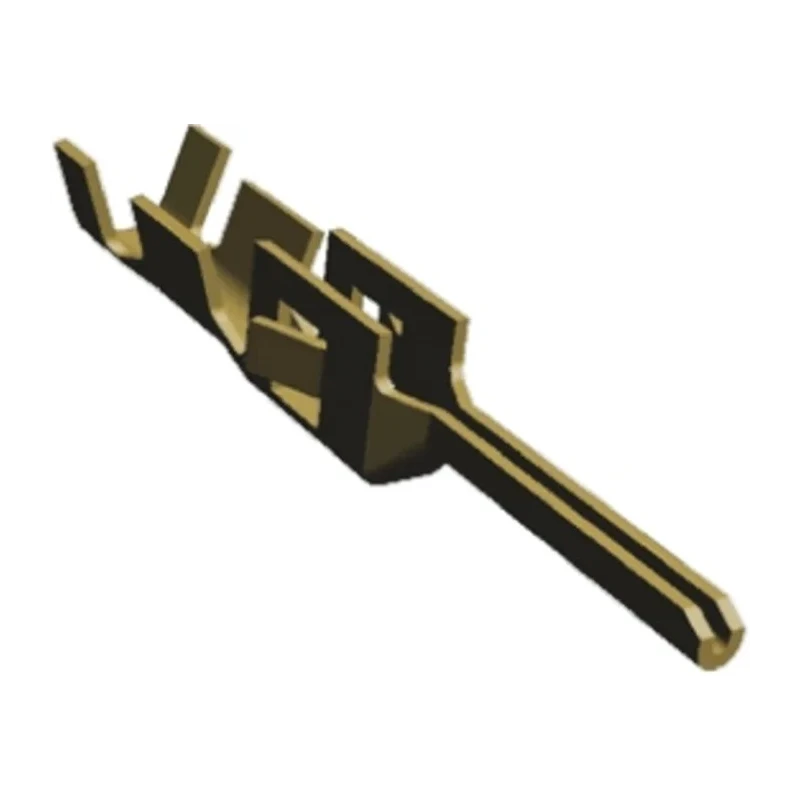

TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max 1-794612-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max 1-794612-2

Name: TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max 1-794612-2
Brand: TE Connectivity
SKU: 128302
Price: 0.3 USD
Availability: InStock



Category Crimp Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	5A
Gender	Male
Contact Material	Phosphor Bronze
Series	Micro MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Interfaces	lance mechanism for secure retention in housing
For Use With	Micro MATE-N-LOK Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	20mΩ

Key Features

Designed for use with Micro MATE-N-LOK connector housing for seamless integration.
Supports wire sizes from 24 AWG (0.2mm²) to 20 AWG (0.5mm²) providing flexibility.
Features a dual beam contact design ensuring excellent electrical reliability.
Gold plated phosphor bronze contact material resists corrosion and enhances conductivity.
Locking lance mechanism secures the terminal firmly in the connector housing.
Rated for a maximum current of 5A suitable for various power needs.
Operates reliably in temperatures ranging from -40°C to 105°C.
Termination is achieved via precise crimping for consistent performance.

Product Description

TE Connectivity 1-794612-2 Micro MATE-N-LOK Series Male Crimp Terminal is engineered for secure and reliable connections in wire-to-wire or wire-to-board systems. Compatible with Micro MATE-N-LOK connector housings, these crimp contacts enable efficient electrical connectivity in demanding industrial and electronic environments.

The terminal supports a wide wire size range from 24 AWG minimum to 20 AWG maximum, accommodating conductors from 0.2mm² to 0.5mm². Construction features phosphor bronze contact material with gold plating that ensures good conductivity and corrosion resistance for long service life. The dual beam contact design enhances electrical reliability, minimizing contact resistance measured at a maximum of 20mΩ.

A locking lance mechanism provides secure retention within the connector housing, preventing accidental disconnection. This terminal supports a maximum current of 5A and is rated for operation within a temperature range of -40°C to 105°C, allowing use in various industrial, electronic, and manufacturing applications.

The crimp termination type guarantees consistent electrical and mechanical connection quality suitable for use in communications equipment, consumer electronics, LED lighting assemblies, and industrial control systems. Despite lacking certifications, the product aligns with TE Connectivity's trusted engineering for high-quality connectors.

Reliable electrical performance via dual beam contact design. Secure connection assured by locking lance retention. Gold plated phosphor bronze ensures conductivity and corrosion resistance. Wide wire size compatibility from 24 AWG to 20 AWG.

Supports up to 5A current for diverse applications. Durable at operating temperatures from -40°C to 105°C. Crimp termination method provides consistent and secure wire attachment.

This product is ideal for manufacturers requiring dependable connector solutions in the electronics, telecommunications, and industrial control sectors. It fits seamlessly within the Micro MATE-N-LOK 3mm connector system widely used for wire to wire and wire to board connections.

Explore EnvMart's extensive collection for compatible Micro MATE-N-LOK components and related industrial electrical parts to enhance your project capability.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It supports a maximum current of 5A, making it suitable for various power needs.

This terminal accommodates wire sizes from 24 AWG (0.2mm²) to 20 AWG (0.5mm²), providing flexibility for different applications.

It operates reliably in temperatures ranging from -40°C to 105°C, allowing for use in diverse environments.

The contact material is phosphor bronze, which is gold plated to enhance conductivity and resist corrosion.

It features a locking lance mechanism that ensures the terminal is firmly secured in the connector housing, preventing accidental disconnection.

The maximum contact resistance is measured at 20mΩ, ensuring reliable electrical performance.

It uses a crimp termination method, which guarantees consistent electrical and mechanical connection quality.

Yes, it is designed for use in demanding industrial and electronic environments, making it suitable for various applications including communications equipment and industrial control systems.

This terminal is part of the Micro MATE-N-LOK series, which is widely used for wire-to-wire and wire-to-board connections.

The country of origin for this crimp terminal is India.

This terminal is a male crimp terminal, designed for specific connector housings in the Micro MATE-N-LOK series.

It is suitable for applications in telecommunications, consumer electronics, LED lighting assemblies, and industrial control systems.
