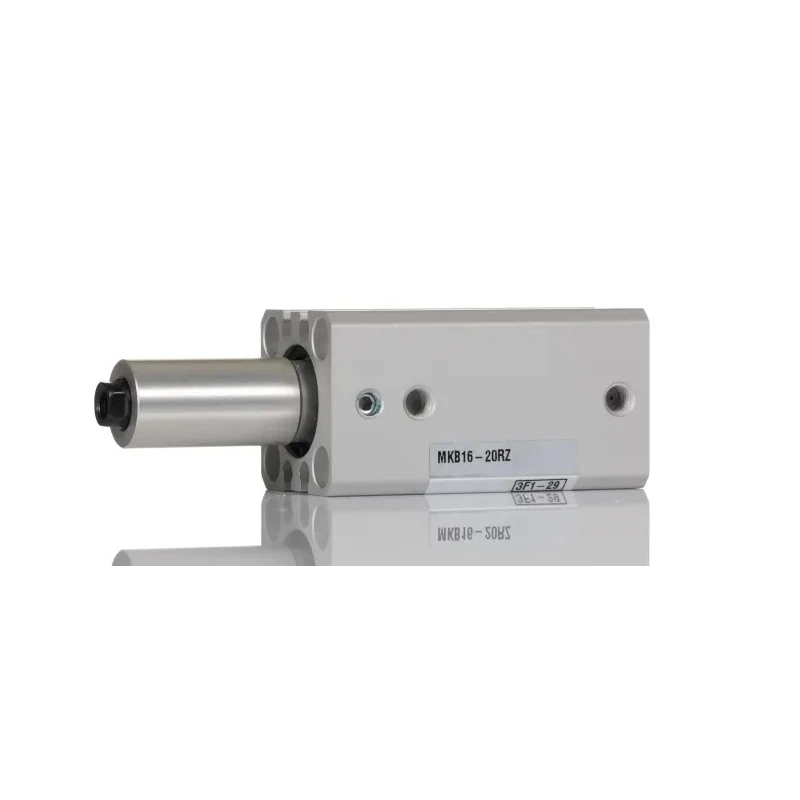

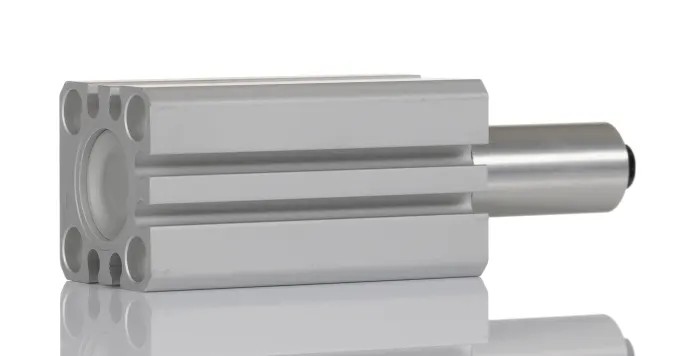

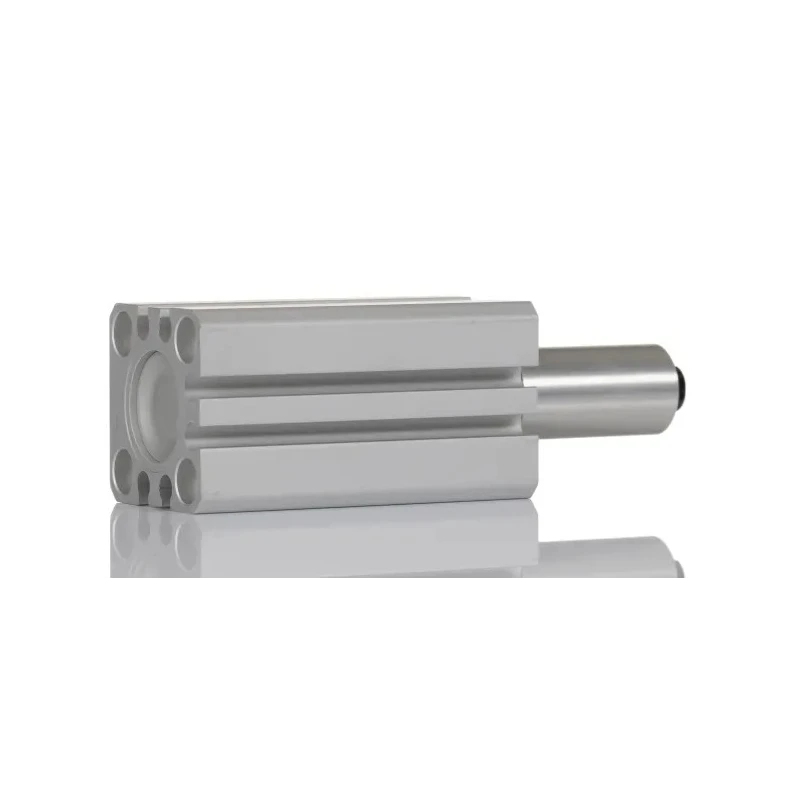

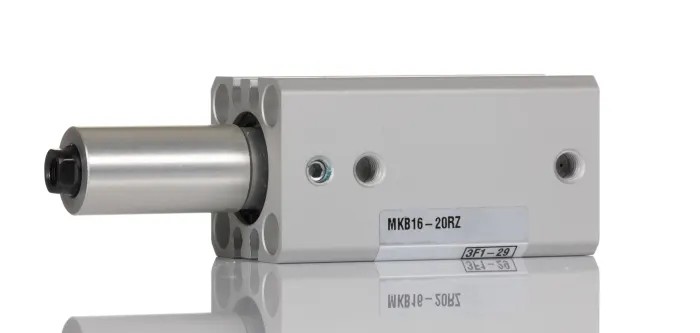

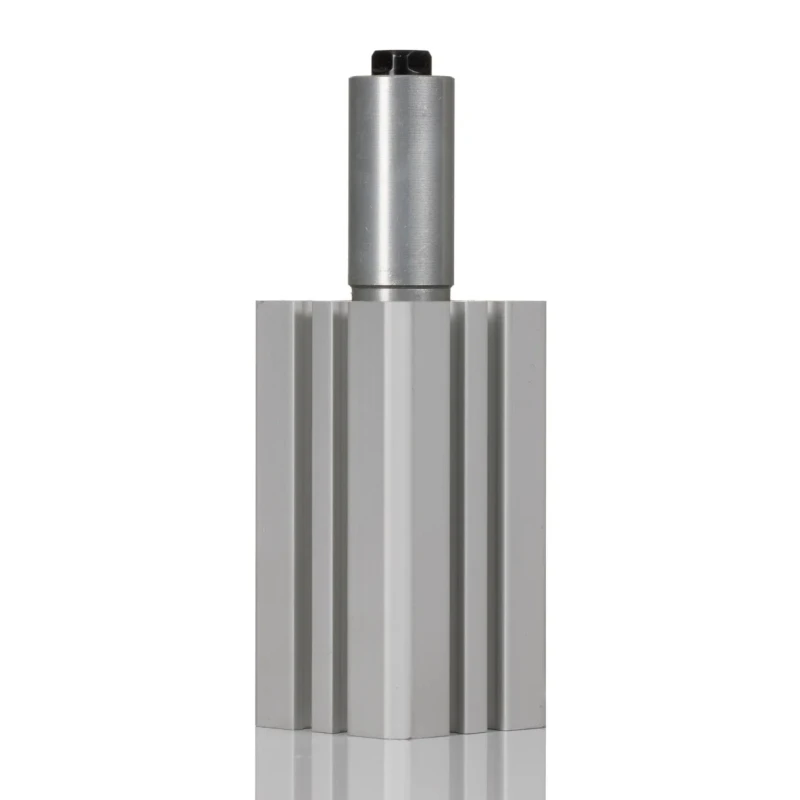

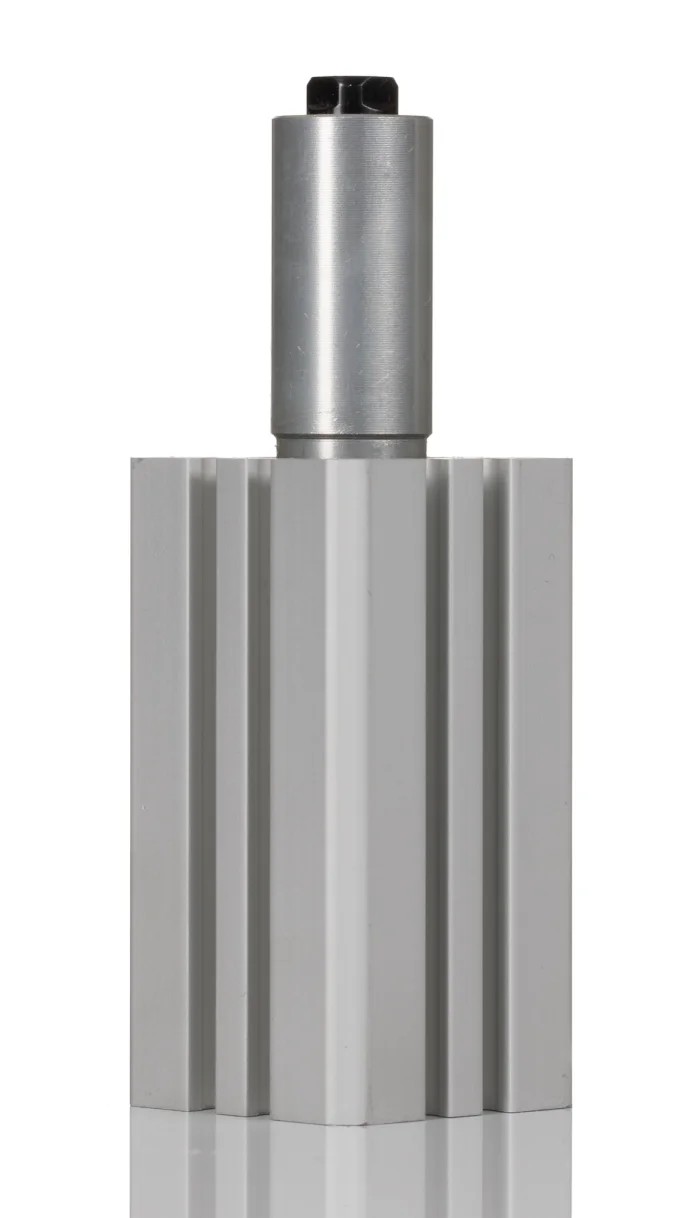

SMC Pneumatic Cylinder Bore 16mm Stroke 20mm Double Acting Through Hole Mount Aluminium Alloy Body MKB16-20RZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Temperature range | -10°C to +70°C |
| Model | MKB16-20RZ |
| Gross Weight | 123g |
| Mount Type | Through Hole |
| Pressure Range | 1 - 10bar, 15bar proof pressure |
| Series | MK |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 20mm |
| Bore Diameter | 16mm |
| Action Type | Double Acting |
| Cushioning Type | Rubber |
| Piston Rod Thread Size | M5 x 0.8 |
| Angle of Rotation | 90° |
| SMC Clamping Actuator MKB16-20RBrand | SMC |
| SMC Pneumatic Cylinder MKB16-20LZ MK 1 MpaBrand | SMC |
Key Features
- Operates with a maximum pressure of 1 Mpa, suitable for precision pneumatic control.
- Features a double-acting action with 90° rotation for effective clamping.
- Constructed from durable aluminium alloy with rubber cushioning for extended service life.
- Designed for through hole mounting with M5 x 0.8 piston rod thread size.
- Temperature operating range from -10°C to 60°C ensures reliability under varied conditions.
- Compact and lightweight design at 123 grams for ease of installation.
- Provides strong clamping force with end-of-stroke buffer for safe operation.
- Compatible with autoswitch sensors and supports left or right rotation configurations.
Product Description
SMC MKB16-20RZ pneumatic cylinder is an industrial-grade double-acting rotary clamp actuator designed to operate on lubricated, filtered compressed air. This compact cylinder features a bore diameter of 16mm and a 20mm stroke length, delivering robust performance with a maximum operating pressure of 1 Mpa. The piston rod rotates 90° during extension and retraction, facilitating precise clamping applications in manufacturing and automation settings.
The cylinder body is crafted from high-quality aluminium alloy, ensuring lightweight durability, complemented by rubber cushioning to absorb shocks and prolong service life. It supports through hole mounting and offers a piston rod thread size of M5 x 0.8, allowing secure mechanical integration in pneumatic systems.
Operating reliably within a temperature range of -10°C to 60°C, this device is suitable for diverse industrial environments including manufacturing, fluid power applications, and automation controls. The cylinder weighs just 123 grams, promoting easy installation and adaptability. The rotary clamp function provides a strong clamping force with an end-of-stroke buffer to enhance operational safety. Both left and right rotation options are available, increasing its utility in various configurations.
Autoswitch sensors are compatible with this model enabling enhanced control and monitoring capabilities. The product adheres to industry expectations for pneumatic cylinders without external certifications specified.
Operates at maximum 1 Mpa pressure for precise pneumatic control. Double-acting with 90° rotation optimizing clamping. Aluminium alloy body for resistance and lightweight design. Rubber cushioning protects against impact and wear.
Through hole mount type for versatile installation. Wide operating temperature range from -10°C to 60°C. Compact dimensions and lightweight at 123 grams. Compatible with autoswitch sensors for automated control.
This pneumatic cylinder is ideal for use in industrial pneumatic, laboratory, and manufacturing sectors requiring reliable rotary clamp actuators. Discover more Pneumatic Cylinders and actuators with precision engineering for advanced fluid power applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1 Mpa.
This pneumatic cylinder features a stroke length of 20mm.
The bore diameter of this model is 16mm.
It operates reliably within a temperature range of -10°C to 60°C.
This pneumatic cylinder is designed for through hole mounting.
The weight of this unit is 123 grams.
It features a double-acting action with a 90° rotation.
The piston rod thread size is M5 x 0.8.
Yes, this model is compatible with autoswitch sensors for enhanced control and monitoring capabilities.
The cylinder body is constructed from aluminium alloy, and it features rubber cushioning for shock absorption.
This pneumatic cylinder is suitable for applications in manufacturing, fluid power, and automation controls.
It provides a strong clamping force with an end-of-stroke buffer to enhance operational safety.
