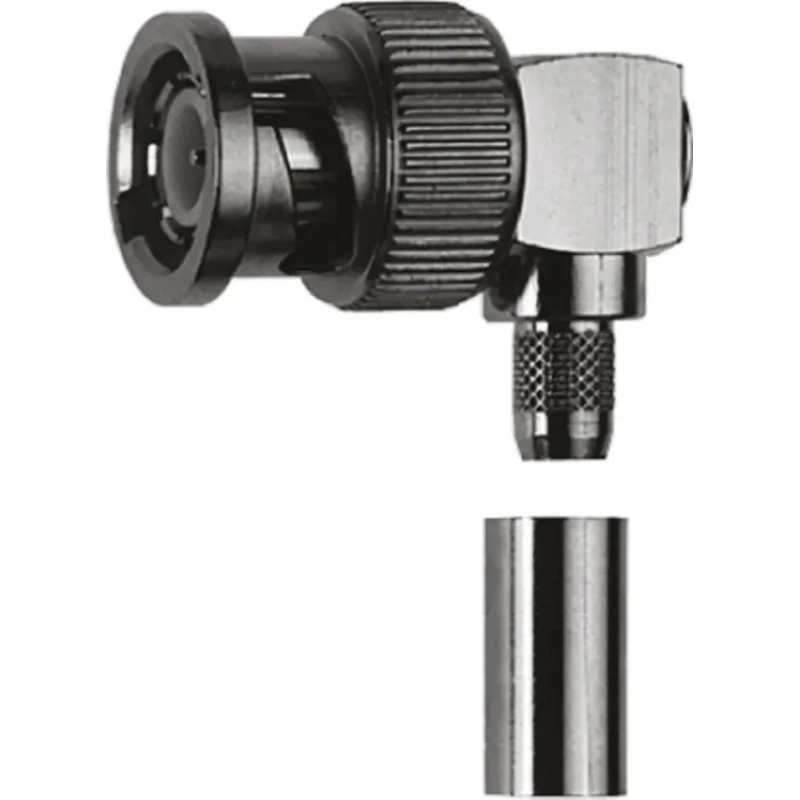

Telegartner BNC Series 75 Ω Coaxial Connector Cable Male Right Angle Crimp J01002A1356
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01002A1356 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG59B/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Copper Nickel Gold Alloy |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- This connector features a nickel-plated right angle body for durability and corrosion resistance.
- The contact is made of beryllium copper plated with a copper nickel gold alloy for excellent conductivity.
- It is designed for use with RG59B/U cable types.
- The connection uses a bayonet coupling mechanism to provide quick and reliable mating.
- It operates reliably in temperatures ranging from -65°C to 165°C.
- The standard size connector supports normal polarity and is not bulkhead mounted.
Product Description
Telegartner J01002A1356 is a high-quality BNC Series Coaxial Connector Cable designed for applications requiring secure and precise RF connections. This right angle male connector supports 75 Ω impedance which is ideal for signal, data, and video transmission.
Constructed with a nickel-plated body, it ensures strong resistance against wear and corrosion while maintaining signal integrity. The contacts within utilize beryllium copper, plated with copper nickel gold alloy, enhancing electrical performance and longevity.
Compatible with RG59B/U cable types, it is engineered for ease of use with a bayonet coupling mechanism, allowing rapid connect and disconnect with just a quarter turn. The connector's ability to handle frequencies up to 4 GHz makes it well-suited for industrial, laboratory, telecommunications, and broadcast applications.
This connector is suitable for use across a wide operating temperature range from -65°C up to 165°C, ensuring stability in harsh environments. Its standard size and normal polarity configuration provide compatibility with many existing systems. The product is manufactured in Germany, adhering to quality standards expected from Telegartner.
This BNC right angle cable mount connector simplifies installation in tight spaces. The crimp termination ensures a secure and durable connection to the cable. It is widely used in signal, data, and video transmission applications.
Ideal for industrial, telecommunications, and broadcast use cases. The bayonet coupling enhances quick mechanical mating and unmating.
This product expands EnvMart's range in high-performance RF connectors to meet demanding industrial and electronic component needs. Discover more Coaxial Connectors and accessories in our extensive Electronics & Electricals catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has an impedance of 75 Ω, making it suitable for signal, data, and video transmission applications.
It is designed for use with RG59B/U cable types, ensuring a secure connection when properly terminated.
The maximum operating temperature for this model is 165°C, allowing it to function effectively in high-temperature environments.
This connector operates at frequencies up to 4 GHz, making it suitable for various RF applications.
The connection uses a bayonet coupling mechanism, which allows for quick and reliable mating with just a quarter turn.
The body is nickel-plated for corrosion resistance, while the contacts are made of beryllium copper plated with a copper nickel gold alloy for enhanced conductivity.
This model features a right angle orientation, which is beneficial for installations in tight spaces.
This connector utilizes a crimp termination type, ensuring a secure and durable connection to the cable.
This model has a male contact gender, designed for connecting to compatible female connectors.
This product is manufactured in Germany, adhering to the quality standards expected from Telegartner.
It is classified as a standard size connector, which supports normal polarity and is not bulkhead mounted.
This BNC connector is suitable for industrial, telecommunications, and broadcast applications, where secure RF connections are required.
