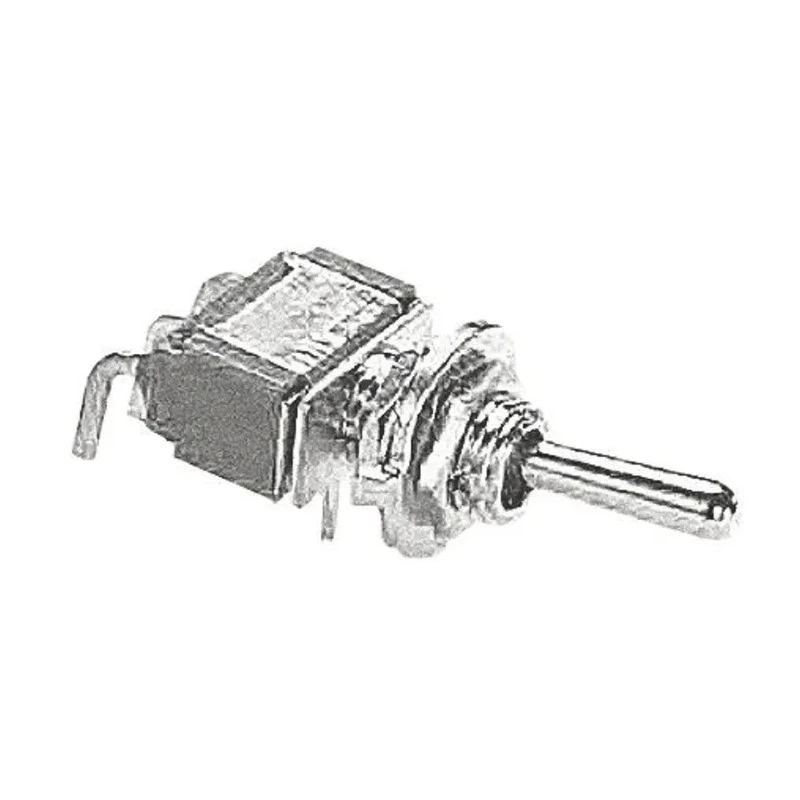

TE Connectivity Gemini A Series Toggle Switch PCB Mount On-On SPDT 28 V dc 115 V ac 4-1825136-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Gemini A Series Toggle Switch PCB Mount On-On SPDT 28 V dc 115 V ac 4-1825136-3

Name: TE Connectivity Gemini A Series Toggle Switch PCB Mount On-On SPDT 28 V dc 115 V ac 4-1825136-3
Brand: TE Connectivity
SKU: 127825
Price: 609.6 INR
Availability: InStock



Category Toggle Switch Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	0.35in
Length	0.5in
IP Rating	IP67
Width	0.27in
Mount Type	PCB
Series	Gemini A
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-30°C
Panel Cutout Size	6.35 mm
Terminal type	Through Hole
Standards/Approvals	RoHS
Switch Operation	On-On
Actuator Length	10.41mm
Contact DC Voltage	28V dc
Switch Contact Current	5A
Contact AC Voltage	115V ac
Actuator Material	Phenolic

Key Features

Features a Single Pole Double Throw (SPDT) contact configuration for versatile circuit control.
On-On switch operation with epoxy sealed terminals ensures durability.
Rated for 5A contact current at 28V DC and 115V AC for versatile electrical applications.
Mount type is PCB with through hole terminal for secure installation.
IP67 rating provides protection against dust and water ingress.
Actuator material made of phenolic with a length of 10.41 mm for precise control.
Compact size with height 0.35 in, length 0.5 in, and width 0.27 in.
Operating temperature range from -30°C to 85°C suitable for demanding environments.

Product Description

TE Connectivity 4-1825136-3 Gemini A Series Toggle Switch is designed for PCB mount with an On-On SPDT switch configuration, ideal for industrial and electronic applications requiring reliable circuit control. It supports a contact current of 5A, operates at 28 V dc and 115 V ac, and features epoxy sealed terminals for enhanced durability and protection against environmental factors.

This toggle switch is IP67 rated, providing excellent resistance against dust and water immersion, making it suitable for harsh industrial, automation, and electrical systems. The actuator material is phenolic, offering durability under frequent use, with a compact form factor measuring 0.35 inches in height, 0.5 inches in length, and 0.27 inches in width. The actuator length is 10.41 mm for efficient manual operation.

The switch operates reliably between a temperature range of -30°C to 85°C, catering to diverse working conditions. It complies with RoHS standards for environmental safety and sustainability.

Its through-hole terminal type ensures secure mounting on PCBs in manufacturing and assembly processes, facilitating easy integration into complex control circuits. Single Pole Double Throw (SPDT) configuration for versatile circuit switching.

On-On switch operation for break-before-make contact timing. 5A current rating ensures compatibility with various electrical loads. PCB mounting with through-hole terminals for firm mechanical and electrical connections.

IP67 ingress protection rating suitable for demanding environments. Phenolic actuator material contributes to mechanical robustness. Compact dimensions support integration in space-constrained designs. Wide operating temperature range supports industrial applications.

RoHS compliant for environmentally friendly usage.

This toggle switch is widely used in electronics manufacturing, industrial automation, control panels, HVAC systems, and other applications requiring reliable manual switching. Its robust design and high ingress protection rating make it suitable for harsh working environments.
