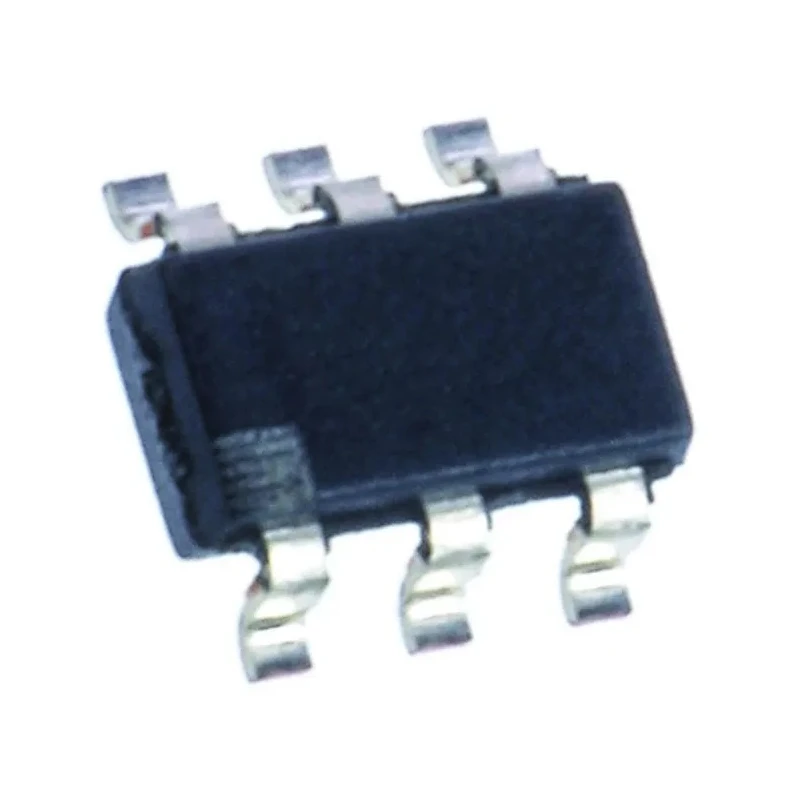

Texas Instruments 4-Element Uni-Directional TVS Diode Array 6-Pin SOT-553 TPD4E001DRLR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.55mm |
| Length | 1.6mm |
| Model | TPD4E001DRLR |
| Width | 1.2mm |
| Mount Type | Surface |
| Series | TPD4E001 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-553 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 4 |
| Clamping Voltage VC | 17V |
| Automotive Standard | AEC-Q100 |
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 11V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Maximum Peak Pulse Current Ippm | 5.5A |
| Maximum Reverse Leakage Current | 1nA |
| Electrostatic Discharge (ESD) prtotection for | DVI, HDMI, IEEE1394, USB, Ethernet & video lines |
Key Features
- Designed with a complex diode array configuration for advanced protection.
- Uni-directional design suitable for transient voltage suppression on data lines.
- Surface mount type with compact 6-pin SOT-553 package for space-saving assembly.
- Minimum breakdown voltage of 11 volts and clamping voltage of 17 volts provide effective surge protection.
- Low maximum reverse leakage current of 1 nanoampere ensures minimal power loss.
- Operates reliably from -40°C to 85°C temperature range for robust environmental performance.
- Complies with automotive standard AEC-Q100 and IEC61000-4-2 level 4 for electrostatic discharge protection.
- Ideal for protecting interfaces like DVI, HDMI, IEEE1394, USB, Ethernet, and video lines.
Product Description
Texas Instruments TPD4E001DRLR is a 4-element uni-directional transient voltage suppressor (TVS) diode array designed to safeguard sensitive data lines in electronic circuits from electrostatic discharge (ESD) and transient voltage spikes. Packaged in a compact 6-pin SOT-553 surface mount package, this diode array delivers reliable protection in a small form factor.
This device features a complex diode configuration optimized for transient suppression and has a minimum breakdown voltage of 11 V, with a clamping voltage rated at 17 V, effectively limiting transient voltages to safe levels. It supports a maximum peak pulse current of 5.5 A ensuring protection against severe voltage surges.
The TPD4E001DRLR operates over a wide temperature range from -40°C to +85°C, making it suitable for automotive and industrial applications. It meets the AEC-Q100 automotive quality standard and complies with IEC61000-4-2 Level 4 for ESD robustness, making it ideal for protecting interfaces such as DVI, HDMI, IEEE1394, USB, Ethernet, and video lines.
Its ultra-low capacitance design minimizes signal distortion, crucial for high-speed data communication lines. The robust construction and low reverse leakage current of 1 nA ensure energy efficiencies and long-term reliability in demanding environments.
Complex diode array configuration optimizes transient voltage suppression performance. Uni-directional design for effective surge protection on data signals. Compact surface mount SOT-553 package supports space-constrained PCB layouts.
Meets stringent automotive standard AEC-Q100 and IEC ESD protection requirements. Wide operating temperature range from -40°C to 85°C ensures versatility. Low leakage current minimizes power consumption during operation.
High peak pulse current rating handles severe transient events reliably.
This TVS Diode Array is an essential component for safeguarding sensitive electronics in industrial, automotive, communication, and consumer applications by providing robust ESD and transient voltage protection. Its small size and high-performance features make it suitable for modern compact electronic devices requiring high data integrity and longevity.
Explore Texas Instruments components and related semiconductor products in the EnvMart catalog for high-quality, reliable electronic protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 11 volts.
The clamping voltage is rated at 17 volts.
It can handle a maximum peak pulse current of 5.5 A.
This model operates reliably within a temperature range of -40°C to +85°C.
It is packaged in a compact 6-pin SOT-553 surface mount package.
It complies with the AEC-Q100 automotive quality standard.
It is designed to protect interfaces such as DVI, HDMI, IEEE1394, USB, Ethernet, and video lines.
This diode array features 4 elements per chip.
The height is 0.55 mm and the width is 1.2 mm.
It features a complex diode array configuration optimized for transient suppression.
