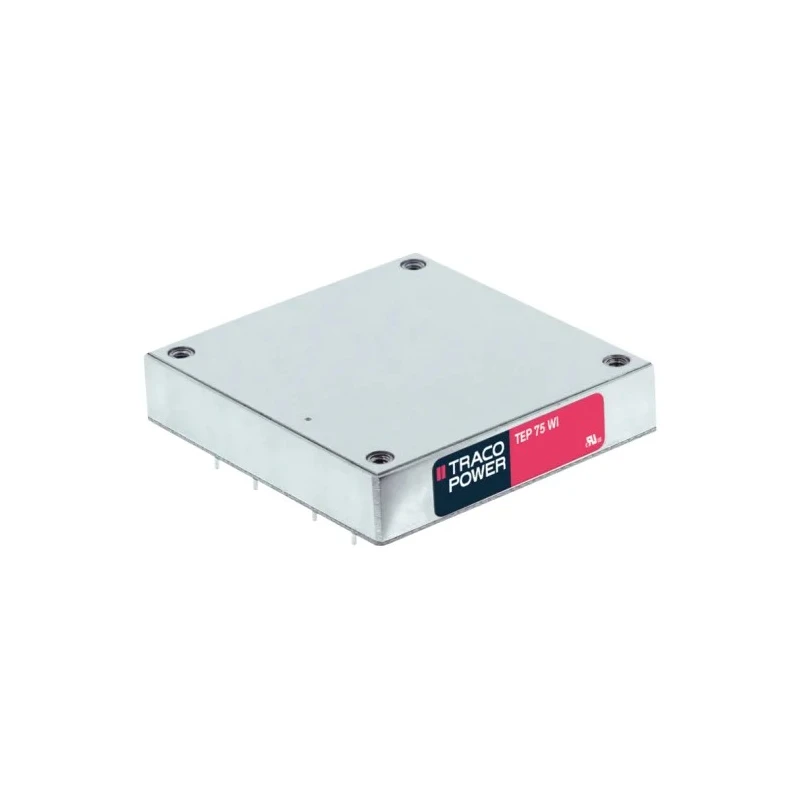

TRACOPOWER DC/DC Converter 15V 5A 36V Input 9V Input 75W Metal Case Through Hole 9-Pin TEP 75-2413WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER DC/DC Converter, 15V/ 5 A, 36V Input, 9 |
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 61mm |
| Model | TEP 75-2413WI |
| Depth | 12.7mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 75°C |
| Package Type | Metal case |
| Minimum Operating Temperature | -40°C |
| MTBF | 336000h |
| Number of outputs | 5 |
| Maximum Output Power | 75W |
| Maximum Input Voltage | 36V |
| Minimum Input Voltage | 9V |
| Number of Pins | 9 |
| Output Voltage 1 | 15V |
| Output Current 1 | 5A |
| Isolation Voltage | 2.25kV |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Ultra wide 4 | 1 input voltage range |
| TEP 75-24xx | see stock number 745-1228 (L1) and (L2) |
| TEP 75-48xx | see stock number 745-1212 (L1) and stock number 745-1225 (L2) |
Key Features
- Provides output voltage adjustment range from -20% to +10% for voltage fine-tuning.
- Built for high efficiency of 88% ensuring reduced energy loss.
- Operates reliably between -40°C minimum and 75°C maximum ambient temperatures.
- Offers 2.25kV isolation voltage for safety and interference resistance.
- Has a mean time between failures (MTBF) of 336000 hours indicating high reliability.
- Metal case design includes 9 pins and measures 61mm length by 12.7mm depth.
- Supports remote On/Off control and protection features including over-temperature, over-voltage, and short circuit safeguards.
- Suitable for industrial, manufacturing, telecommunications, and laboratory power conversion needs.
Product Description
TRACOPOWER TEP 75-2413WI is a high-performance, single output, regulated, isolated DC/DC converter module designed for demanding applications requiring stable 15V output at 5A current.
It supports a wide input voltage range from 9V to 36V with an ultra-wide 4:1 input ratio enabling operation from diverse DC power sources.
The robust metal case with through-hole mounting and 9-pin layout ensures ease of integration on PCBs and effective heat dissipation. The product delivers up to 75W output power with an 88% efficiency rating.
With operating temperature range from -40°C to +75°C, this converter performs reliably under harsh environmental conditions. It includes built-in protection functions such as under voltage lockout, output current limitation, reverse input polarity protection, and over-temperature shut down, improving overall system safety.
The 2.25kV isolation voltage ensures resistance to electrical noise and safe use in industrial and commercial power configurations. The product has a long mean time between failures (MTBF) of 336,000 hours underscoring its durability and quality.
Output Voltage Adjustment Range: -20% to +10%. Remote On/Off Control for enhanced operational flexibility. Soft start capability to minimize inrush current. High efficiency reduces thermal dissipation requirements. Wide temperature operation for industrial environments.
Ideal applications include industrial automation systems, telecommunications power supplies, laboratory instrumentation, and embedded power solutions. This DC/DC converter is made in Taiwan, Province Of China, and conforms to established safety standards without additional certifications.
Explore more TRACOPOWER DC/DC Converters and power supply solutions at EnvMart for your industrial and electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 15V and can deliver a maximum output current of 5A.
It supports a wide input voltage range from 9V to 36V, allowing operation from diverse DC power sources.
The converter operates with an efficiency of 88%, which helps reduce energy loss during operation.
This unit has a length of 61mm and a depth of 12.7mm, making it suitable for various applications.
It operates reliably in ambient temperatures ranging from -40°C to 75°C.
The TEP 75-2413WI offers an isolation voltage of 2.25kV, ensuring resistance to electrical noise.
It includes over-temperature, over-voltage, and short circuit protection, enhancing overall system safety.
The output voltage can be fine-tuned within an adjustment range of -20% to +10%.
The mean time between failures (MTBF) is 336,000 hours, indicating high reliability.
It features a through-hole mounting type, which facilitates easy integration onto PCBs.
This converter is suitable for industrial automation systems, telecommunications power supplies, and laboratory instrumentation.
The converter is housed in a robust metal case, which aids in effective heat dissipation.
