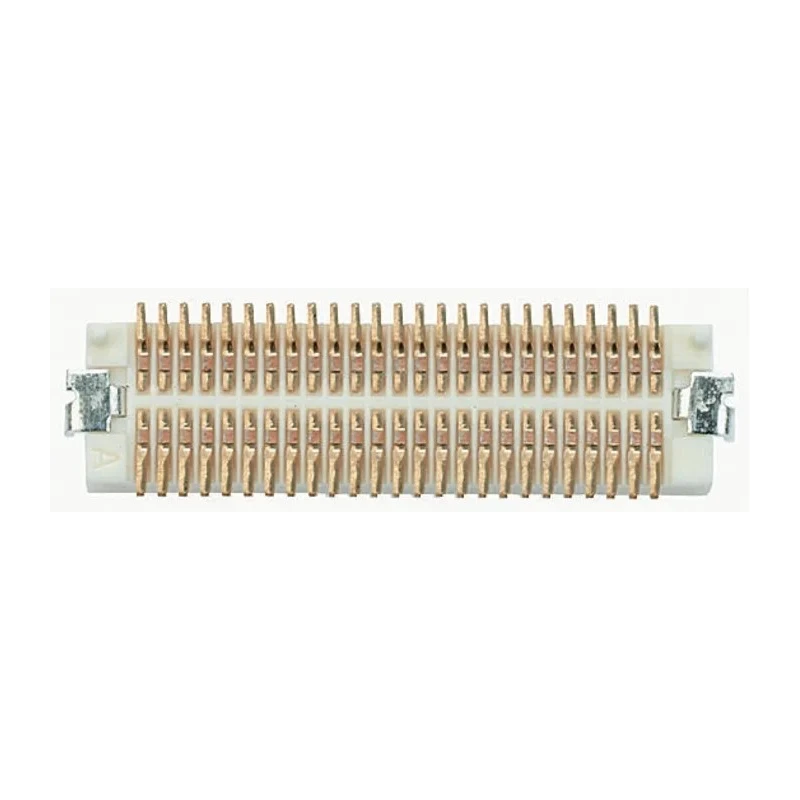

Hirose DF12 Series Straight Surface PCB Header 50 Contacts 0.5 mm Pitch 2 Row Shrouded DF12
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | DF12 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- The connector supports up to 300mA current capacity for reliable signal transmission.
- Constructed with polyamide housing and gold-plated copper alloy contacts for durability and optimal conductivity.
- It features a surface mount type and solder termination for easy PCB assembly.
- Operates in a temperature range from -40°C to 125°C suitable for industrial environments.
- The male contact gender and shrouded design provide secure mating and protection from damage.
- Designed for ultra-miniature double-row pin header configurations with 0.5mm row pitch.
- Ideal for mobile phone, LCD, notebook PC, and other compact electronic device applications.
Product Description
Hirose DF12 Series straight surface PCB header, model DF12, comprises 50 contacts with a 0.5 mm contact pitch arranged in two rows and shrouded for mechanical protection. This board-to-board connector provides a reliable connection solution featuring polyamide housing and gold-plated copper alloy contacts.
Rated for a current of 300mA and voltage of 50V, it supports robust signal integrity within industrial operating temperatures from -40°C up to 125°C. The surface mount solder termination ensures secure PCB assembly with minimal footprint. The connector's male contact gender and shrouded design enhance durability and prevent contact damage.
Available stacking heights range from 3.0 mm to 5.0 mm depending on specific series variants; the DF12E(3.5) prefix indicates a typical stacking height of 3.5 mm. This connector series fits ultra-miniature double-row pin header applications, supporting compact electronics including mobile phones, LCDs, and notebook PCs.
The polyamide body meets UL94V-0 flammability standard, ensuring safety and reliability in demanding environments. The gold plating on contacts offers corrosion resistance and low contact resistance, critical for signal fidelity.
The connector supports up to 300mA current capacity for reliable signal transmission. Constructed with polyamide housing and gold-plated copper alloy contacts for durability and optimal conductivity. It features a surface mount type and solder termination for easy PCB assembly.
Operates in a temperature range from -40°C to 125°C suitable for industrial environments. The male contact gender and shrouded design provide secure mating and protection from damage. Designed for ultra-miniature double-row pin header configurations with 0.5mm row pitch.
Ideal for mobile phone, LCD, notebook PC, and other compact electronic device applications. This Hirose DF12 Series PCB Header is an excellent choice for high-density electronic connector applications where board-to-board connection and compact size are critical.
Explore our extensive catalog of precision PCB connectors and electronic components at EnvMart for all your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of up to 300mA, ensuring reliable signal transmission.
The voltage rating for this connector is 50V.
It operates within a temperature range of -40°C to 125°C, suitable for industrial environments.
The housing is made of polyamide, and the contacts are constructed from gold-plated copper alloy for optimal conductivity.
This connector features 50 contacts arranged in two rows with a 0.5mm pitch.
It utilizes a solder termination type, facilitating easy PCB assembly.
The DF12 model is shrouded, providing mechanical protection and secure mating.
The orientation of this connector is straight.
The male contact gender enhances durability and provides secure mating, preventing contact damage.
It is ideal for compact electronic devices such as mobile phones, LCDs, and notebook PCs.
Available stacking heights range from 3.0 mm to 5.0 mm, depending on specific series variants.
The polyamide body meets the UL94V-0 flammability standard, ensuring safety in demanding environments.
