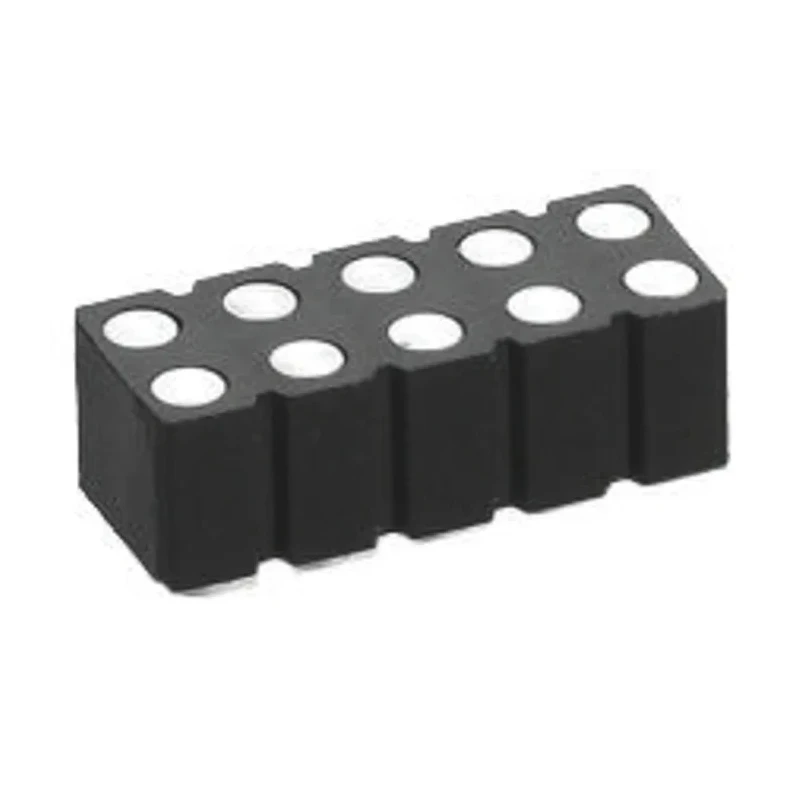

Preci-Dip 802 Series Straight Surface PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 802-10-010-30-507101

Preci-Dip 802-10-010-30-507101 Straight Surface PCB Header is a high-quality electronic component designed for secure and reliable connectivity on printed circuit boards. It features 10 male contacts arranged in 2 rows with a 2.54 mm pitch, ensuring stable signals and efficient power transmission in electronic assemblies.

This PCB header is surface-mounted, facilitating easy integration into surface mount technology (SMT) workflows commonly used in modern electronics manufacturing. The contacts are made of brass with gold plating to provide excellent conductivity, reduce oxidation, and maintain long-term electrical performance under various environmental conditions.

The housing is made from fibreglass reinforced polyethylene terephthalate, offering mechanical strength, electrical insulation, and resistance to elevated temperatures. This product operates reliably across a broad temperature range from -55°C minimum to 125°C maximum, enabling use in industrial, laboratory, commercial, and other precision electronics applications.

The shrouded design of the header provides protection to the contacts against physical damage and short circuits, improving the durability and safety of the electronic assemblies. The component complies with UL 94V-0 flame retardant standards, making it suitable for stringent safety requirements.

Maintains excellent electrical contact with 3.5A current rating. Constructed with brass contact material and gold plating for corrosion resistance. Fibreglass reinforced polyethylene terephthalate housing ensures durability and high temperature resistance.

Surface mount type with two rows oriented straight for ease of PCB assembly. Operates reliably between -55°C and 125°C. Designed for 150V voltage rating ensuring safe operation in typical PCB applications. Shrouded male contacts provide protection against accidental shorts and mechanical damage.

Complies with UL 94V-0 flammability standard for enhanced safety. Produced in Switzerland, guaranteeing high manufacturing quality.

This PCB header is ideal for precision electronic assemblies in industrial controls, telecommunications, computing hardware, and instrumentation. It contributes to improved production efficiency by ensuring packaged components are ready for quick insertion into machinery during PCB assembly processes.
