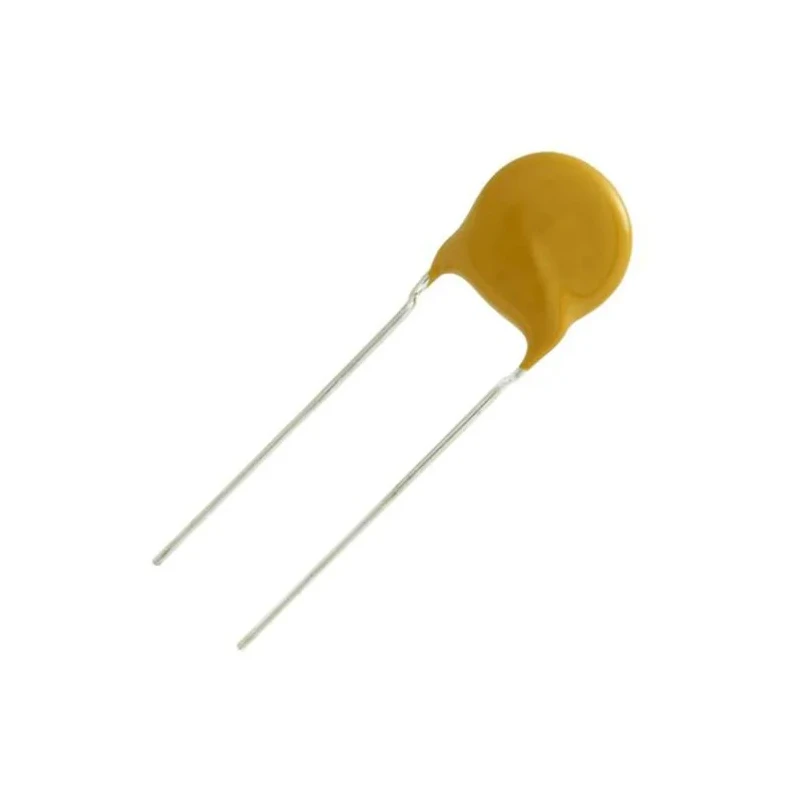

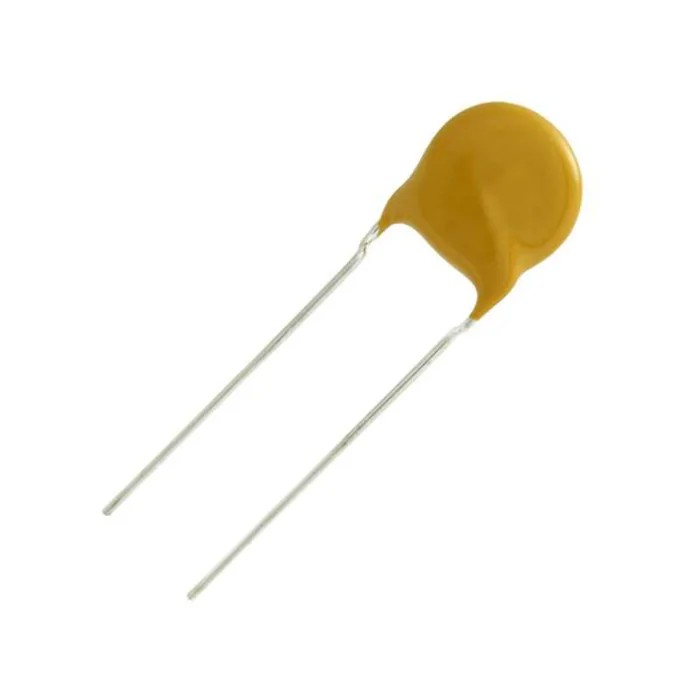

Vishay Single Layer Ceramic Capacitor 5.6 pF 1kV ±5% C0G Dielectric Through Hole Radial Terminal 561R10TCCV56
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Diameter | 6.4mm |
| Brand | Vishay |
| Model | 561R10TCCV56 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | 561R |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 5.6pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Pin Count | 2 |
| Dielectric | C0G |
| Suppression Class | Class I |
Key Features
- Features C0G dielectric ensuring stable electrical properties.
- Designed for through-hole mounting with radial terminal type.
- Rated for maximum operating temperature of 105°C for durability.
- Has a diameter of 6.4 mm and a width of 4 mm for compact PCB integration.
- Pin count of 2 suitable for standard electronic applications.
- Compliance with RoHS and IEC 61249-2-21 standards for environmental safety.
- Suppression Class I capacitor suitable for noise reduction applications.
- Minimum operating temperature of -55°C for wide range use.
Product Description
Vishay 561R10TCCV56 Single Layer Ceramic Capacitor is a highly reliable electronic component designed for precise capacitance requirements of 5.6 pF at a voltage rating of 1 kV. Featuring a C0G dielectric, this capacitor provides excellent electrical stability and minimal capacitance change over temperature, making it ideal for precision applications.
Designed for through-hole mounting, the capacitor includes radial terminals facilitating easy insertion and soldering on printed circuit boards. It operates safely within a temperature range of -55°C to 105°C, allowing usage in various industrial, commercial, and laboratory electronics projects.
The component measures 6.4 mm in diameter and 4 mm in width, providing a compact form factor compliant with modern electronic assembly practices. It has 2 pins and belongs to Suppression Class I, offering effective EMI noise suppression.
Manufactured under stringent quality standards including 2002/95/EC and IEC 61249-2-21 as well as RoHS compliance, this capacitor ensures both performance and environmental responsibility. The series 561R capacitors are supplied in tape and reel packaging, supporting automated manufacturing processes and minimizing handling errors.
Features C0G dielectric ensuring stable electrical properties. Designed for through-hole mounting with radial terminal type. Rated for maximum operating temperature of 105°C for durability. Compact size of 6.4 mm diameter and 4 mm width suits most PCB layouts.
Pin count of 2 for standard electronic connections. Complies with RoHS and IEC standards for safety and environment. Suppression Class I capacitor suitable for EMI noise reduction. Wide operating temperature range from -55°C to 105°C.
Packaging in tape and reel facilitates automated assembly.
This capacitor is suitable for applications in electronic devices requiring precise capacitance with high voltage tolerance and environmental stability, including industrial automation, instrumentation, communications, aerospace, and automotive electronic circuits.
Explore more electronic components and Single Layer Ceramic Capacitors at EnvMart to find the ideal fit for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay 561R10TCCV56 has a capacitance value of 5.6 pF.
This capacitor is rated for a maximum voltage of 1 kV.
It features a C0G dielectric, which ensures stable electrical properties and minimal capacitance change over temperature.
The capacitor has a diameter of 6.4 mm and a width of 4 mm, making it suitable for compact PCB integration.
This model has a pin count of 2, which is standard for electronic connections.
It operates within a temperature range of -55°C to 105°C, allowing for versatile applications in various environments.
The Vishay 561R10TCCV56 is supplied in tape and reel packaging, which supports automated manufacturing processes.
This capacitor is designed for through-hole mounting with radial terminals, facilitating easy insertion and soldering on PCBs.
It complies with RoHS and IEC 61249-2-21 standards for environmental safety.
This model is classified as a Suppression Class I capacitor, suitable for EMI noise reduction applications.
This capacitor is suitable for use in industrial automation, instrumentation, communications, aerospace, and automotive electronic circuits.
The capacitor has a tolerance of ±5%.
