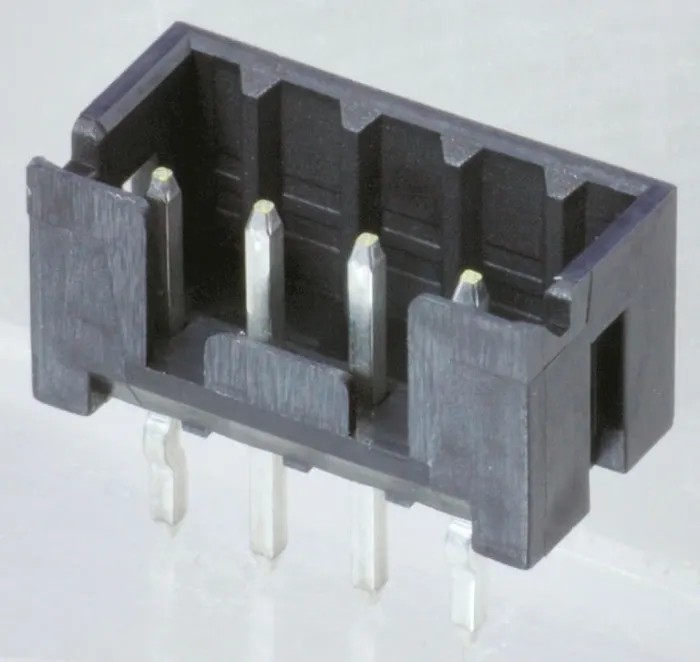

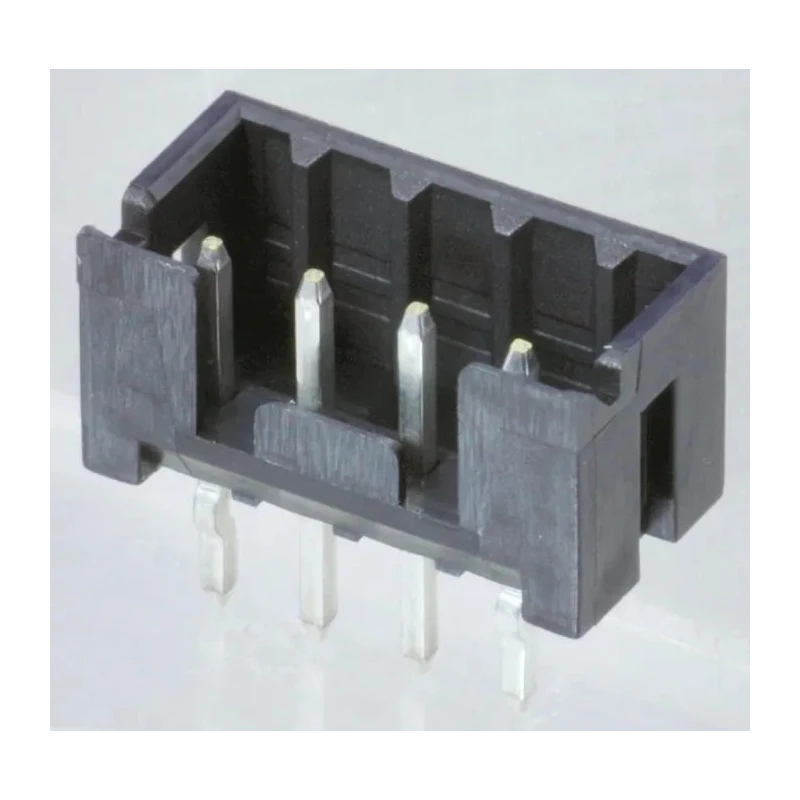

Hirose DF3 Series Straight Through Hole PCB Header, 6 Contact(s), 2 mm Pitch, 1 Row, Shrouded DF3A-6P-2DSA
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 3A |
| Model | DF3A-6P-2DSA |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- The 6-contact configuration supports board-to-board and wire-to-board connections.
- Shrouded polyamide housing ensures durability and protection during operation.
- Designed for through-hole mounting with straight orientation and a single row layout.
- Copper alloy male contacts with tin plating provide excellent conductivity and solder termination.
- Rated for 250 V voltage and 3 A current, suitable for various industrial electronics applications.
- Operates reliably within a temperature range from -30°C to 85°C.
- Compact 2 mm pitch and 2 mm row pitch optimize PCB space usage.
- Manufactured in Japan, ensuring consistent quality and performance.
Product Description
Hirose DF3A-6P-2DSA is a high-quality PCB header connector of the DF3 series, featuring a 2 mm pitch and 6 male contacts arranged in a single row. The connector is shrouded and designed for straight orientation, suitable for through-hole mounting on printed circuit boards.
Constructed with a polyamide housing and copper alloy contacts plated with tin, it ensures durability and effective conductivity. The connector supports board-to-board and wire-to-board systems, providing versatility for many industrial and commercial electronic assembly needs.
This PCB header is rated to handle up to 3 A current and 250 V voltage, making it ideal for use in control, instrumentation, and other electronic devices where reliable connectivity is critical.
Its operating temperature range from -30°C to 85°C enables deployment in various environments including industrial manufacturing and HVAC systems. The 2 mm pitch and 2 mm row pitch allow compact and efficient PCB layouts.
The 6-contact configuration supports board-to-board and wire-to-board connections. Shrouded polyamide housing provides durability and protects contacts. Straight orientation with through-hole mount suits PCB assembly processes.
Copper alloy contacts with tin plating allow secure solder termination. Rated at 250 V and 3 A current for industrial electronic applications. Wide operating temperature range from -30°C to 85°C ensures reliability. Manufactured in Japan to high quality standards.
This Hirose PCB Header DF3A-6P-2DSA is an essential component in electronic manufacturing, industrial automation, and electrical equipment production. Its robust design and mounting flexibility make it suitable for a wide range of commercial and industrial use cases.
Explore more connectors and electronic components for your projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 250 V voltage and 3 A current, making it suitable for various industrial electronics applications.
The connector features a compact 2 mm pitch, which helps optimize PCB space usage.
It is designed for through-hole mounting, which is suitable for printed circuit board assembly processes.
The housing is made of polyamide, while the contacts are made of copper alloy with tin plating, ensuring effective conductivity and durability.
It operates reliably within a temperature range from -30°C to 85°C, allowing for deployment in various environments.
This model features 6 male contacts arranged in a single row, supporting both board-to-board and wire-to-board connections.
The connector uses solder termination, which provides a secure connection for electronic assemblies.
The DF3A-6P-2DSA is a shrouded connector, which helps protect the contacts during operation.
It supports both board-to-board and wire-to-board systems, providing versatility for various applications.
The connector is designed for straight orientation, which facilitates easy installation on printed circuit boards.
This PCB header is manufactured in Japan, ensuring consistent quality and performance.
It belongs to the DF3 series, which is known for its reliable and versatile PCB header connectors.
