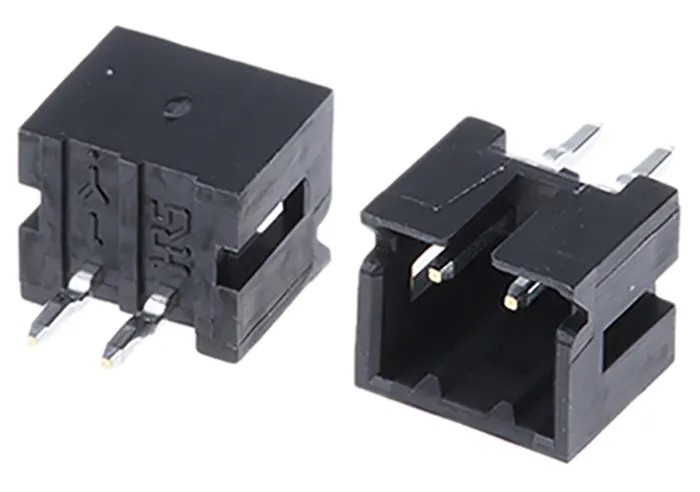

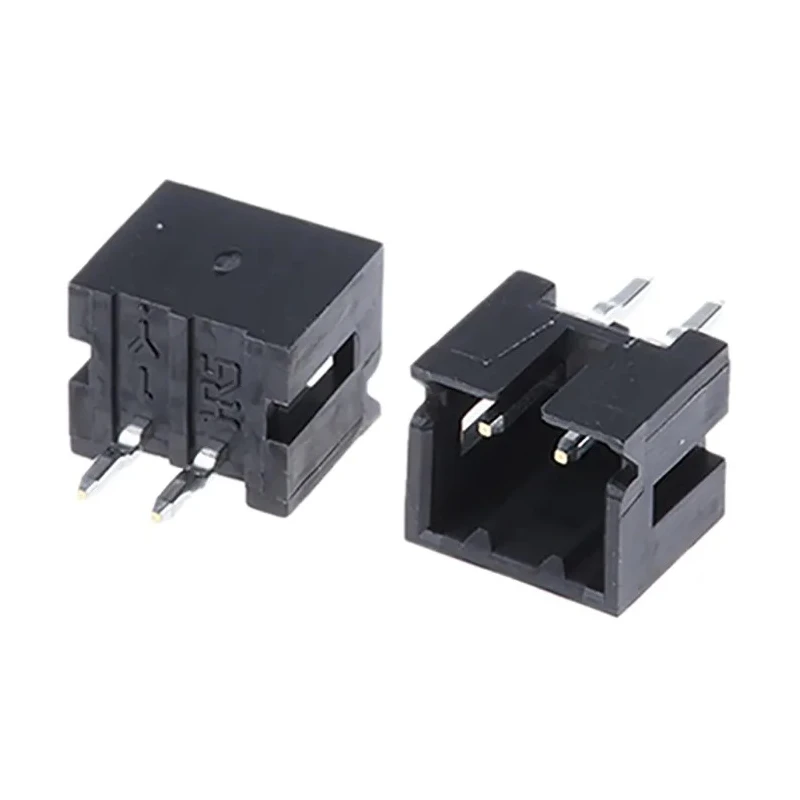

Hirose DF3 Series Straight Through Hole PCB Header, 2 Contact, 2 mm Pitch, 1 Row, Shrouded DF3A-2P-2DSA
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 3A |
| Model | DF3A-2P-2DSA |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Features 2 contacts with a 2 mm pitch for precise PCB mounting.
- Constructed with polyamide housing for durability and insulation.
- Supports a maximum current of 3A and voltage up to 250V.
- Designed for through-hole mount with a straight orientation.
- Contacts are made of copper alloy with tin plating for reliable conductivity.
- Operates within a temperature range of -30°C to 85°C.
- Male contact gender with solder termination type ensures secure soldering.
- Suitable for board-to-board and wire-to-board connector systems.
Product Description
Hirose DF3A-2P-2DSA is a high-quality PCB header connector from the DF3 series designed with a 2 mm pitch and 2 contacts arranged in a single row. This through-hole mounted PCB header features a shrouded design which reinforces secure mating and prevents accidental disconnections. The polyamide housing material provides robustness and excellent electrical insulation, ensuring long-term reliability.
It supports a current rating of 3 amperes and a voltage rating of up to 250 volts, making it suitable for a wide range of electronic applications. The contacts are composed of a copper alloy finished with tin plating, offering effective conductivity and corrosion resistance. This connector is intended for straight orientation mounting, facilitating ease of installation on PCBs.
Operating temperature specifications range from a minimum of -30°C to a maximum of 85°C allowing functionality in varied environmental conditions. The termination type is solder, and the contact gender is male, which is ideal for reliable soldering and connection.
This PCB header connector is suitable for both board-to-board and wire-to-board connection systems, offering versatility for various electronic designs and assemblies in industrial, manufacturing, and electronics sectors.
Features 2 contacts with a 2 mm pitch for precise PCB mounting. Constructed with polyamide housing for durability and insulation. Supports a maximum current of 3A and voltage up to 250V. Designed for through-hole mount with a straight orientation.
Contacts are made of copper alloy with tin plating for reliable conductivity. Operates within a temperature range of -30°C to 85°C. Male contact gender with solder termination type ensures secure soldering. Suitable for board-to-board and wire-to-board connector systems.
Used extensively in electronic component assemblies, printed circuit board designs, and electrical devices, the Hirose DF3 Series PCB Headers provide dependable mechanical and electrical performance. Ideal for applications in electronic manufacturing, instrumentation, and communication equipment.
Explore wide selections of similar PCB connectors and related electronic components within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose DF3A-2P-2DSA PCB header supports a maximum voltage of 250V.
This model can handle a maximum current of 3A.
The contacts of this PCB header are spaced at a pitch of 2 mm.
The housing is made of polyamide, while the contacts are composed of copper alloy with tin plating.
It operates within a temperature range of -30°C to 85°C.
The termination type for this model is solder, ensuring a secure connection.
This connector is designed for through-hole mounting with a straight orientation.
The contact gender of this PCB header is male.
It is suitable for both board-to-board and wire-to-board connector systems.
The Hirose DF3A-2P-2DSA features 2 contacts arranged in a single row.
The country of origin for this PCB header is Japan.
This model is part of the DF3 series of PCB headers.
