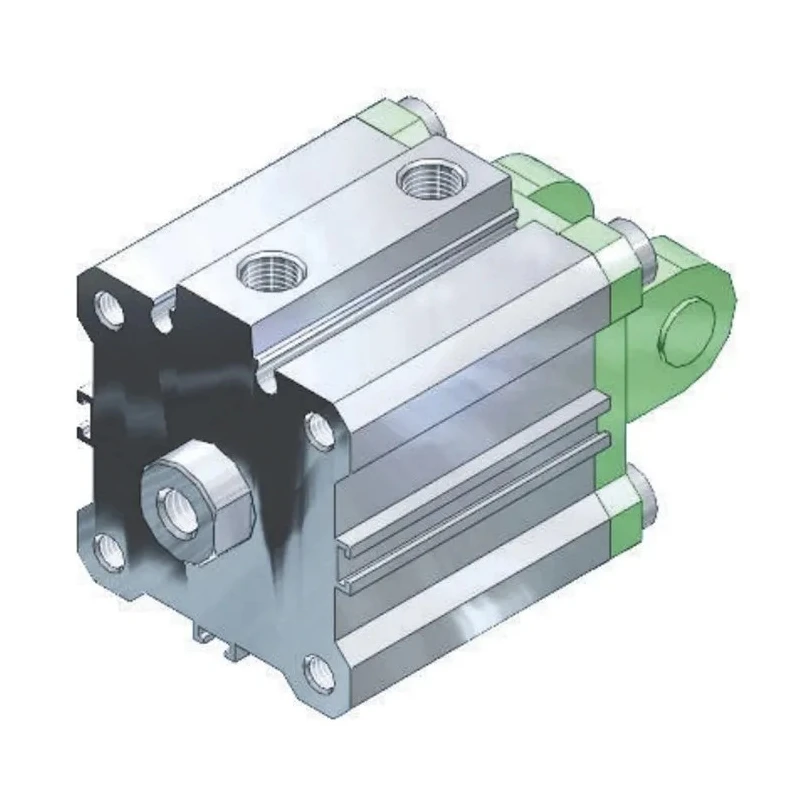

SMC Pneumatic Compact Cylinder 20mm Bore, 15mm Stroke, Aluminium Alloy Body, Double Acting CDQSB20-15D
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1.5 Mpa |
| Height | 36mm |
| Length | 39mm |
| Model | CDQSB20-15D |
| Gross Weight | 88g |
| Width | 36mm |
| Mount Type | Through Hole |
| Series | CDQS |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 15mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | 10 mm |
Key Features
- Constructed with a durable aluminium alloy body for lightweight and corrosion resistance.
- Through hole mount type facilitating secure and versatile installation.
- Maximum operating pressure of 1.5 Mpa suitable for various industrial pneumatic needs.
- Operating temperature range from -10°C to 70°C for reliable performance in diverse environments.
- Single rod type with female piston rod and a metric thread size of 10 mm.
- Compact dimensions with length 39mm, height 36mm, and width 36mm enhance space-saving designs.
- Maximum piston speed of 500 mm/s ensuring rapid actuation cycles.
- Proof pressure rating of 15 bar supports safety and durability under pressure.
Product Description
SMC CDQSB20-15D Pneumatic Compact Cylinder is engineered for compact and efficient pneumatic actuation in industrial and manufacturing settings. Featuring a 20mm bore diameter and 15mm stroke length, this double acting cylinder operates with a maximum pressure of 1.5 Mpa and a piston speed up to 500 mm/s, providing reliable and precise motion control.
The body is crafted from aluminium alloy, delivering both strength and corrosion resistance while reducing overall weight to 88 grams, making it ideal for applications where space and weight savings are critical.
This cylinder includes a through hole mount for flexible installation and a single rod design with female piston rod thread sized at 10 mm, conforming to metric standards. It is rated for operation in temperatures ranging from -10°C to 70°C, enabling use in a variety of ambient conditions.
Designed with clean lines and smooth operation, the CDQS series cylinders are suitable for automated machinery, industrial fluid power systems, and manufacturing processes requiring compact Pneumatic Cylinders. Despite its small footprint, it delivers durable performance and meets proof pressure safety factor of 15 bar.
Durable aluminium alloy body construction. Double acting with 20 mm bore and 15 mm stroke. Through hole mount for versatile setup. Single piston rod with female thread (Metric 10 mm). Operating pressure up to 1.5 Mpa and piston speed 500 mm/s.
Wide operating temperature range from -10°C to 70°C. Lightweight at 88 grams for easy integration.
This pneumatic compact cylinder is applicable in industrial automation, assembly machinery, pneumatic equipment, and fluid power control systems. It supports precise linear motion control in limited space environments.
Explore the SMC product line and other pneumatic components in the Hydraulic & Pneumatic Tools category on EnvMart for all your industrial pneumatic solution needs.
