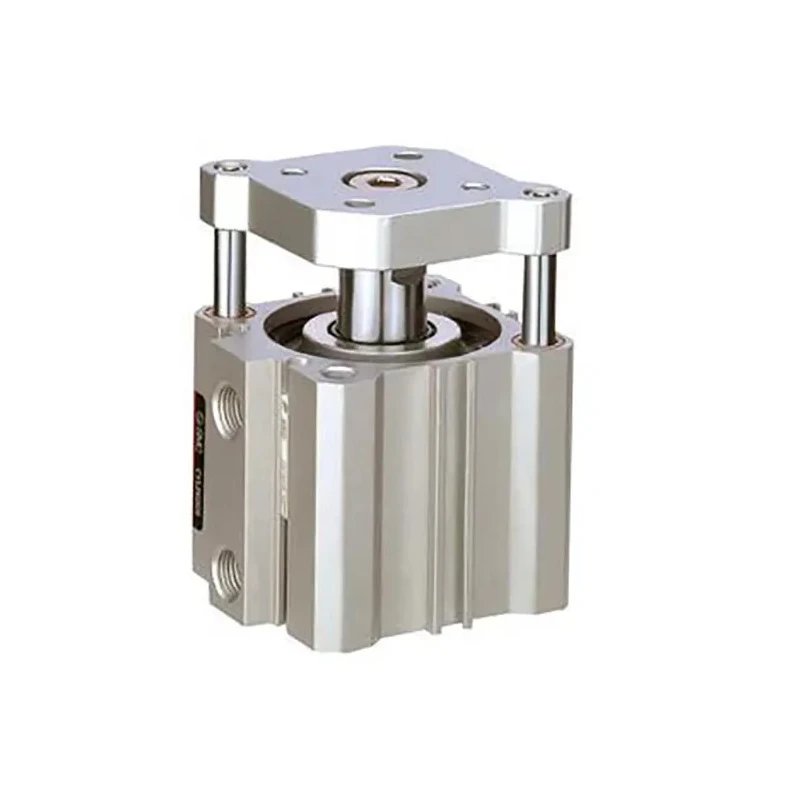

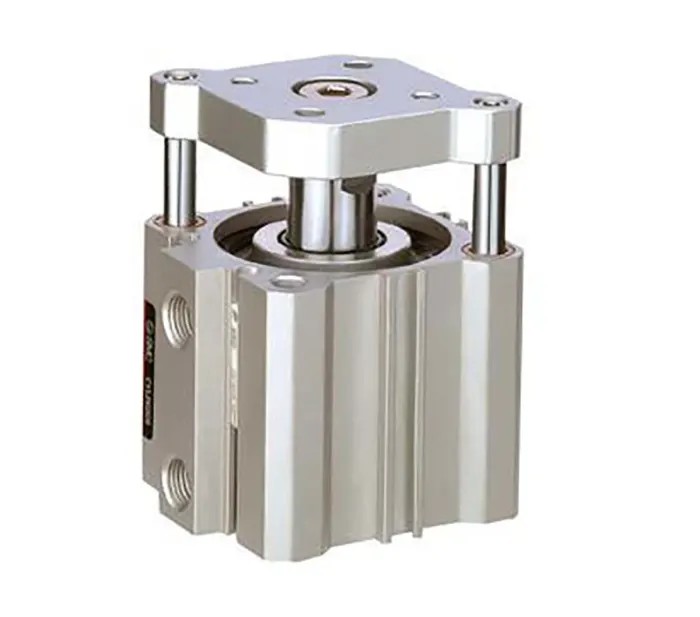

SMC Pneumatic Compact Cylinder 32mm Bore 75mm Stroke Aluminium Alloy Body Double Acting Through Hole Mount CDQMB32TF-75
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1 Mpa |
| Height | 45mm |
| Length | 58.5mm |
| Model | CDQMB32TF-75 |
| Gross Weight | 564g |
| Width | 125mm |
| Mount Type | Through Hole |
| Series | CQM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 75mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | RoHS |
| Cushioning Type | Rubber Bumper |
| Piston Rod Thread Standard | BSPP |
| Piston Rod Thread Size | 1/8 in G |
| Standard strokes (mm) | 5 to 100 mm |
| SMC Pneumatic Cylinder - 32mm Bore, 75mm Stroke, CQM Series, Double ActingBrand | SMC |
Key Features
- Equipped with rubber bumper cushioning for reliable operation.
- Body made from durable aluminium alloy ensuring lightweight and strength.
- Maximum operating pressure of 1 MPa and piston speed up to 500 mm/s.
- Suitable for operating temperatures from -10°C to 60°C.
- Compact design with 58.5mm length and 125mm width for easy installation.
- Single rod type with BSPP 1/8 in G piston rod thread size.
- Complies with RoHS standards for environmental safety.
- Originates from Japan, assuring high manufacturing quality.
Product Description
SMC CDQMB32TF-75 Pneumatic Compact Cylinder is designed for industrial automation requiring precise and durable pneumatic actuation with a 32mm bore and 75mm stroke length. Its aluminium alloy body provides a strong yet lightweight construction, making it well suited for compact installations. The cylinder operates on a double acting mechanism and is mounted using a through hole type mount for secure and stable positioning. Rubber bumper cushioning ensures smooth operation and absorbs shocks, extending the cylinder's life.
Designed to handle a maximum operating pressure of 1 MPa and piston speeds up to 500 mm/s, this cylinder is effective for rapid and reliable actuation tasks. The product supports operating temperatures ranging from -10°C to 60°C, making it suitable for a variety of industrial environments. The single rod type design with BSPP 1/8 in G thread allows for standard pneumatic connections and easy integration in pneumatic systems.
The compact dimensions including a length of 58.5mm, height of 45mm, and width of 125mm make this cylinder an excellent choice for space-constrained applications. Manufactured in Japan, it meets high quality standards and complies with RoHS environmental regulations, ensuring safe and eco-friendly use.
Rubber bumper cushioning reduces vibration and noise during operation. High strength aluminium alloy body ensures lightweight durability. Through hole mount facilitates stable installation in machinery. Operates effectively under a wide range of temperatures and pressures.
Complies with RoHS standards confirming environmental compliance. Compact size complements modern automated equipment design. Single rod design offers simplicity and ease of connection. Suitable for multiple industrial sectors including manufacturing, automation, and assembly lines.
Explore the comprehensive range of Pneumatic Cylinders and actuators available in the Industrial Tools & Equipment category on EnvMart for your automation and fluid power requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic compact cylinder is 1 MPa.
This model has a length of 58.5mm, height of 45mm, and width of 125mm.
The stroke length of this cylinder is 75mm.
It is equipped with rubber bumper cushioning for smooth operation and shock absorption.
The bore diameter of this pneumatic cylinder is 32mm.
This unit can operate in temperatures ranging from -10°C to 60°C.
It uses a through hole mount type for secure installation.
The piston rod thread size is 1/8 in G, following the BSPP standard.
The gross weight of this pneumatic cylinder is 564g.
This model operates on a double acting mechanism.
Yes, it complies with RoHS standards for environmental safety.
The body of this cylinder is made from durable aluminium alloy.
