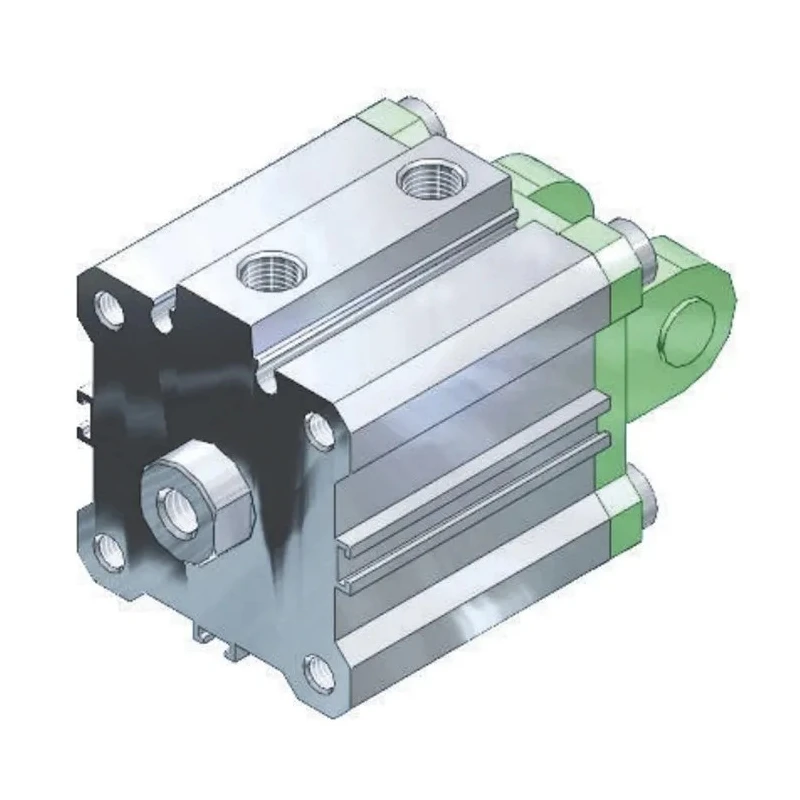

SMC Pneumatic Compact Cylinder Double Acting 12mm Bore 10mm Stroke Aluminium Alloy CDQSB12-10D

SMC CDQSB12-10D Pneumatic Compact Cylinder is a precision-engineered double acting cylinder with a 12 mm bore diameter and a 10 mm stroke length. Constructed from durable aluminium alloy, it offers excellent strength-to-weight ratio making it suitable for automated industrial applications.

The cylinder features a through hole mount type enabling versatile installation options. Its maximum operating pressure is rated at 1.5 Mpa with piston speeds up to 500 mm/s, allowing for responsive pneumatic actuation. The operating temperature range spans from -10°C to 70°C, accommodating a wide variety of environmental conditions encountered in manufacturing, packaging, automotive, and assembly lines.

Designed with a single rod type, the piston rod is female threaded with a 6 mm metric thread standard, facilitating secure mechanical attachment. The compact dimensions of 30.5 mm length, 25 mm height, and 25 mm width along with a lightweight 36 g body contribute to space-saving equipment designs.

This cylinder series supports both magnetic and non-magnetic pistons, enabling compatibility with auto switches and enhancing system versatility. It complies with general industrial requirements without specific approvals or standards stated.

Compact design ideal for applications with limited installation space. Double acting operation delivers reliable piston movement in both directions. Body constructed from aluminium alloy for lightweight and durability. Maximum operating pressure of 1.5 Mpa and piston speed up to 500 mm/s.

Operating temperature range from -10°C to 70°C for versatile industrial environments. Single rod type with female piston rod thread size of 6 mm using metric standards. Through hole mount type for easy installation and alignment.

Magnetic and non-magnetic piston options available for switch compatibility. Compact dimensions: Length 30.5 mm, Height 25 mm, Width 25 mm. Weight approximately 36 grams, optimized for small bore cylinder applications.

This pneumatic compact cylinder is widely used in industrial automation, manufacturing equipment, packaging machinery, laboratory automation, and pneumatic systems requiring precise linear actuation within confined spaces.
