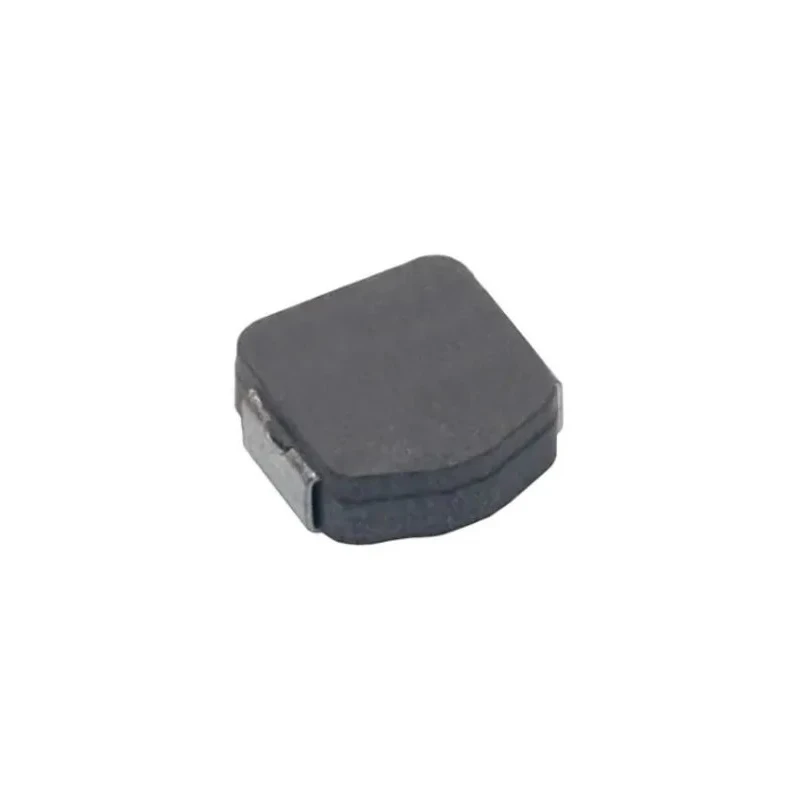

KEMET MPX 0520 Shielded Wirewound Surface Mount Inductor with Metal Composite Core 10 μH ±20 % 2.2 A Idc MPX1D0520L100
Specifications
| Country of Origin | China |
|---|---|
| Brand | KEMET |
| Height | 2mm |
| Length | 5.3mm |
| Model | MPX1D0520L100 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | MPX |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 0520 |
| Maximum DC Current | 2.2A |
| Maximum DC Resistance | 222.8mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 20MHz |
| Inductor Construction | Shielded |
Key Features
- Metal composite core ensures high saturation capabilities and temperature stability.
- Shielded construction minimizes magnetic flux leakage and EMI interference.
- Surface mount tape & reel packaging supports automated assembly.
- Operating temperature range from -55°C to 155°C supports harsh environments.
- Low acoustic noise suitable for noise-sensitive applications.
- Maximum DC resistance of 222.8 mΩ supports efficient power delivery.
- Maximum self-resonant frequency is 20 MHz for high-frequency performance.
- Compact 0520 package dimensions of 5.3 mm length, 5 mm depth, and 2 mm height.
Product Description
KEMET MPX1D0520L100 is a shielded wirewound surface mount inductor featuring a metal composite core, delivering 10 μH inductance with a tolerance of ±20 % and a maximum DC current of 2.2 A. This inductor is designed specifically for use in DC to DC switching power supplies, EMI filtering, and power inductors in electronic circuits.
The metal composite core offers high saturation capabilities and temperature stability up to 155°C, ensuring consistent inductance during high current transients. Its shielded construction minimizes magnetic flux leakage and electromagnetic interference, making it ideal for sensitive electronics.
Encapsulated in a compact 0520 surface mount package, dimensions are 5.3 mm in length, 5 mm in depth, and 2 mm in height, enabling dense PCB layouts and automated assembly with tape & reel packaging.
With a low acoustic noise profile, this inductor performs reliably in noise-sensitive industrial, automotive, and communications applications. The maximum DC resistance of 222.8 mΩ supports efficient power handling with minimal losses. It has a maximum self-resonant frequency of 20 MHz, making it suitable for high-frequency circuits.
Additional features include RoHS compliance and suitability for operating temperatures from -55°C to +155°C, making it robust for demanding environments.
Typical use cases include power supply circuits, EMI filters, industrial electronics, automotive modules, telecommunications equipment, and other electronic devices requiring stable inductance and low noise.
Metal composite core for high saturation and temperature stability. Shielded design reduces EMI and magnetic flux leakage. Compact surface mount 0520 package dimensions. High maximum DC current rating of 2.2 A. Low acoustic noise for sensitive applications.
Wide operating temperature range from -55°C to 155°C. RoHS compliant for environmental safety. Ideal for DC to DC converters and EMI filters. Explore more electronics components like Surface Mount Inductors in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 10 μH with a tolerance of ±20%.
This model has a maximum DC current rating of 2.2 A.
The dimensions of the 0520 package are 5.3 mm in length, 5 mm in depth, and 2 mm in height.
The maximum operating temperature for this inductor is 155°C.
It features a metal composite core, which provides high saturation capabilities and temperature stability.
The shielded construction minimizes magnetic flux leakage and electromagnetic interference, making it suitable for sensitive electronics.
The maximum self-resonant frequency is 20 MHz, allowing for high-frequency performance.
It is packaged in tape & reel format, which supports automated assembly.
Yes, this inductor is RoHS compliant, ensuring it meets environmental safety standards.
The maximum DC resistance is 222.8 mΩ, which supports efficient power delivery.
This model is suitable for use in DC to DC switching power supplies, EMI filtering, and power inductors in electronic circuits.
The minimum operating temperature for this inductor is -55°C, making it suitable for harsh environments.
