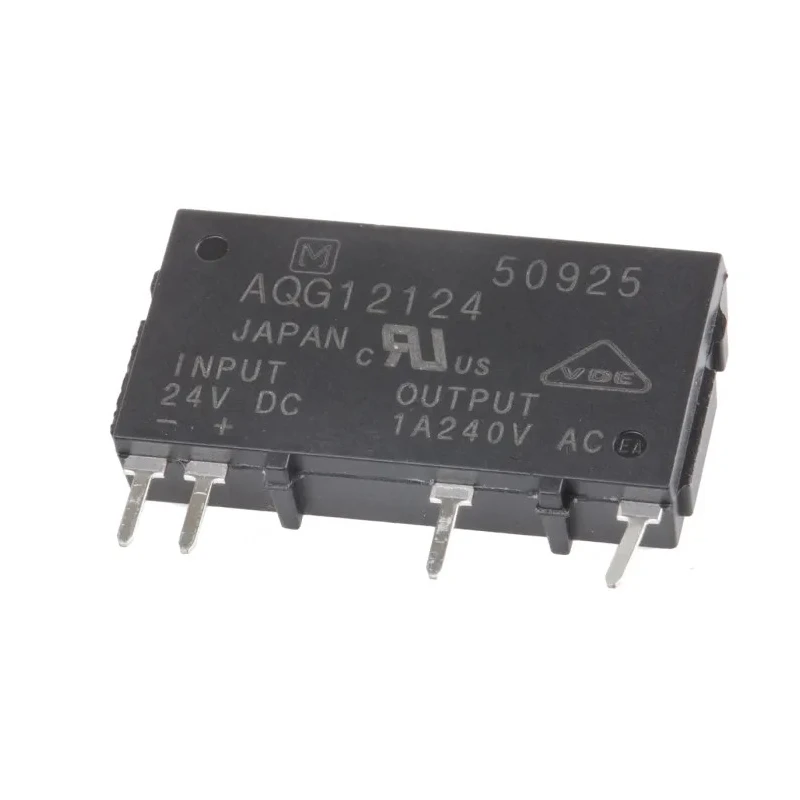

Panasonic AQG Series Solid State Relay PCB Mount 1A Load 264V Load 28.8V Control AQG12124

Panasonic AQG12124 Solid State Relay PCB Mount features a 1 amp maximum load current and a maximum load voltage of 264 volts, designed for efficient and reliable switching in electronic control systems.

This relay offers a slim form factor with a thickness of 4.5 mm and dimensions 24.5 mm (length) x 4.5 mm (width) x 13.5 mm (height), making it ideal for compact PCB mounting applications.

Included is a snubber circuit that improves switching stability and reduces potential electromagnetic interference. The zero-cross switching function ensures activation at zero voltage crossing, minimizing electrical noise and prolonging device lifespan.

Operating temperature range between -30°C and 80°C allows use in varying industrial environments. A high dielectric strength rating of 3,000V AC guarantees robust isolation between input and output circuits, enhancing safety and durability.

The relay uses a phototriac coupler output type, enabling silent operation without mechanical contacts and improving reliability over time. This model carries certifications and approvals from VDE, UL, and C-UL, making it compliant with international quality standards.

Its primary uses include industrial automation, electrical control systems, and signal conditioning tasks requiring reliable switching without mechanical wear. This relay features a snubber circuit integrated for enhanced reliability.

It has zero-cross switching function to reduce electrical noise. The compact SIP-4 package allows easy PCB mounting with PC board terminals. Operating temperature ranges from -30°C to 80°C ensuring durability in harsh environments.

High dielectric strength of 3,000V AC ensures electrical isolation and safety. Low off-state leakage current of 1.5mA reduces power wastage. Phototriac coupler output type enables solid-state switching without mechanical wear.

Complies with relevant standards and approvals including VDE, UL, and C-UL. Browse Panasonic Solid State Relays and related industrial automation components on EnvMart for reliable and high-performance products tailored to professional needs.
