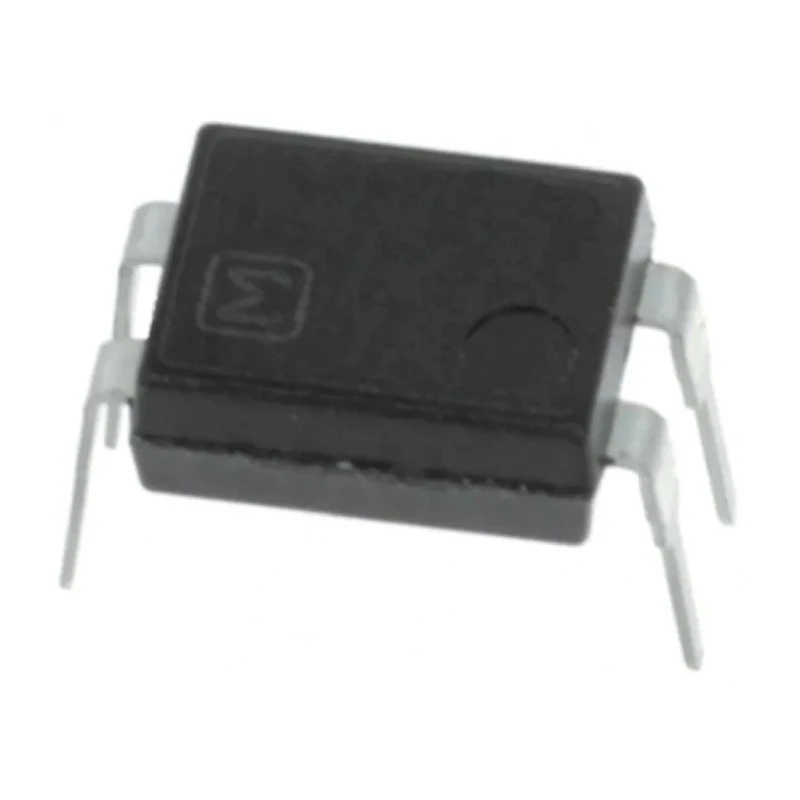

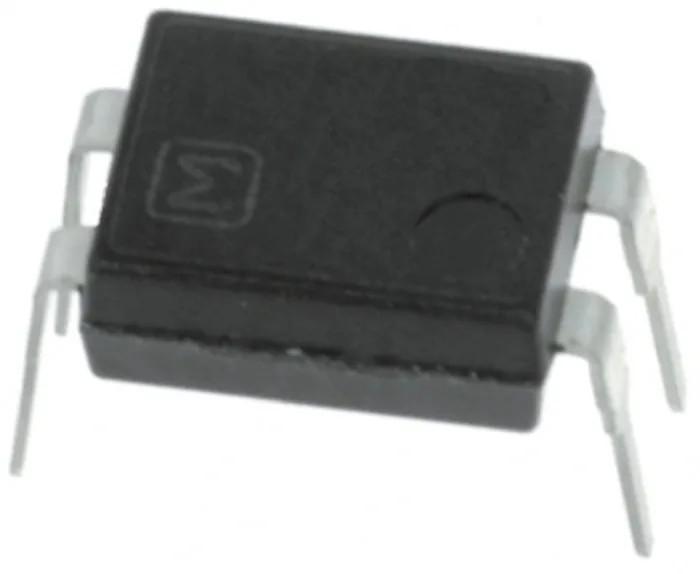

Panasonic APT1 Series Solid State Relay, PCB Mount, 3.5 mA Load Current, 600 V Load Voltage, 1.3 V Control, DIP-4 Package

The Panasonic APT1211 is a solid state relay from the APT1 series, designed for PCB mounting and suitable for precise and reliable switching of electrical loads. This relay supports a maximum load current of 3.5 mA and can operate at voltages up to 600 V, making it ideal for applications in office equipment, home appliances, and industrial machines.

Featuring a DIP-4 package type and through hole mounting, the APT1211 facilitates easy assembly on printed circuit boards. The relay employs zero cross switching, which helps minimize electrical noise and prolongs device life by switching during the zero crossing of the AC waveform.

With an operating temperature range from -40°C to 100°C, the relay ensures dependable performance in a variety of environmental conditions. The control voltage is tightly specified between 1.21 V and 1.3 V, allowing accurate control signaling. The SPST contact configuration combined with a triac output type provides single-pole switching capability, suitable for AC load control.

Additionally, its off-state leakage current is extremely low at 1 μA, reducing standby power losses. The product is compliant with certifications including cUL, UL, VDE, and RoHS, ensuring safety and environmental standards.

These features make the Panasonic APT1211 an excellent choice for equipment that requires compact, reliable, and efficient AC load switching solutions in industrial automation, HVAC systems, and consumer electronics.

Solid state relay with a maximum load current of 3.5 mA for low current applications. Designed for PCB mounting with a DIP-4 package type for easy integration. Maximum load voltage rated at 600 V for high voltage switching.

Control voltage range between 1.21 V minimum and 1.3 V maximum ensures precise operation. Zero cross switching function reduces electrical noise during switching. Operating temperature range from -40°C to 100°C for reliable performance in harsh environments.

Through hole terminal type with SPST contact configuration for simple circuit integration. Triac output type with low off-state leakage current of 1 μA to minimize power consumption. Explore Panasonic Solid State Relays and related components in EnvMart’s Electronics & Electricals category for industrial and automation applications.
