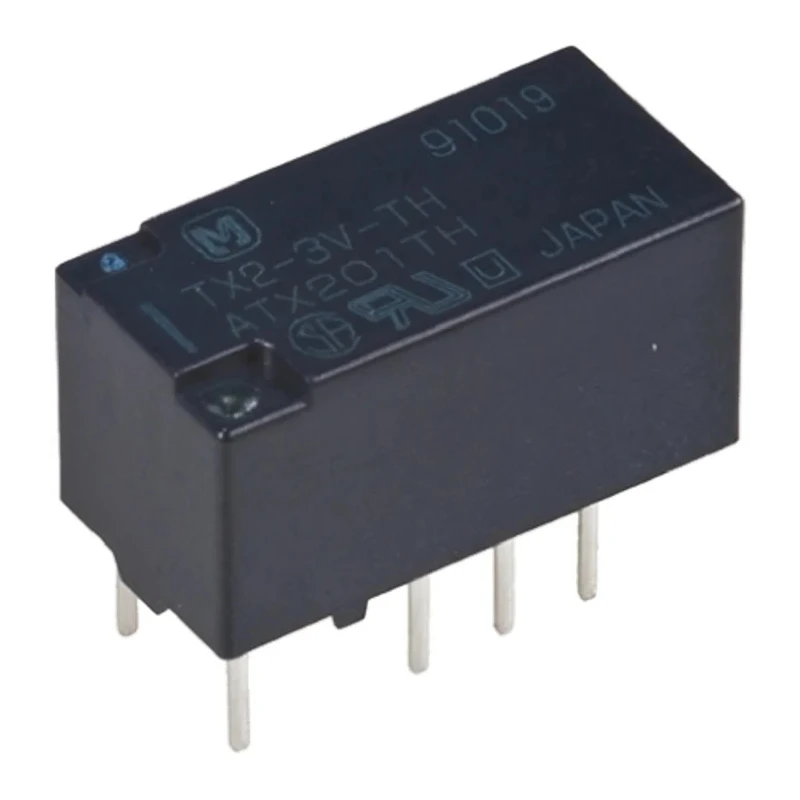

Panasonic PCB Signal Relay 4.5V DC Coil, 2A Switching Current, DPDT Contact Configuration TX2-L-4.5V-TH
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2-L-4.5V-TH |
| Width | 7.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TX-TH |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 202.5Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 60W |
| UL recognised, | CSA,:BSI |
Key Features
- Operates with a 4.5V DC coil for efficient power consumption.
- Double Pole Double Throw (DPDT) contact configuration ensures versatile switching.
- Switching current rated at 2A, suitable for moderate load applications.
- Compact dimensions of 15mm length, 8.2mm height, and 7.4mm width allow for space-saving PCB installation.
- Gold plated contacts provide high reliability and low contact resistance of 100 milliohms.
- High sensitivity with coil power consumption of 140mW.
- Supports a maximum switching AC voltage of 250V and DC voltage of 220V.
- Operating temperature range from -40°C to 85°C ensures durability under varied conditions.

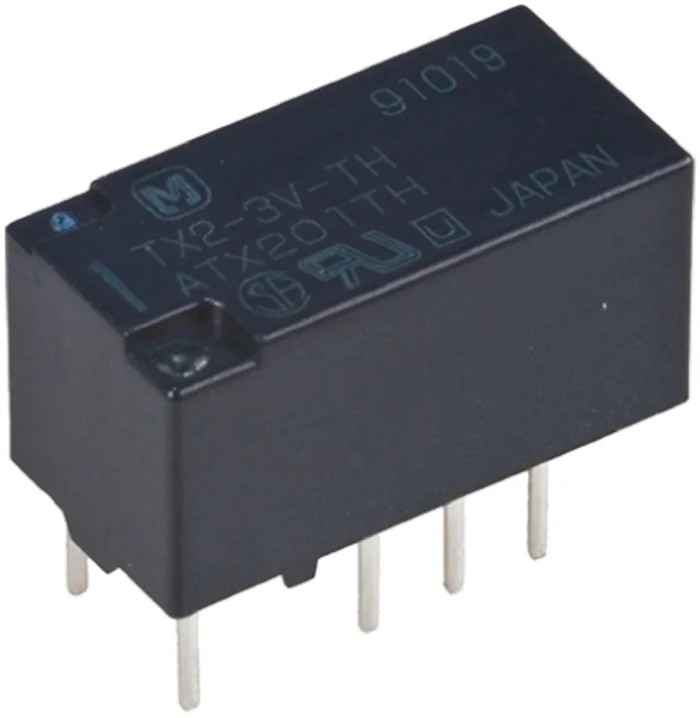

Product Description
Panasonic TX2-L-4.5V-TH PCB Signal Relay is a compact, high-performance Signal Relay designed for PCB mounting. It operates at a coil voltage of 4.5V DC with a coil power consumption of 140mW and features a double pole double throw (DPDT) contact configuration capable of switching 2A current. This relay is part of the TX-TH series, known for its reliable performance with a low contact resistance of 100 milliohms and gold plated contacts ensuring long-lasting connectivity.
With a compact footprint measuring 15mm in length, 8.2mm in height, and 7.4mm in width, this relay fits efficiently on PCBs used in a wide range of industrial electronics. It supports a maximum switching AC voltage of 250V and DC voltage of 220V, providing robust handling of electrical signals and loads.
The relay operates reliably within a wide temperature range from -40°C to 85°C, making it suitable for harsh environmental conditions. Its sealed construction affords excellent shock and vibration resistance while allowing for automatic washing during assembly, enhancing manufacturing efficiency and product durability.
Typical use cases include air conditioning control systems and other industrial or commercial automation applications requiring precise and high-capacity signal switching. The TX2-L-4.5V-TH relay also supports a controlled inrush current of up to 7.5A, ensuring stable operation during surges.
Operates at low coil power consumption of 140mW, enhancing energy efficiency. Features gold plated contacts for improved conductivity and reduced wear. Designed for PCB mounting with solder terminal type for easy integration.
Complies with RoHS standards ensuring environmental compliance.
Panasonic relays like the TX2-L-4.5V-TH provide dependable switching solutions for various industrial, manufacturing, HVAC, and automation applications. Explore more relay options and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TX2-L-4.5V-TH relay operates with a coil voltage of 4.5V DC.
This model can handle a maximum switching current of 2A.
The relay measures 15mm in length, 8.2mm in height, and 7.4mm in width.
It features a Double Pole Double Throw (DPDT) contact configuration.
The relay supports a maximum switching AC voltage of 250V and a DC voltage of 220V.
The coil power consumption is 140mW, which enhances energy efficiency.
It has a low contact resistance of 100 milliohms.
The relay operates reliably within a temperature range from -40°C to 85°C.
This model is designed for PCB mounting with a solder terminal type.
The contacts are made of gold plated material, which provides high reliability and low wear.
Yes, it complies with RoHS standards and is UL recognized, CSA, and BSI approved.
It is suitable for applications such as air conditioning control systems and various industrial automation tasks.
