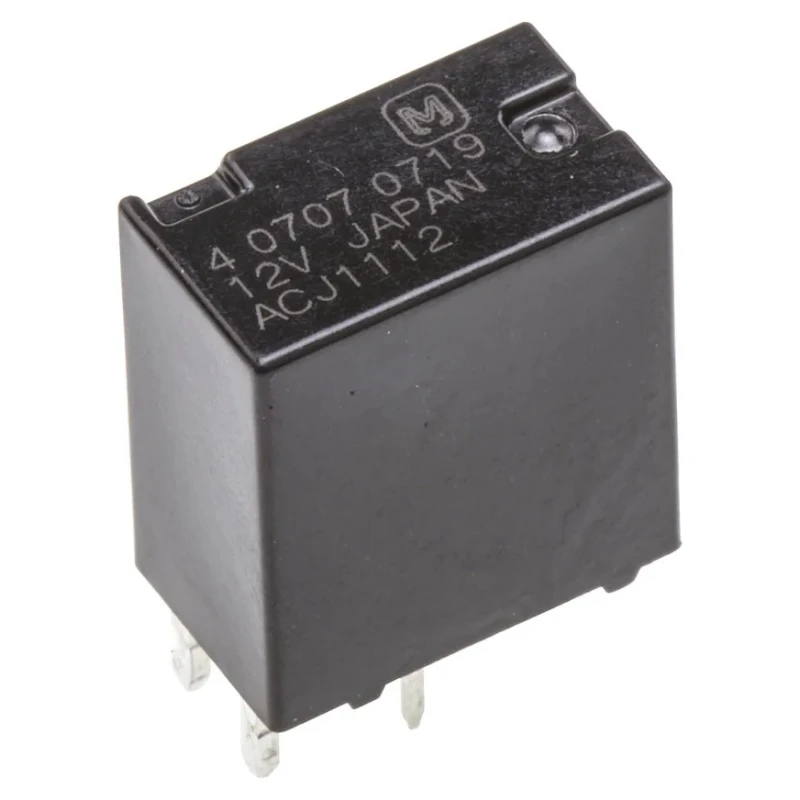

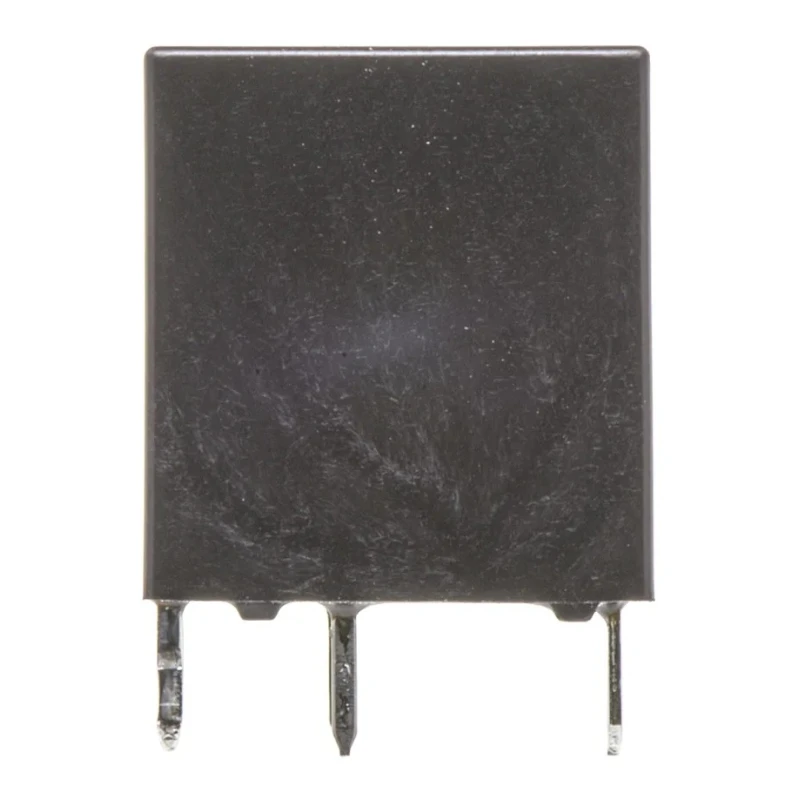

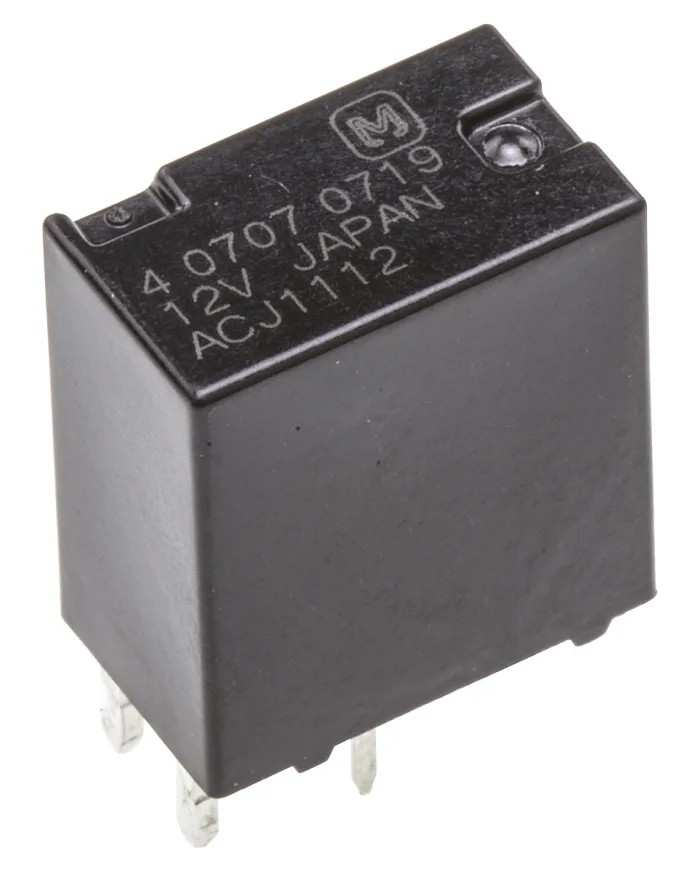

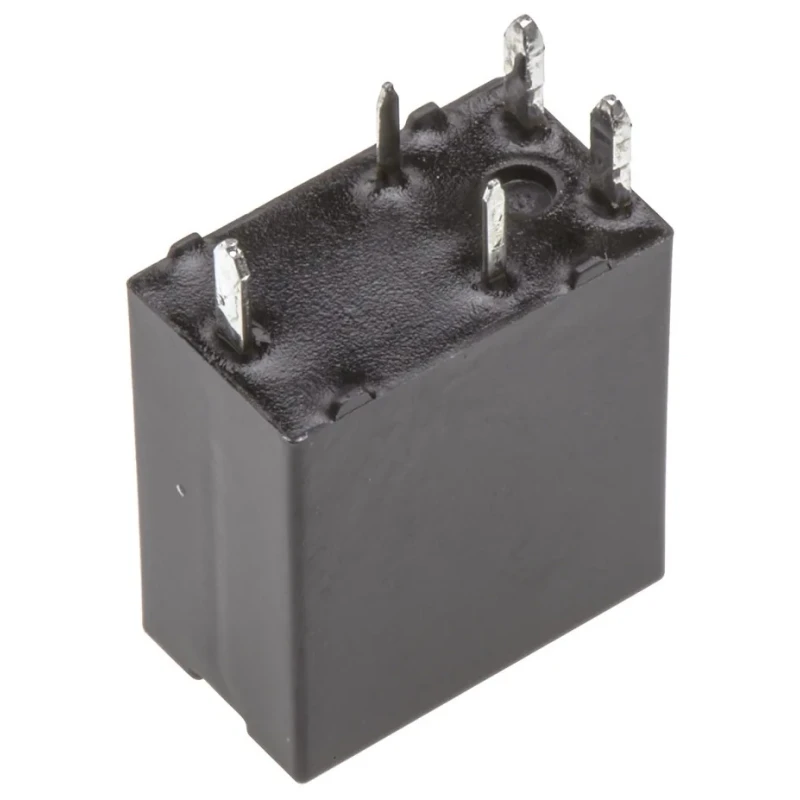

Panasonic PCB Automotive Relay 12V DC Coil Voltage 20A Switching Current SPDT ACJ1112
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 13.5mm |
| Length | 12.2mm |
| Model | ACJ1112 |
| Depth | 13.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ACJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Typical Applications | Powered windows, automatic door locks, powered seats |
| Number of Poles | 1 |
| Coil Resistance | 180Ω |
| Coil Power | 800mW |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Extremely compact PCB mount automotive relay minimizing relay unit size.
- Nominal coil voltage of 12V DC with coil power consumption of approximately 800mW.
- Maximum current capacity of 20A for one hour and 30A surge current for two minutes.
- Silver alloy contact material with SPDT contact configuration and single pole.
- Operating temperature range of -40°C to 85°C ensuring reliability in harsh environments.
- Typical applications include powered windows, automatic door locks, and powered seats.
- PCB mount type with through-hole terminal for secure mechanical and electrical connection.
- Isolation voltage of 500Vrms between coil and contacts.
Product Description
Panasonic ACJ1112 PCB Automotive Relay is a highly reliable and compact relay designed specifically for automotive applications requiring efficient switching performance. Featuring a 12V DC coil voltage and a maximum switching current of 20A, this SPDT (Single Pole Double Throw) relay offers excellent electrical isolation and durability with silver alloy contacts.
The compact dimensions of 12.2mm length, 13.5mm height, and 13.7mm depth make it suitable for miniaturized relay units within automotive electronic assemblies. It maintains dependable operation in a wide temperature range from -40°C to 85°C, ensuring functionality under various environmental stresses commonly encountered in automotive and related industries.
The relay's coil resistance is 180 ohms with nominal power consumption of around 800mW. Its through-hole terminal type and PCB mounting facilitate stable installation and integration with printed circuit boards.
Typical applications include powered windows, automatic door locks, electrically powered mirrors, powered sunroofs, seats, lift gates, and smart junction boxes. The ACJ series relays from Panasonic provide cadmium-free contacts and lead-free solder construction, supporting environmental protection standards.
Extremely compact and smallest in its class for PCB automotive relays. Nominal coil voltage 12V DC and coil power approx. 800mW. Max current capacity 20A for 1 hour and surge current 30A for 2 minutes. SPDT contact configuration with silver alloy contacts.
Operating temperature range -40°C to 85°C suitable for harsh conditions. PCB mount style with through-hole terminals for secure connections. 500Vrms isolation voltage between coil and contacts for safety. Applications include powered windows, door locks, seats, and smart junction boxes.
This product is well suited for industrial, automotive, and manufacturing applications requiring compact, reliable Automotive Relays. EnvMart offers a wide range of relays and contactors for diverse electrical and electronic systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal coil voltage of this automotive relay is 12V DC.
The maximum switching current for this relay is 20A for one hour, with a surge current of 30A for two minutes.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The operating temperature range for this model is from -40°C to 85°C.
This relay is designed for PCB mounting with through-hole terminals for secure connections.
The coil resistance of this relay is 180 ohms.
The contacts in this relay are made of silver alloy.
Typical applications for this relay include powered windows, automatic door locks, and powered seats.
The isolation voltage between the coil and contacts is 500Vrms.
The dimensions of this relay are 12.2mm in length, 13.5mm in height, and 13.7mm in depth.
This relay is manufactured in Japan.
