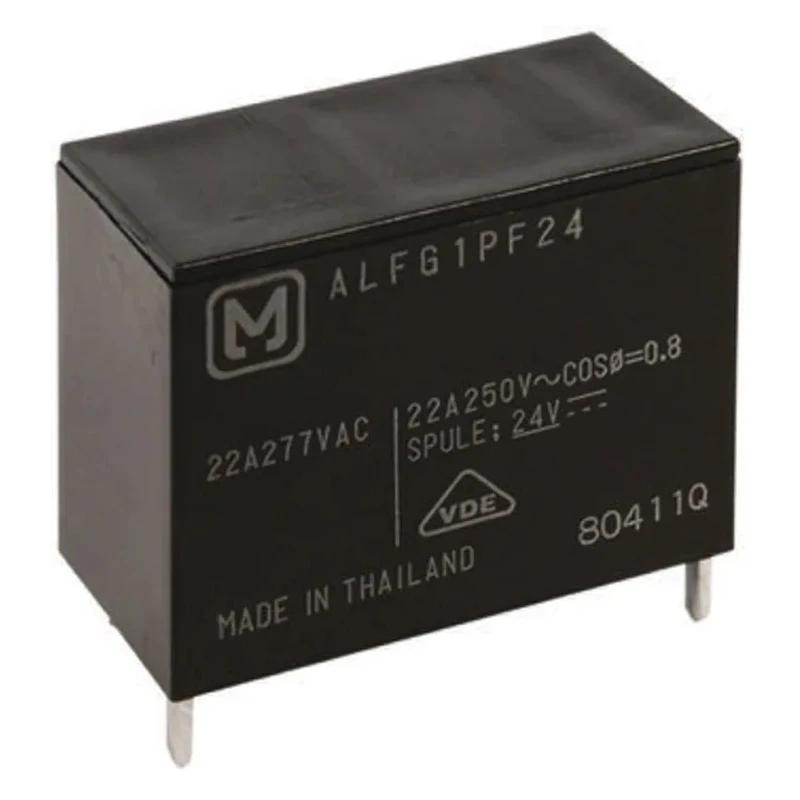

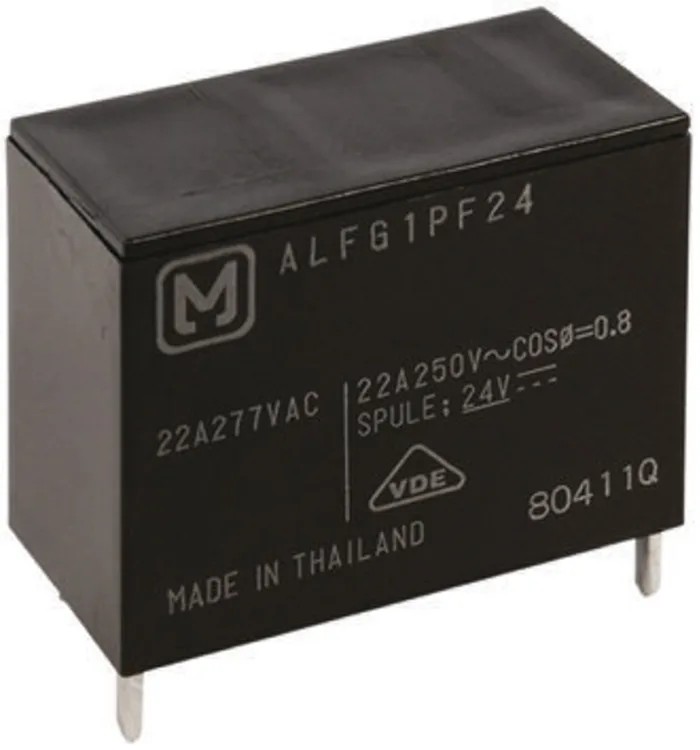

Panasonic PCB Power Relay 24V dc Coil 31A Switching Current SPST ALFG2PF24
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 23.3mm |
| Length | 30.1mm |
| Model | ALFG2PF24 |
| Width | 15.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ALFG |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 31A |
| Terminal type | Through Hole |
| Typical Applications | Solar inverter, Uninterriptible PSU's, Office equipment |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE, RoHS, UL |
| Coil Resistance | 410Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.4W |
| Surge breakdown voltage | 6kV |
Key Features
- Compact ALFG series power relay ideal for solar inverters and power management.
- Coil holding voltage reduced by up to 35% to save energy in equipment.
- High insulation resistance and surge breakdown voltage of 6kV provide durability.
- Through hole terminal type for reliable PCB mounting and superior contact performance.
- Suitable for applications including photovoltaic power generation, uninterruptible power supplies, and office equipment.
- Contact material made of silver alloy ensures low contact resistance of 100mΩ.
- Operates reliably in temperatures ranging from -40°C to 60°C.
- Complies with VDE, RoHS, and UL standards for safety and environmental compliance.
Product Description
Panasonic ALFG2PF24 PCB Power Relay offers 24V dc coil voltage and 31A switching current with SPST contact configuration, specially engineered for efficient power relay applications in industrial and commercial sectors.
This compact power relay from the ALFG series is widely used in photovoltaic power generation systems such as solar inverters, uninterruptible power supplies (UPS), home appliances, and office equipment. The coil holding voltage can be reduced up to 35% of the nominal coil voltage at ambient temperature of 20°C, contributing significantly to energy savings in equipment operation.
The relay features high insulation resistance and a surge breakdown voltage rating of 6kV, ensuring robust performance under demanding electrical conditions. It has through hole terminal type designed for PCB mounting, enhancing reliability in installations.
The contact system uses silver alloy material, providing a low contact resistance of 100mΩ and high switching capacity at 31A current and switching power of 8.3 kVA. It supports switching AC voltage up to 250V AC. Operating temperature range is from -40°C minimum up to 60°C maximum, suitable for various environmental conditions.
Compact ALFG series suitable for solar inverters and PSU systems. Energy-efficient coil holding voltage reduces power consumption. High surge voltage withstand of 6kV ensures reliability. Silver alloy contacts for low resistance and durability.
Compliant with key standards UL, C-UL, VDE, and RoHS. Designed for through-hole PCB mounting in various electronics applications. Wide operating temperature range from -40°C to +60°C. Applications include solar inverter, uninterruptible power supplies (UPS), office equipment, and home appliances.
Panasonic continues to provide reliable and high-quality relays for industrial, electronics, and automation applications through its ALFG series power relays. This product is ideal for use in environments requiring dependable switching solutions and energy efficiency.
Explore our range of Power Relays and electronic components on EnvMart for your industrial and professional needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ALFG2PF24 relay has a switching current rating of 31A.
This power relay operates with a coil voltage of 24V dc.
The relay features an SPST (Single Pole Single Throw) contact configuration.
The maximum operating temperature for the ALFG2PF24 relay is 60°C.
It uses a through hole terminal type for PCB mounting.
The relay has a surge breakdown voltage rating of 6kV.
The contact material is made of silver alloy, which ensures low contact resistance.
The minimum operating temperature for the ALFG2PF24 relay is -40°C.
The contact resistance is rated at 100mΩ.
It is suitable for applications including solar inverters, uninterruptible power supplies (UPS), and office equipment.
This relay complies with VDE, RoHS, and UL standards for safety and environmental compliance.
The relay measures 30.1mm in length and 15.7mm in width.
