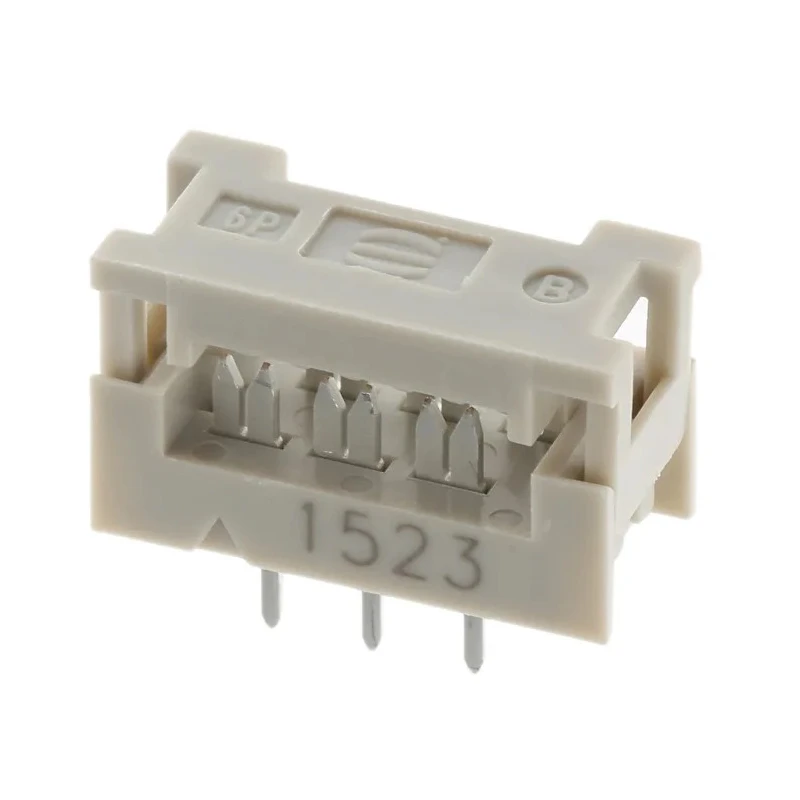

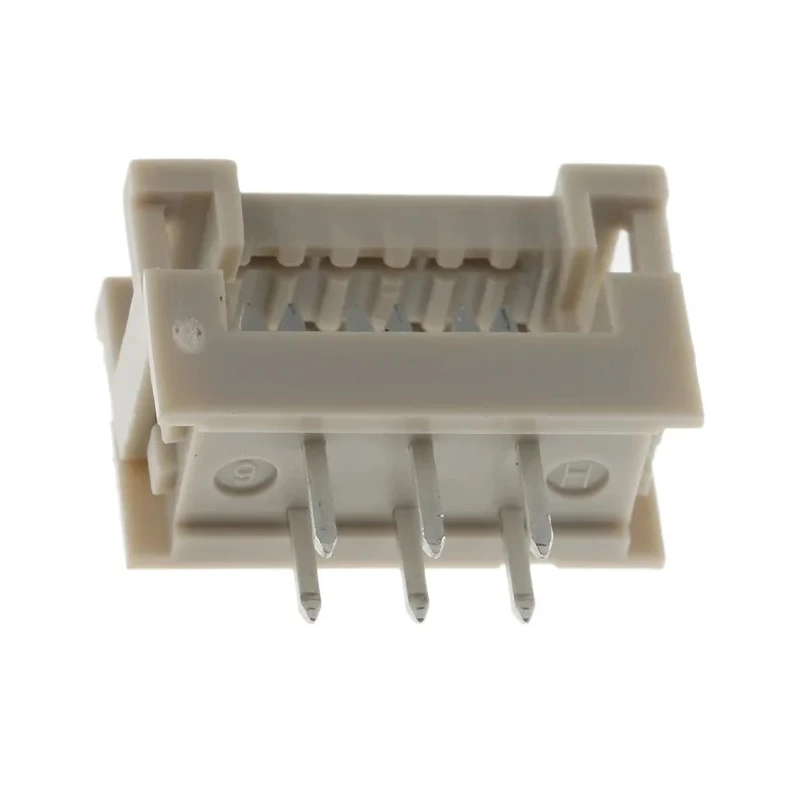

HARTING 6-Way IDC Connector Male for Through Hole, 2 Row 09181069622
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 320V ac |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| HARTING 6-Way IDC Connector Male for Through Hole, 2 RowBrand | HARTING |
Key Features
- Supports a current rating of 1 ampere for electrical applications.
- Designed with a 2.54 mm pitch and solder termination for secure PCB mounting.
- Constructed of copper alloy contacts with tin plating for corrosion resistance.
- Polybutylene terephthalate housing ensures durability and insulation.
- Operates within -55°C to 105°C temperature range for diverse environments.
- Mount type is through hole with straight orientation for easy PCB integration.
- Designed in the SEK 18 series with male connector gender and shrouded style.
Product Description
HARTING 09181069622 is a 6-way IDC connector male type designed for through hole mounting on PCBs. Featuring two rows of 3 contacts each, this connector offers a reliable and space-efficient interface for PCB transition applications in industrial and electronic devices.
Constructed with copper alloy contacts plated with tin, the connector ensures excellent conductivity and corrosion resistance. The housing material, polybutylene terephthalate, provides mechanical strength and insulation to withstand operating conditions.
Electrical specifications include a current rating of 1 ampere and a voltage rating of 320 volts AC, suitable for low-power circuitry. The termination type is solder, with a 2.54 mm pitch between contacts arranged in two rows, enabling secure through hole PCB mounting with a low-profile design of 5.5 mm height.
Operating temperatures range from -55°C up to 105°C, making it suitable for diverse industrial environments including automation, manufacturing equipment, and electronic controls.
The connector is straight oriented and features a shrouded male gender design, ensuring accurate mating with corresponding female connectors and protection against accidental contact.
Reliable 6-contact IDC connector with 2 rows and 2.54 mm pitch. Durable polybutylene terephthalate housing for insulation and robustness. Copper alloy contacts plated with tin for enhanced conductivity. Suitable for currents up to 1A and voltages up to 320V AC.
Operating temperature from -55°C to 105°C supports harsh environments. Through hole mount type with solder termination for PCB integration. Low-profile design enables compact installation in electronic systems. Ideal for industrial, manufacturing, and electronic component applications.
This product is part of the SEK 18 series by HARTING and originates from China. It is designed to improve assembly efficacy and product reliability in electronic hardware assemblies. Browse EnvMart's Electronics Components category for more IDC Connectors and related accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 1 ampere for electrical applications.
The voltage rating is 320 volts AC, making it suitable for low-power circuitry.
The connector features a 2.54 mm pitch between contacts, arranged in two rows.
It is constructed with copper alloy contacts plated with tin for enhanced conductivity, and the housing is made of polybutylene terephthalate for insulation and mechanical strength.
It operates within a temperature range of -55°C to 105°C, suitable for diverse industrial environments.
This model is designed for through hole mounting with solder termination, allowing for secure integration on printed circuit boards.
The connector has a straight orientation, facilitating easy integration into PCB layouts.
It features a total of 6 contacts arranged in 2 rows.
This model is designed as a shrouded male connector, providing protection against accidental contact.
It is part of the SEK 18 series by HARTING.
It is suitable for applications in industrial automation, manufacturing equipment, and electronic controls due to its reliable electrical specifications.
The connector has a low-profile design with a height of 5.5 mm, enabling compact installation in electronic systems.
