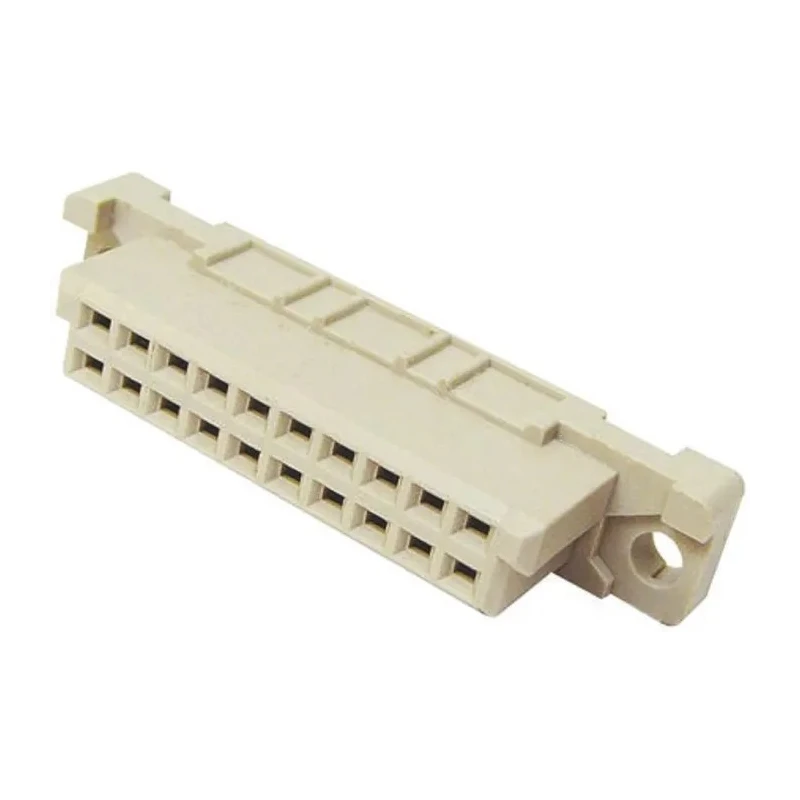

HARTING DIN 41612 20 Way 2.54 mm Pitch Type Through Hole 2 Row Female Straight Connector 09242206824
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B |
Key Features
- This connector features 20 contacts arranged in 2 rows for versatile connectivity.
- Designed as a type C/2 sub-type with solder termination and straight orientation.
- Contact plating is gold over nickel to ensure excellent electrical conductivity and corrosion resistance.
- Made from durable Polybutylene Terephthalate housing material suitable for harsh environments.
- Operates reliably within the temperature range of -55°C to 125°C.
- Maximum contact resistance is specified at 20 milliohms for optimal signal integrity.
- Meets performance level 2 as per IEC 60603-2 standards for industrial use.
- Ideal for use in backplane, rack connectors, and Eurocard racking systems.
Product Description
HARTING 09242206824 DIN 41612 Connector is a reliable 20 Way female connector featuring a 2.54 mm pitch, designed for through hole mounting and industrial electronic applications. The connector uses a type C/2 sub-type and solder termination, offering secure and durable connections.
With two rows of contacts arranged in an A/B loading configuration, this straight orientation female connector is constructed with copper alloy contacts plated in gold over nickel, ensuring excellent electrical conductivity and resistance to corrosion.
The housing is made from robust Polybutylene Terephthalate, allowing operation under harsh conditions with a temperature range from -55°C minimum to 125°C maximum. It has a maximum contact resistance of 20 milliohms, supporting reliable electrical performance aligned with IEC 60603-2 performance level 2 standards.
These connectors are widely used for interconnection in 19-inch Eurocard racking systems, backplane and rack connectors, and other industrial electronics setups where secure, high-quality connections are critical.
This connector features 20 contacts arranged in 2 rows for versatile connectivity. Designed as a type C/2 sub-type with solder termination and straight orientation. Contact plating is gold over nickel to ensure excellent electrical conductivity and corrosion resistance.
Made from durable Polybutylene Terephthalate housing material suitable for harsh environments. Operates reliably within the temperature range of -55°C to 125°C. Maximum contact resistance is specified at 20 milliohms for optimal signal integrity.
Meets performance level 2 as per IEC 60603-2 standards for industrial use. Ideal for use in backplane, rack connectors, and Eurocard racking systems. Manufactured in Germany, ensuring high-quality standards. This German-made HARTING connector guarantees premium quality and durability for industrial and laboratory electronic equipment.
Explore more DIN 41612 Connectors and industrial electronics components on EnvMart to support your projects with trusted hardware.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a pitch of 2.54 mm.
It can operate reliably within a maximum temperature of 125°C.
This model has 20 contacts arranged in 2 rows.
It uses solder termination for secure connections.
The housing is made from Polybutylene Terephthalate, suitable for harsh environments.
The maximum contact resistance is specified at 20 milliohms.
This connector has a straight orientation.
It has a current rating of 2A.
It is designed as a type C/2 sub-type.
This connector is ideal for use in backplane, rack connectors, and Eurocard racking systems.
The contacts are arranged in an A/B loading configuration.
It is manufactured in Germany, ensuring high-quality standards.
