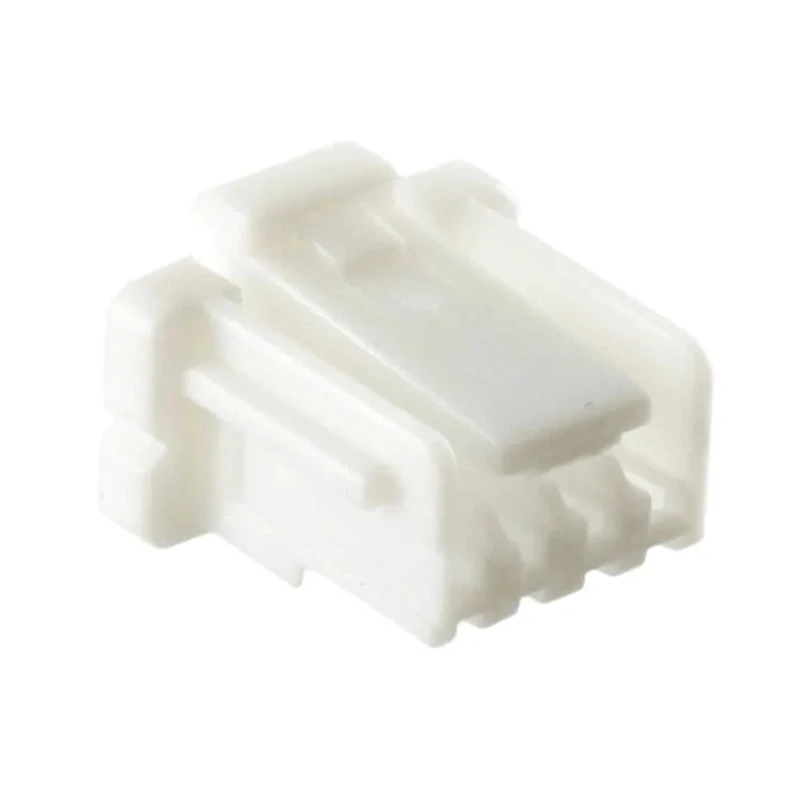

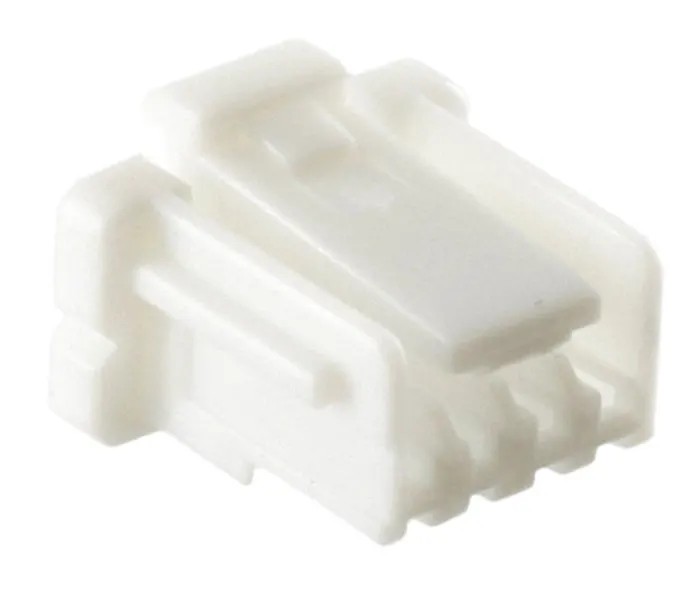

JST NSH Female Connector Housing 1 mm Pitch 4 Way 1 Row Straight NSHR-04V-S

JST NSHR-04V-S female connector housing is a precision 1.0 mm pitch wire-to-board connector designed for reliable PCB mounting applications. This connector housing supports 4 contacts arranged in a single row with a straight orientation, facilitating compact and efficient circuit board designs.

Constructed from robust polybutylene terephthalate material, it offers excellent durability and resistance to mechanical stress ensuring long-term usage in diverse environments. With dimensions of 6 mm length and 4.2 mm width, it is optimized for subminiature applications where space constraints are critical.

This NSH series connector includes a latch locking mechanism to provide secure mating with an audible click, enhancing connection reliability and assembly verification. Compatible with NSH SMT headers that feature solder retention, the housing supports both vertical and right angle mount PCB configurations.

The housing accepts SLEH series crimp socket contacts, which facilitate effective wire termination and easy assembly in harness manufacturing. Manufactured in Japan, this connector adheres to stringent quality controls but does not carry specific approvals or certifications.

JST NSHR-04V-S is widely used in electronics manufacturing, power and signal transmission, instrumentation, and automotive applications requiring compact and reliable PCB connector solutions. Its design balances ease of assembly, mechanical stability, and electrical contact integrity.

Designed for NSH series wire-to-board connections providing a secure female housing. Utilizes polybutylene terephthalate housing material for mechanical strength and durability. Compact dimensions of 6 mm length and 4.2 mm width enable space-saving PCB layouts.

Latch locking mechanism ensures reliable mating with audible confirmation. Suitable for SMT headers with solder retention in vertical or right-angle mounts. Accepts SLEH crimp socket contacts for efficient cable termination.

Manufactured in Japan under high-quality standards. No specific industry approvals or certifications listed.

This product is ideal for use in electronics manufacturing, power connectors, automotive electrical systems, instrumentation, and commercial electronic assemblies. Browse the Electronics Components category in EnvMart for compatible Connector Housings and accessories.
