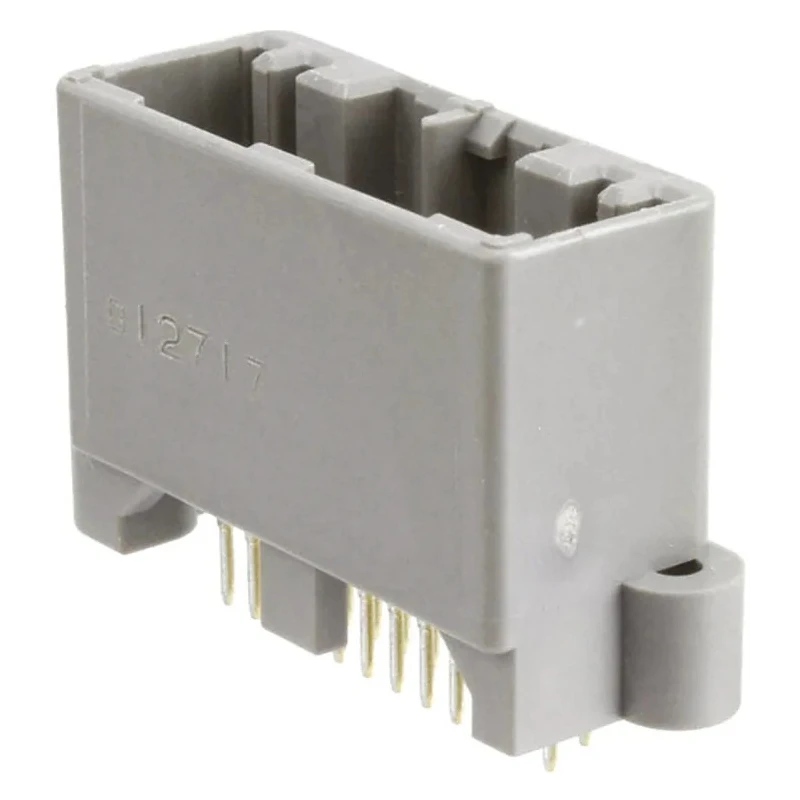

JAE MX34 Series Straight Through Hole PCB Header 40 Contacts 2.2 mm Pitch 2 Row Shrouded MX34
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Straight |
| Current | 3A |
| Model | MX34 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Syndiotactic Polystyrene |
| Contact Material | Brass |
| Series | MX34 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.2mm |
| Contact Plating | Tin |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| For MX34 socket housings see typical stock numbers | 690-9852 |
Key Features
- Designed for automotive and industrial electronic applications.
- Features a durable glass filled syndiotactic polystyrene housing.
- Brass male contacts with tin plating ensure corrosion resistance.
- Rated for up to 3A current and operating temperature range from -40°C to 85°C.
- Through-hole mount type provides strong PCB mechanical stability.
- Shrouded connector improves contact protection and secure mating.
- Reduces mating/unmating force to 80N or less for ease of assembly.
- Double locking mechanism enhances connection reliability.
Product Description
JAE MX34 Series PCB Header MX34 is a high-quality, straight through-hole connector designed for automotive and industrial electronic applications requiring reliable wire-to-board connections. This model features 40 male contacts arranged in 2 rows with a pitch of 2.2 mm and a robust shrouded housing made from glass filled syndiotactic polystyrene, ensuring excellent durability and electrical insulation.
The brass contacts are plated with tin to provide corrosion resistance, suitable for harsh environmental conditions. Rated for a maximum current of 3A, this connector can operate across a broad temperature range from -40°C to 85°C, making it ideal for demanding automotive electronics and other industrial uses.
The through-hole mount type gives strong mechanical stability when soldered to printed circuit boards, and the shrouded design provides improved contact protection and secure mating. The connector is engineered to reduce the mating and unmating force to 80N or less, facilitating easier assembly and maintenance.
Additional features include a preset double locking mechanism to prevent incomplete insertion and a lock spring equipped with a bridge that protects the contacts from external mechanical loads, ensuring robust and reliable connections over time.
JAE MX34 Series PCB Headers are widely used in automotive connectors and industrial electronic equipment, supporting stable and secure wire-to-board interface solutions. Designed for automotive and industrial electronic applications.
Features a durable glass filled syndiotactic polystyrene housing. Brass male contacts with tin plating ensure corrosion resistance. Rated for up to 3A current and operating temperature range from -40°C to 85°C. Through-hole mount type provides strong PCB mechanical stability.
Shrouded connector improves contact protection and secure mating. Reduces mating/unmating force to 80N or less for ease of assembly. Double locking mechanism enhances connection reliability. Bridge lock spring protects contacts from external mechanical load.
Explore the JAE MX34 Series PCB Headers within EnvMart’s comprehensive Electronics Components category for professional industrial applications and reliable quality connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JAE MX34 Series PCB Header is rated for a maximum current of 3A.
It can operate within a temperature range from -40°C to 85°C.
This model features 40 male contacts arranged in 2 rows.
The housing is made from glass filled syndiotactic polystyrene, and the contacts are brass with tin plating for corrosion resistance.
It uses a through-hole mount type, which provides strong mechanical stability when soldered to printed circuit boards.
The pitch of the contacts is 2.2 mm.
Yes, it features a double locking mechanism to enhance connection reliability and prevent incomplete insertion.
The termination type for this model is solder.
The orientation of this PCB header is straight.
It is designed for automotive and industrial electronic applications requiring reliable wire-to-board connections.
The shrouded design improves contact protection and ensures secure mating, while also reducing the mating/unmating force to 80N or less.
The country of origin for this model is India.
