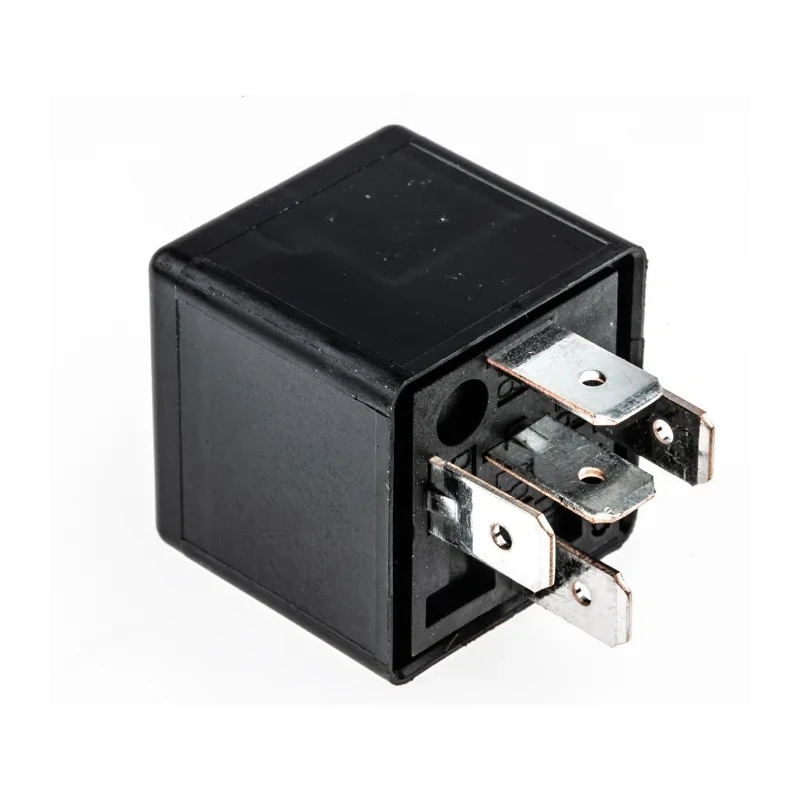

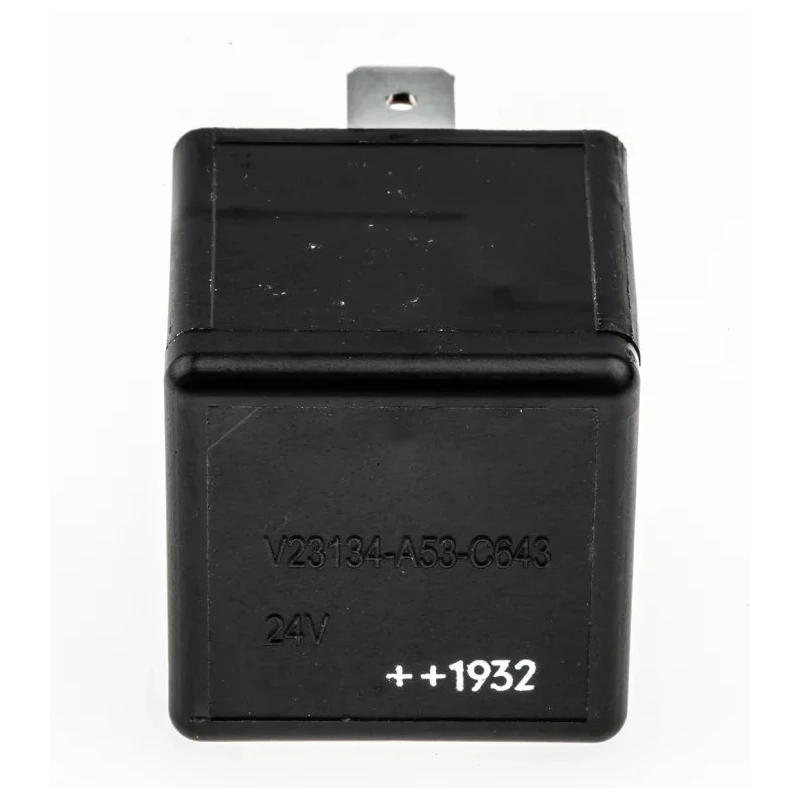

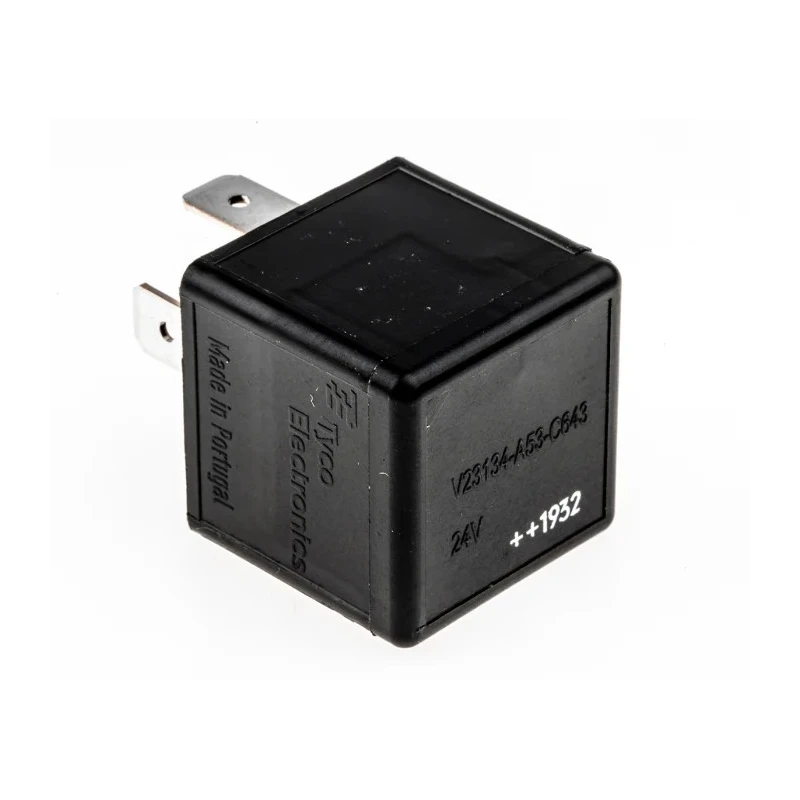

TE Connectivity Automotive Relay, Mini ISO F4 Series, 24V DC Coil Voltage, 1.6W Coil Power, 20A V23134A0053C643 5-1393302-1
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 51.9mm |
| Length | 25.9mm |
| Model | V23134A0053C643 5-1393302-1 |
| Depth | 29.9mm |
| Contact Material | Silver |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 324Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500V |
Key Features
- Mini ISO F4 series relay with quick connect plug-in terminals.
- Coil power of 1.6W and coil resistance of 324Ω for reliable operation.
- Single pole, double throw (SPDT) contact configuration for versatile switching.
- Silver contact material ensures excellent conductivity and durability.
- Operating temperature range from -40°C to 125°C for harsh environments.
- 500V isolation between coil and contacts enhances electrical safety.
- Suitable for automotive uses including ignition lock, fuel pump, ABS, and wiper control.
- Manufactured in Portugal with robust construction and dust protection (IP54 rated).
Product Description
TE Connectivity V23134A0053C643 5-1393302-1 is a Mini ISO automotive relay from the F4 series designed for automotive electrical control systems. It features a 24V DC coil voltage and provides a switching current capacity of 20A, suitable for a variety of applications including ignition locks, fuel pumps, ABS, electric power steering, and wiper controls.
The relay employs quick connect plug-in terminals for easy installation and maintenance. The coil power rating is 1.6W with a coil resistance of 324Ω, ensuring efficient energy use and reliable actuation. With a single pole double throw (SPDT) contact configuration and silver contact material, it guarantees outstanding electrical conductivity and durability for demanding automotive environments.
Its compact physical dimensions of 25.9mm length, 51.9mm height, and 29.9mm depth allow integration in tight spaces. This relay is protected against dust ingress with an IP54 rating and has an operating temperature range from -40°C up to 125°C, making it fit for demanding environmental conditions.
The isolation between coil and contacts is rated at 500V, providing high safety margins in automotive circuits. The product is manufactured in Portugal, reflecting rigorous quality standards and precision engineering inherent to TE Connectivity relays.
Mini ISO F4 series construction with quick connect terminals. 24V DC coil voltage providing 1.6W coil power output. Switching current capability of 20A with SPDT contact configuration. Silver contact material for enhanced conductivity and longevity.
Operating temperature range from -40°C to 125°C for harsh automotive conditions. Compact size facilitates use in limited space automotive assemblies. 500V isolation between coil and contact ensures safety and reliability.
Dust protected to IP54, suitable for automotive environments. Applications include ignition lock control, fuel pumps, ABS, electric power steering, wiper control, car alarms, and blower fans.
This TE Connectivity automotive relay is ideal for industrial, automotive manufacturing, and maintenance applications requiring durable and reliable switching components. It ensures dependable operation in various automotive electrical systems, making it a trusted choice for OEMs and repair professionals.
Explore more Automotive Relays and electrical components from EnvMart to support your automotive projects and maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V DC.
It has a switching current capacity of 20A.
This relay features a single pole, double throw (SPDT) contact configuration.
The operating temperature range is from -40°C to 125°C.
It employs quick connect plug-in terminals for easy installation.
The contacts are made of silver, which ensures excellent conductivity.
The coil power rating is 1.6W with a coil resistance of 324Ω.
There is a 500V isolation between the coil and contacts, enhancing electrical safety.
The relay has dimensions of 25.9mm in length, 51.9mm in height, and 29.9mm in depth.
Yes, it is rated IP54 for dust protection and operates within a wide temperature range, making it suitable for harsh automotive environments.
It is suitable for applications including ignition locks, fuel pumps, ABS, electric power steering, and wiper controls.
This automotive relay is manufactured in Portugal.
