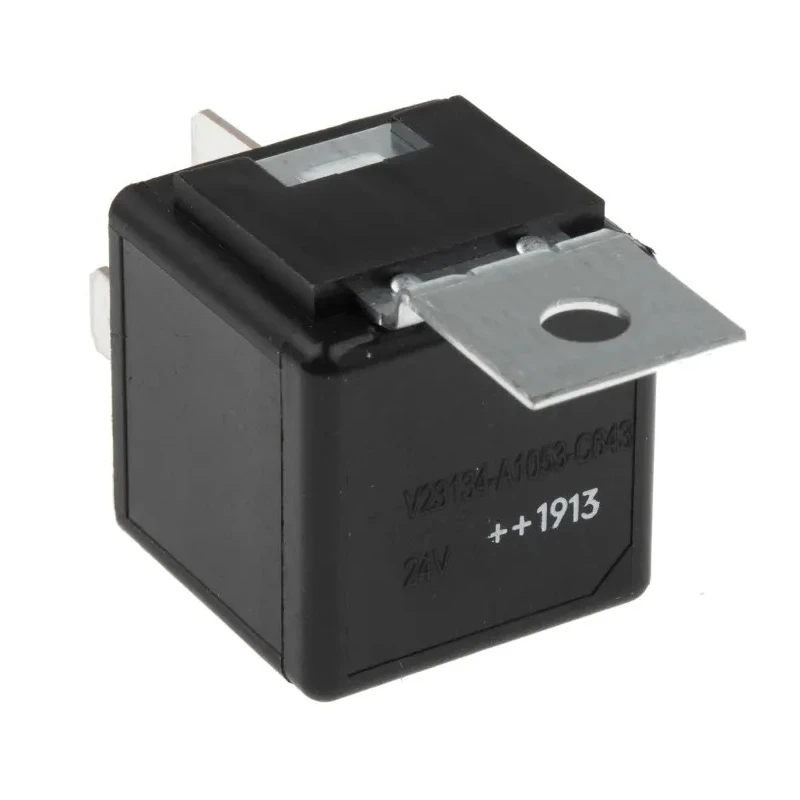

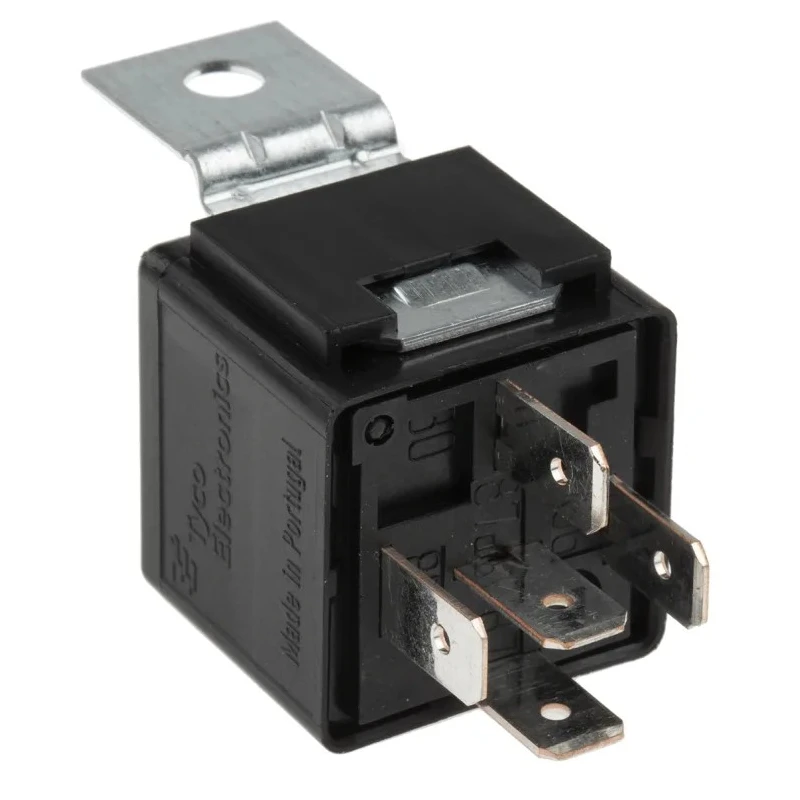

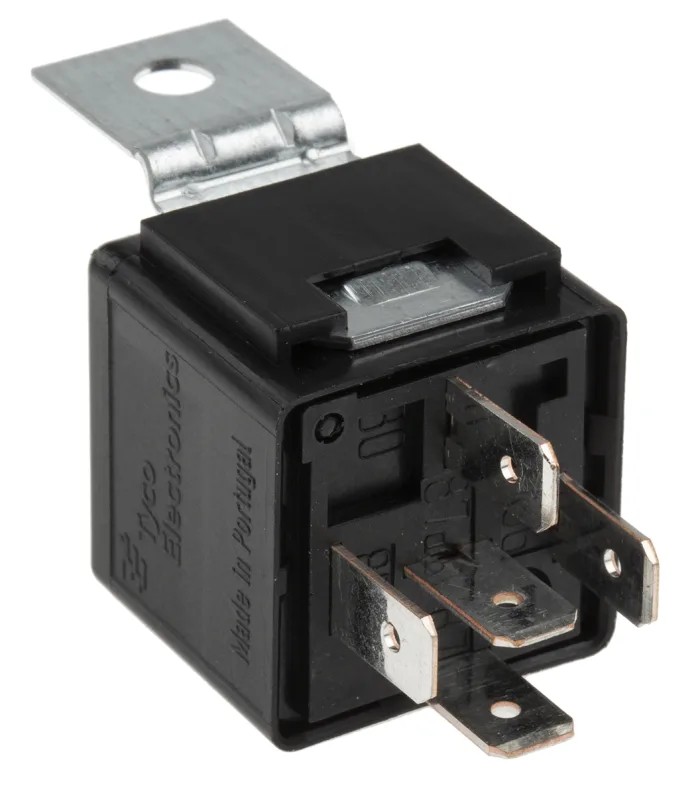

TE Connectivity Automotive Relay 24V DC Coil Voltage 40A Switching Current SPDT V23134A1053C643 6-1393302-3
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 25.2mm |
| Length | 26.2mm |
| Model | V23134A1053C643 6-1393302-3 |
| Depth | 26.2mm |
| Contact Material | Silver |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 332Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500V |
Key Features
- This relay features a 1.6W coil power with coil resistance of 332 ohms.
- It is a single-pole, double-throw contact configuration suited for switching multiple circuits.
- Terminal type is quick connect for easy installation.
- Operates reliably in a temperature range from -40°C to 125°C.
- Compact dimensions of 25.2mm height, 26.2mm depth, and 26.2mm length ensure integration in tight spaces.
- Coil to contact isolation voltage of 500V provides robust electrical insulation.
- Utilizes silver contact material for enhanced conductivity and durability.
- Part of the F4 series known for dust protection rated at IP54.
Product Description
TE Connectivity V23134A1053C643 6-1393302-3 automotive relay is designed for high performance and reliability in automotive electrical systems. Operating at a coil voltage of 24V DC and supporting a switching current of 40A, this SPDT relay integrates seamlessly into multiple automotive functions, including ignition locks, lighting systems, and safety controls.
The relay operates with a coil power of 1.6W and a precise coil resistance of 332Ω, ensuring efficient electromagnetic operation. Featuring a robust silver contact material, it delivers excellent conductivity and endurance under varying electrical loads and environmental conditions.
With a compact size of 25.2mm in height and 26.2mm in both depth and length, this relay is optimized for space-constrained automotive assemblies. The quick connect terminal type facilitates straightforward and secure electrical connections during installation.
It is built to function reliably from a minimum temperature of -40°C up to a maximum of 125°C, suited for the rigorous thermal environment found in automotive applications. The coil to contact isolation of 500V ensures safety and prevents unintended electrical interference within vehicle circuits.
Belonging to the F4 series Mini ISO automotive relays, this component is protected against dust ingress to IP54 standards, enhancing durability and lifespan. It is ideal for various automotive control systems such as ABS, fuel pump management, electric power steering, and vehicle alarm systems.
1.6W coil power with 332Ω resistance. SPDT contact configuration with silver contacts. Quick connect terminal for ease of installation. Operational temperature from -40°C to 125°C. Compact dimensions: 25.2mm (H) x 26.2mm (D) x 26.2mm (L).
500V coil to contact isolation. Dust protected to IP54. Suitable for ignition, lamp load, emission control, ABS, power steering, wipers, alarms, and blower fan applications. Manufactured in Portugal under ISO 7880 and ISO 7588.
This automotive relay enhances vehicle electrical performance and reliability while complying with international automotive standards. It is a reliable choice for industrial automotive manufacturing, repair, and aftermarket upgrades.
Explore more quality Automotive Relays and components available in the Electronics & Electricals category at EnvMart for professional and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V DC.
It supports a maximum switching current of 40A.
This model features a single-pole, double-throw (SPDT) contact configuration.
The relay has compact dimensions of 25.2mm in height, 26.2mm in depth, and 26.2mm in length.
It has a coil power of 1.6W and a coil resistance of 332 ohms.
The relay operates reliably within a temperature range from -40°C to 125°C.
It utilizes a quick connect terminal type for easy installation.
The coil to contact isolation voltage is 500V, providing robust electrical insulation.
The contacts are made of silver, which enhances conductivity and durability.
This model is rated for dust protection at IP54 standards.
It is manufactured in Portugal.
It is suitable for various automotive control systems such as ignition locks, lighting systems, and safety controls.
