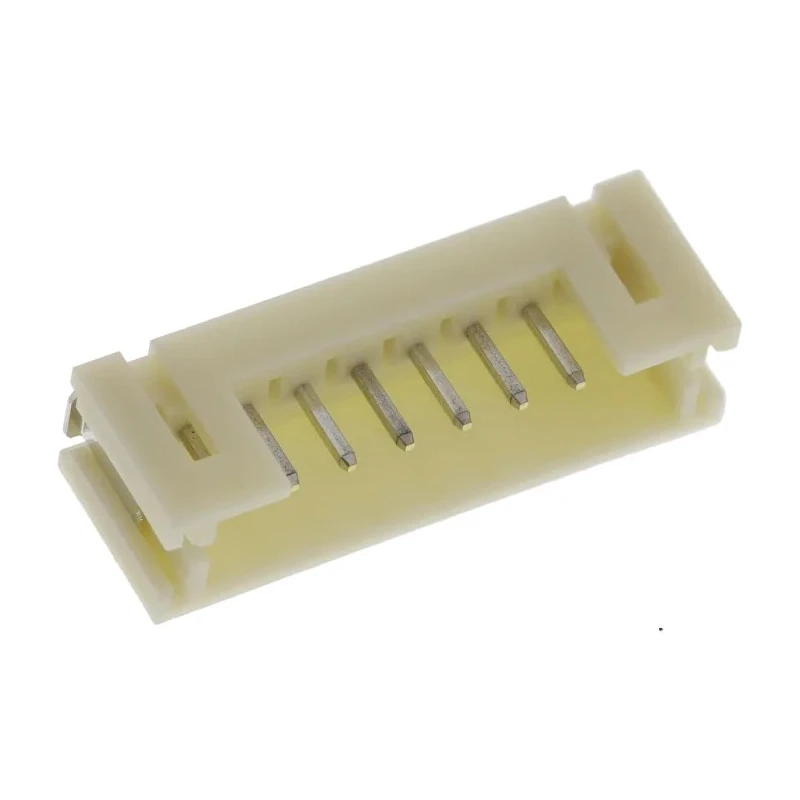

JST PH Series Straight Surface PCB Header 8 Contacts 2 mm Pitch 1 Row Shrouded B8B-PH-SM4-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PH Series Straight Surface PCB Header 8 Contacts 2 mm Pitch 1 Row Shrouded B8B-PH-SM4-TB(LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	JST
Orientation	Straight
Current	2A
Model	B8B-PH-SM4-TB(LF)(SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This header has 8 male copper alloy contacts with tin plating for corrosion resistance.
It features a surface mount type and straight orientation for easy PCB integration.
The polyamide housing material ensures durability and is fully shrouded for secure contact shielding.
Designed for a current rating of 2 amps and voltage rating of 100 V AC.
Operating temperature range is from -25°C to 85°C to suit diverse electronic environments.
Termination is by solder, suitable for surface mount technology (SMT) applications.
The product includes a retention mechanism to secure PCB placement.
Ideal for high-density internal wiring connections in electronic devices.

Product Description

The JST B8B-PH-SM4-TB(LF)(SN) PH Series Straight Surface PCB Header is a high-density wire-to-board connector designed for modern electronics requiring compact, reliable, and cost-effective PCB connectivity.

The header features 8 male contacts arranged in a single row with 2 mm pitch, made of copper alloy with tin plating to provide corrosion resistance and reliable electrical conduction.

Its polyamide housing is fully shrouded, providing mechanical protection and ensuring correct mating while preventing accidental contact with terminals. The surface mount type with straight orientation facilitates easy assembly and soldering onto printed circuit boards using standard SMT processes.

This connector supports a current capacity of 2 amps and a voltage rating of 100 volts AC, making it suitable for various consumer electronics, industrial equipment, and control systems.

It operates effectively within a temperature range of -25°C to 85°C, accommodating standard electronic operating environments. The B8B-PH-SM4-TB(LF)(SN) also features a PCB retention mechanism to ensure stability and durability during device usage and handling.

Common applications include internal wiring in electronic assemblies, communications devices, power supplies, and instrumentation. This header provides reliable and compact connectivity for electronic circuits. Fully shrouded housing ensures safety and secure connections.

Surface mount design enables efficient PCB assembly processes. Rated for 2A current and 100V voltage, supporting a wide range of applications. Durable under temperatures from -25°C to 85°C for versatile usage. Explore further PCB Headers and Connectors at EnvMart for compatible installation solutions and high-quality electronic components.
