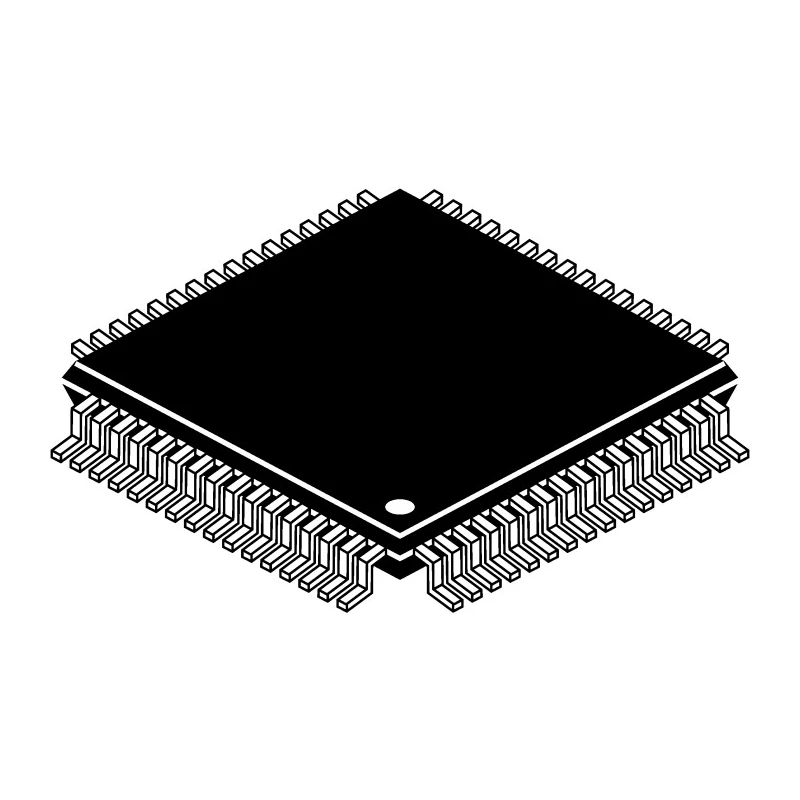

MaxLinear 4-Channel UART Interface IC 64-Pin LQFP Surface Mount ST16C554DCQ64-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 1.6mm |
| Length | 12mm |
| Model | ST16C554DCQ64-F |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Package Type | LQFP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 64 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.97V |
| Maximum Data Rate | 1.5Mbps |
| Transmit FIFO | 16bit |
| Receive FIFO | 16bit |
Key Features
- Features 4 independent UART channels for versatile multi-port applications.
- Surface mount device with a compact 64-pin LQFP package type.
- Supports maximum data rates up to 1.5 Mbps for efficient transmission.
- Includes 16-bit transmit and receive FIFO buffers to optimize data flow.
- Operates within a supply voltage range from 2.97 V to 5.5 V.
- Designed to function reliably in operating temperatures from 0°C to 70°C.
- Physical dimensions measure 12 mm in length and 1.6 mm in height.
- Suitable for use with common CPU bus interfaces, supporting seamless integration.
Product Description
MaxLinear ST16C554DCQ64-F is a high-performance 4-channel Universal Asynchronous Receiver/Transmitter (UART) IC provided in a 64-pin Low-profile Quad Flat Package (LQFP) surface mount format. Designed to support asynchronous serial data communication, this device is ideal for integration in complex electronic systems requiring multiple serial ports.
The IC supports a maximum data rate of 1.5 Mbps, suitable for demanding data transmission environments. It features 16-bit deep FIFO buffers for both transmit and receive paths, ensuring smooth data flow with reduced CPU overhead. Compatible with standard CPU interfaces, including 8-bit VLIO, it offers flexibility for various control architectures.
Operating within a voltage range of 2.97 V to 5.5 V, the ST16C554DCQ64-F maintains stable operation at industrial operating temperatures from 0°C to 70°C. The device does not carry specific standards or automotive certifications, but its robust design makes it suitable for a broad array of applications in industrial, communications, embedded systems, and laboratory equipment.
Its compact physical footprint with dimensions of 12 mm length and 1.6 mm height allows for dense PCB layouts and efficient space usage. The product's surface mount package simplifies high-volume manufacturing with automated soldering processes.
The ST16C554DCQ64-F is commonly employed in embedded system designs requiring multiple UART ports such as industrial automation, networking equipment, telemetry, and control systems.
Features 4 independent UART channels for versatile multi-port applications. Surface mount device with a compact 64-pin LQFP package type. Supports maximum data rates up to 1.5 Mbps for efficient transmission. Includes 16-bit transmit and receive FIFO buffers to optimize data flow.
Operates within a supply voltage range from 2.97 V to 5.5 V. Designed to function reliably in operating temperatures from 0°C to 70°C. Physical dimensions measure 12 mm in length and 1.6 mm in height. Compatible with various CPU bus interfaces including 8-bit VLIO.
Ideal for industrial, communication, embedded systems, and laboratory applications. Explore additional Interface ICs and related semiconductor components on EnvMart to meet your advanced electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ST16C554DCQ64-F supports a maximum data rate of 1.5 Mbps, suitable for efficient data transmission in various applications.
It operates within a supply voltage range of 2.97 V to 5.5 V, ensuring stable performance across various conditions.
The physical dimensions of this model are 12 mm in length and 1.6 mm in height, allowing for compact PCB layouts.
This model features 4 independent UART channels, making it versatile for multi-port applications.
It is provided in a 64-pin Low-profile Quad Flat Package (LQFP) surface mount format, facilitating high-volume manufacturing.
The device is designed to function reliably within an operating temperature range from 0°C to 70°C.
It includes 16-bit transmit and receive FIFO buffers, which help optimize data flow and reduce CPU overhead.
Yes, it is compatible with standard CPU interfaces, including 8-bit VLIO, allowing for flexible integration in various systems.
This model is suitable for applications in industrial automation, networking equipment, telemetry, and control systems.
The country of origin for this device is India.
The maximum operating temperature for the ST16C554DCQ64-F is 70°C, ensuring it can function in various environments.
It optimizes data flow through its 16-bit FIFO buffers for both transmit and receive paths, reducing CPU overhead during operation.
