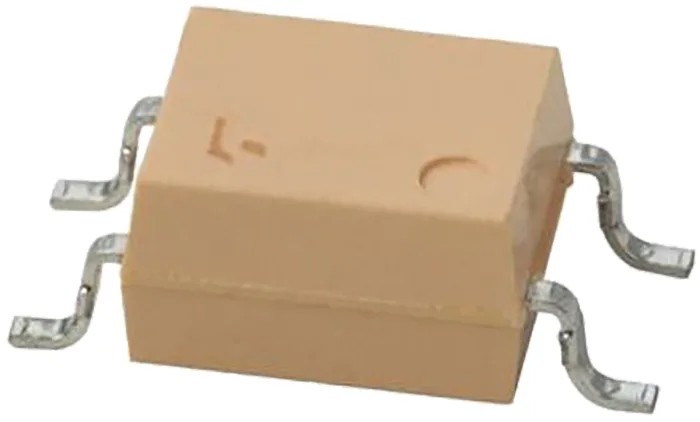

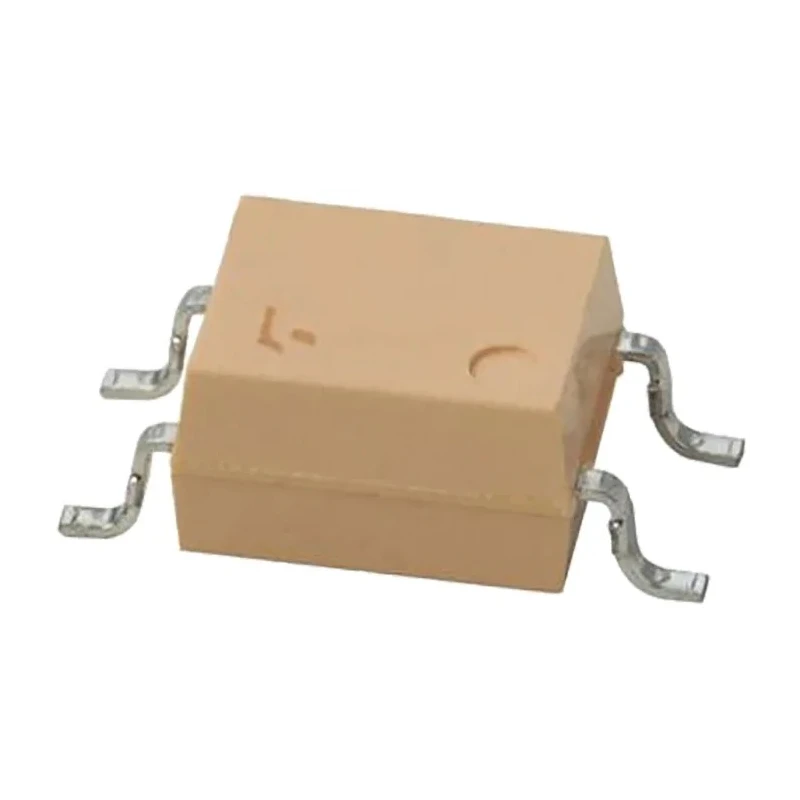

Toshiba DC Input Optocoupler Surface Mount 4-Pin SOIC TLP3906(E(O

Toshiba TLP3906(E(O is a high-performance DC input optocoupler designed for surface mount applications utilizing a 4-pin SOIC package. It is engineered to provide reliable electrical isolation between input and output circuits with a photovoltaic output configuration. This optocoupler is optimized for use in industrial, electronic, and control systems requiring robust signal isolation and fast switching capabilities.

The device supports a maximum forward voltage of 1.8V and a maximum input current of 30mA, operating efficiently with DC input currents. It achieves rapid switching with a typical rise time of 0.2ms and fall time of 0.3ms, making it suitable for precise timing and signal control in electronic circuits.

Key operational features include an isolation voltage of 3.75kVrms which ensures compliance with stringent safety and performance standards, and a wide operating temperature range from -40°C to 125°C which supports deployment in harsh industrial environments. The optocoupler comes in embossed tape packaging, facilitating automated pick-and-place assembly methods.

It meets internationally recognized approvals including CSA Component Acceptance Service No.5A, UL1577, and EN60747-5-5, certifying its reliability and adherence to industry standards. Manufactured in Japan, it embodies Toshiba’s commitment to quality and innovation in optoelectronics.

The device features a maximum forward voltage of 1.8V suitable for low power applications. It supports DC input current with a maximum input current rating of 30mA. Typical rise and fall times are 0.2ms and 0.3ms respectively, enabling fast switching performance.

Isolation voltage is rated at 3.75 kVrms for robust electrical separation. Operating temperature range spans from -40°C to 125°C ensuring reliability in varying environments. Packaging is embossed tape suitable for automated assembly processes.

Compliant with CSA Component Acceptance Service No.5A, UL1577, and EN60747-5-5 standards. Manufactured in Japan ensuring high quality and stringent manufacturing standards.

This optocoupler is ideal for use in industrial automation, electronic instrumentation, signal isolation in control systems, and other applications requiring safe and fast electrical isolation. Explore Toshiba Optocouplers and related electronics components available at EnvMart for comprehensive technical solutions.
