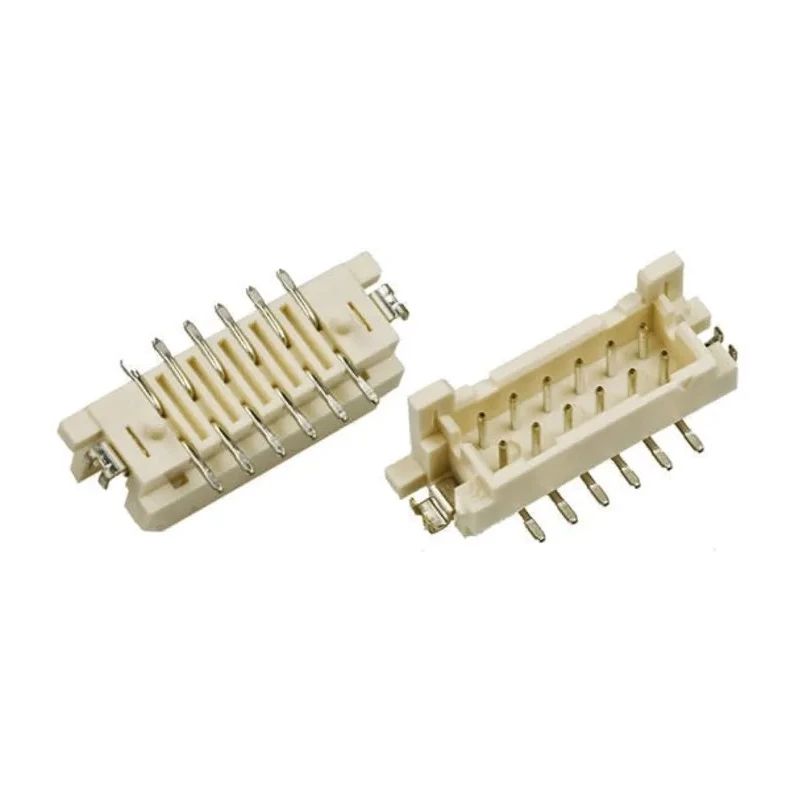

Hirose DF11 Series Straight Surface PCB Header 12 Contacts 2 mm Pitch 2 Row Shrouded DF11
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Compact double row design saves space with less than 5 mm depth.
- Shrouded housing with guide ribs prevents incorrect insertion and twisting.
- Locking mechanism secures connection to the mating connector.
- Contact plating is tin for corrosion resistance and reliable conductivity.
- Suitable for surface mount technology on PCBs.
- Operating temperature range from -30°C to 85°C allows versatile applications.
- Rated for 2 A current and 250 V voltage ensuring dependable electrical performance.
- Copper alloy contacts ensure durability and signal integrity.
Product Description
Hirose DF11 Series Straight Surface PCB Header, model DF11, features a compact 2.00 mm pitch and 2 row shrouded design providing robust and space-saving board-to-board and wire-to-board electrical connections. This header connector offers 12 male contacts with copper alloy material and tin plating ensuring excellent electrical conductivity and corrosion resistance. The shrouded polyamide housing includes guide ribs to prevent mismating and twisting, and a reliable locking mechanism guarantees secure mating with connector housings.
Designed with a compact depth below 5 mm, it allows a double row contact arrangement within the space usually required for a single row connector, making it ideal for space-constrained electronic devices. The surface mount termination type with metal fittings reinforces mechanical retention on PCBs and prevents solder joint issues.
This component operates safely within a temperature range of -30°C to 85°C and is rated for 2 A current and 250 V voltage suitable for various industrial and consumer electronics applications. Typical use cases include digital cameras, LCD display panels, digital video recorders, car navigation systems, access control units, and precision measurement instruments.
The DF11 series headers mate with corresponding DF11 series connector housings and PCB sockets, supporting flexible system integration between wire-to-board and board-to-board configurations. The product maintains high reliability through enhanced mechanical retention and prevention of incorrect insertion errors.
Compact double row design saves space with less than 5 mm depth. Shrouded polyamide housing with guide ribs prevents mismating and twisting. Locking mechanism to secure mating connection. Copper alloy contacts with tin plating for durability and conductivity.
Metal fittings enhance retention and prevent solder peeling in SMT versions. Surface mount termination for reliable PCB assembly. Operational temperature range -30°C to 85°C. Rated current 2 A and voltage 250 V. Suitable for digital cameras, LCD displays, video recorders, car navigation, and measurement devices.
Mates with DF11 series connector housings and PCB sockets for versatile applications. Explore the comprehensive range of PCB connectors in the Electronics & Electricals category at EnvMart for reliable industrial and commercial component solutions.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2 mm.
This model features 12 male contacts.
It operates within a temperature range of -30°C to 85°C.
This connector is rated for 250 V voltage and 2 A current.
The contacts are made of copper alloy with tin plating for corrosion resistance and conductivity.
It supports surface mount termination for reliable PCB assembly.
The shrouded design includes guide ribs to prevent incorrect insertion and twisting, ensuring a secure connection.
The housing material is polyamide.
It is suitable for applications such as digital cameras, LCD display panels, digital video recorders, and car navigation systems.
This model supports both board-to-board and wire-to-board configurations.
It features a reliable locking mechanism and metal fittings that enhance retention and prevent solder joint issues.
The country of origin for this product is India.
