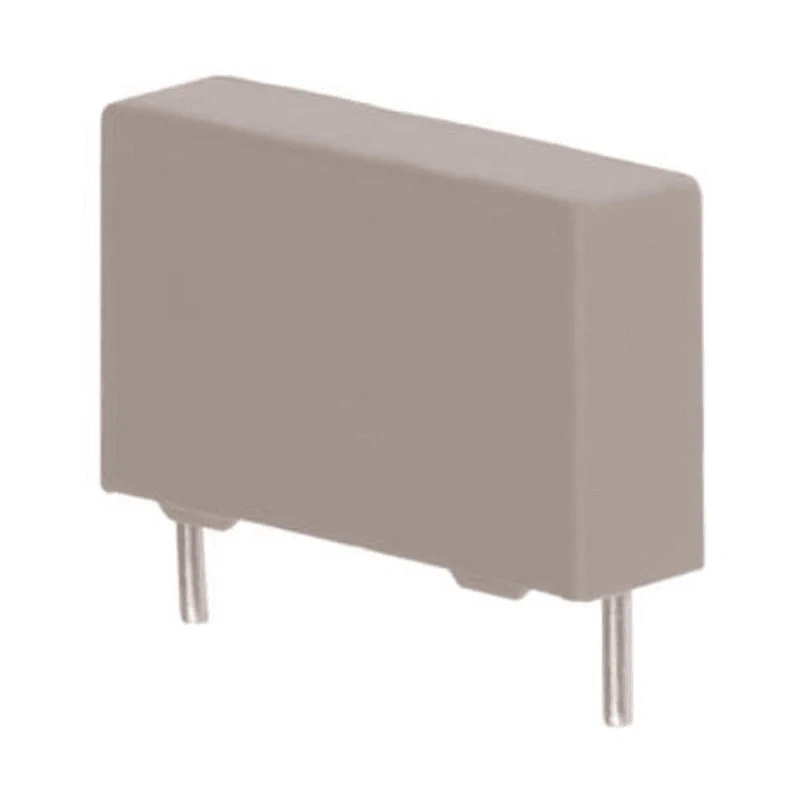

Vishay MKP 338 Film Capacitor X1, ±20 %, 22 nF 1000 V dc 440 V ac Through Hole BFC233860223
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 13.5mm |
| Length | 17.5mm |
| Model | BFC233860223 |
| Width | 7mm |
| Mount Type | Through Hole |
| Series | MKP 338 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Lead Length | 3.5mm |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 440V ac |
| Rated DC Voltage | 1000V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Dielectric | Polypropylene |
| Suppression Class | X1 |
Key Features
- Features a plastic case with epoxy sealing resin that is flame-retardant per UL 94 V-0.
- Polypropylene dielectric ensures stable performance and self-healing capability.
- Designed for operation between -55°C and 105°C wide temperature range.
- Lead pitch measures 15 mm with 0.8 mm diameter and 3.5 mm lead length suitable for solder mounting.
- Pin count consists of 2 leads for secure circuit integration.
- Suitable for suppression class X1 applications, offering electric noise reduction across mains supply.
- UL recognized and CSA approved for industrial and commercial electronics uses.
- Warnings indicate it should not be used in positions where capacitor failure might cause an electric shock risk.
Product Description
Vishay BFC233860223 MKP 338 Film Capacitor X1, ±20 % tolerance, with a capacitance of 22 nF, rated at 1000 V dc and 440 V ac, is designed for through hole mounting applications in industrial and electronic devices. This capacitor features a polypropylene dielectric that provides self-repairing capabilities, enhancing durability and performance under electrical stress.
The plastic case is UL 94 V-0 rated flame-retardant epoxy resin, ensuring safety and longevity in demanding environments. Rated operating temperature ranges from -55°C to 105°C, making it suitable for diverse climatic conditions.
Compliant with IEC 60384-14:2013, EN 60384-14:2013, IEC 60065, and UL 60384-14 standards, this component meets stringent safety and quality requirements. It is UL recognized and CSA approved for industrial use.
The capacitor’s physical dimensions measure 17.5 mm in length, 13.5 mm in height, and 7 mm in width, with a lead pitch of 15 mm, lead diameter of 0.8 mm, and length of 3.5 mm. The two solder terminal pins support secure installation on printed circuit boards.
Suppression class X1 design makes it ideal for EMI/RFI noise suppression directly across mains supply lines while maintaining high electrical stability. Complies with IEC 60384-14:2013 and UL 60384-14 standards for safety and reliability.
Plastic, flame-retardant UL 94 V-0 epoxy sealed case enhances durability. Polypropylene dielectric offers stable capacitance and self-healing. Wide operating temperature range from -55°C to 105°C for harsh environments. Compact through hole mount with 15 mm lead pitch and solder terminals.
Rated at 1000 V dc and 440 V ac for high voltage applications. UL recognized and CSA approved for industrial and commercial electronics. Suppression class X1 suitable for EMI/RFI noise reduction on mains circuits. Dimensions optimized for compact PCB layout with 2 pins.
This Vishay film capacitor is widely used in electronics, power supplies, industrial control systems, HVAC equipment, and other applications requiring reliable noise suppression and stable capacitance. Its robust construction and approvals make it suitable for commercial and industrial manufacturing environments.
Explore more Vishay capacitors and electronic components on EnvMart to upgrade your designs with certified, high-quality parts.
Explore more products in our Film Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay MKP 338 Film Capacitor has a capacitance of 22 nF.
This capacitor is rated for 1000 V dc and 440 V ac.
It operates within a temperature range of -55°C to 105°C.
The lead pitch measures 15 mm, with a lead diameter of 0.8 mm.
This model is designed for through hole mounting applications.
The dimensions of the capacitor are 17.5 mm in length, 13.5 mm in height, and 7 mm in width.
It utilizes a polypropylene dielectric, which provides self-healing capabilities.
This capacitor is classified as suppression class X1, suitable for EMI/RFI noise reduction across mains supply.
It has 2 pins for secure circuit integration.
Yes, it is UL recognized and CSA approved for industrial and commercial electronics uses.
It is widely used in electronics, power supplies, industrial control systems, and HVAC equipment.
The capacitor features a plastic case with epoxy sealing resin that is flame-retardant per UL 94 V-0.
