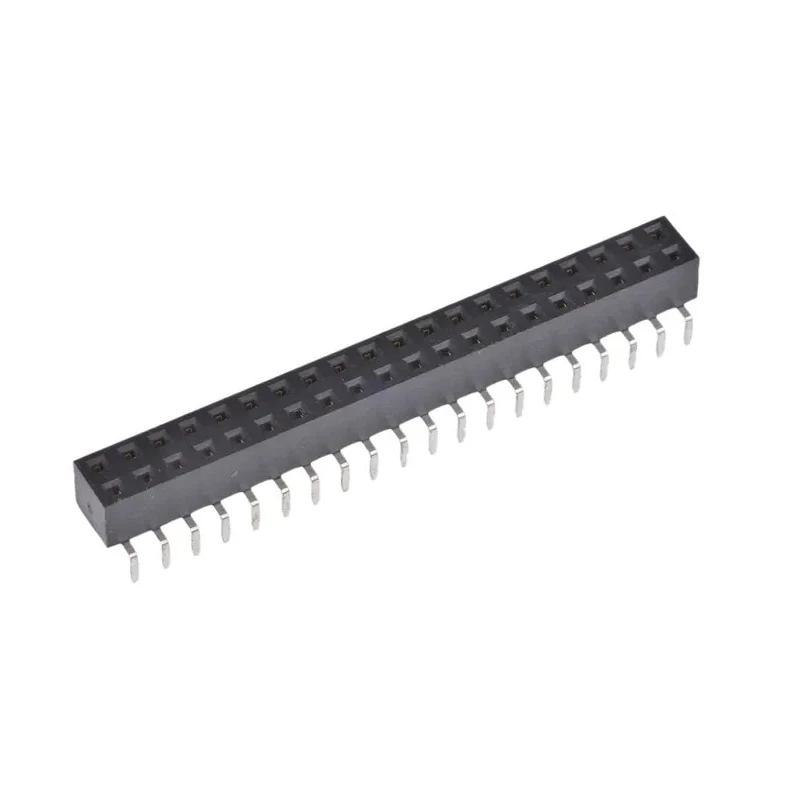

HARWIN M20 Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder M20-7852042

HARWIN M20-7852042 Series Straight Through Hole PCB Socket offers a highly reliable 40-contact, 2-row configuration with a 2.54 mm pitch designed to meet industry standards for board-to-board connectors. Manufactured with a nylon housing rated to UL94V-0, this socket withstands high temperature and reflow soldering processes while maintaining mechanical stability.

The dual beam bronze contacts plated with tin over nickel provide superior electrical connection quality and long-term durability for up to 300 mating cycles. This model features straight orientation, through hole mounting, and solder termination to ensure secure assembly on PCBs.

Operating over a wide temperature range from -40°C to 105°C, this PCB socket supports currents up to 12A per contact, making it suitable for various industrial, electronic, and communication systems. It complies with RoHS standards affirming its environmental safety and is optimally used in embedded PCs, motherboard connections, and large electronic systems.

The socket is ideal for applications requiring compact design solutions to increase PCB density and height restrictions without sacrificing connector reliability. It supports various sectors including consumer electronics, drives, controls, industrial monitoring, and personal computing.

Compact 2.54 mm pitch socket suitable for PCB mounting. Nylon housing material ensures durability and heat resistance. Dual beam bronze contacts with tin over nickel plating. Supports a current rating of up to 12A per contact.

Compatible with through hole solder termination and straight orientation. Operating temperature range from -40°C to 105°C. Meets RoHS standards for environmental compliance. Suitable for consumer electronics, communications, industrial monitoring, and embedded PC applications.

Choose HARWIN M20-7852042 PCB Sockets for enhanced connector reliability in demanding industrial and commercial electronic assemblies. Browse the Electronics Components category on EnvMart for a wide selection of similar PCB connectors and sockets.
