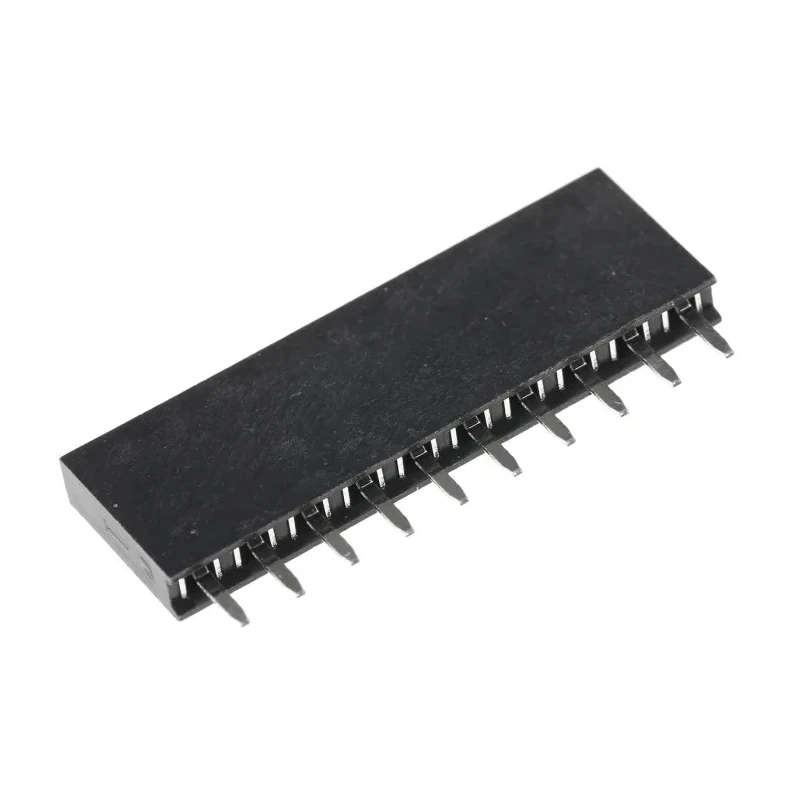

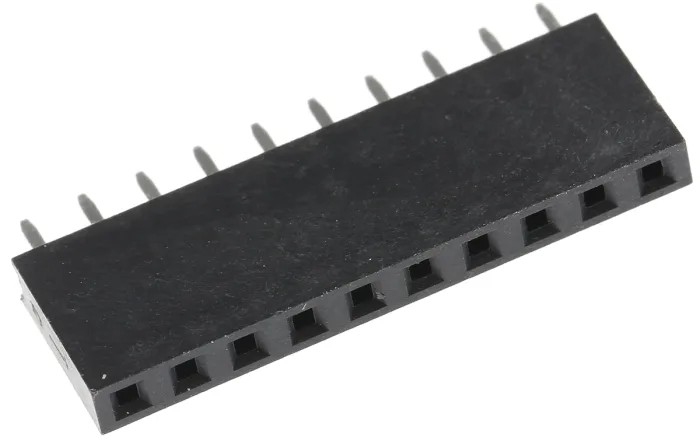

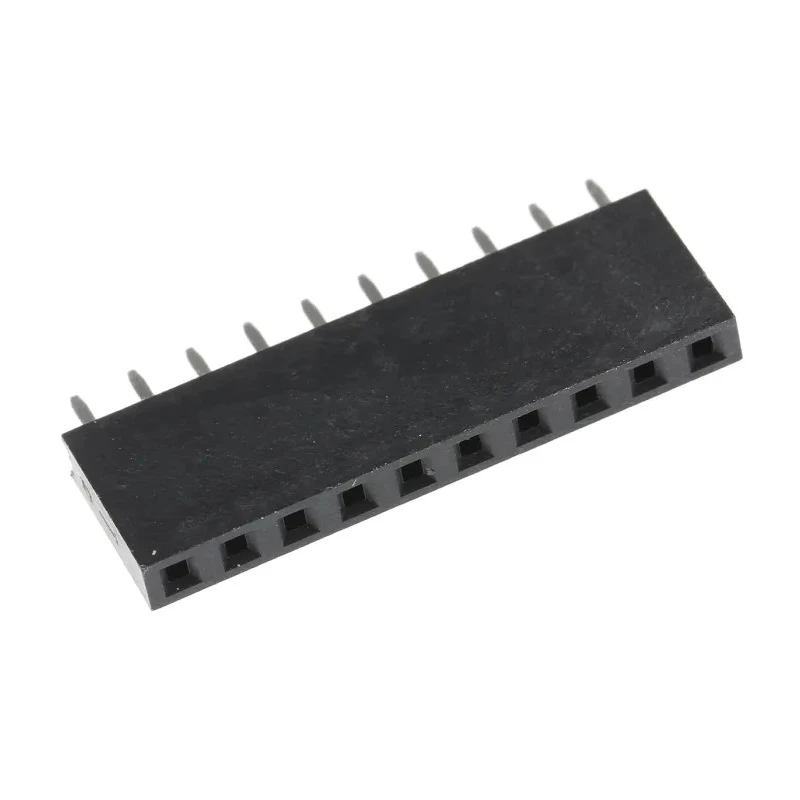

HARWIN M20 Series Straight Through Hole PCB Socket 10-Contact 1 Row 2.54 mm Pitch M20-7821046

Free Delivery in India | Lowest Global Shipping Charges

HARWIN M20 Series Straight Through Hole PCB Socket 10-Contact 1 Row 2.54 mm Pitch M20-7821046

Name: HARWIN M20 Series Straight Through Hole PCB Socket 10-Contact 1 Row 2.54 mm Pitch M20-7821046
Brand: HARWIN
SKU: 210681
Price: 1.27 USD
Availability: InStock



Category PCB Sockets Brand HARWIN Condition New

Specifications

Country of Origin	China
Brand	HARWIN
Orientation	Straight
Current	12A
Model	M20-7821046
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Bronze
Series	M20
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Tin over Nickel
Number of Contacts	10
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Designed with a compact 2.54 mm pitch for efficient PCB spacing.
Constructed from high-temperature nylon housing for enhanced durability.
Features 10 female bronze contacts with tin over nickel plating for reliable electrical connectivity.
Rated for a current of up to 12 A per contact ensuring robust performance.
Suitable for operating temperatures ranging from -55°C to 105°C.
Mount type is through hole with a straight orientation for easy PCB integration.
Compliant with RoHS standards, ensuring environmental safety.
Durable dual beam contacts accommodate up to 300 mating operations.

Product Description

HARWIN M20-7821046 is a high-performance PCB socket from the M20 series featuring a straight through hole design with 10 female contacts arranged in a single row with 2.54 mm pitch. It is constructed with a high-temperature nylon housing that meets UL94V-0 requirements, making it suitable for reflow soldering processes and harsh operating environments.

The bronze contacts plated with tin over nickel ensure excellent electrical conductivity and corrosion resistance. Rated for 12 A current per contact and able to withstand temperatures from -55°C to 105°C, this socket supports reliable and durable connectivity in board-to-board electronic systems.

The M20 series socket is designed for consumer electronics, embedded PCs, large electronic systems, communications equipment, drives and controls, and industrial monitoring applications. Its compact form factor helps optimize PCB density and height constraints.

Key features include a robust dual beam contact design capable of over 300 mating cycles, straight orientation mounting, and compliance with RoHS environmental standards. This connector supports the demands of advanced electronics requiring durability and consistent performance.

Compact 2.54 mm pitch for efficient PCB layout. High-temperature nylon housing compliant with UL94V-0. Reliable bronze contacts plated with tin over nickel. 12 A current rating per contact. Operating temperature range of -55°C to 105°C.

Through hole straight mount for secure PCB integration. RoHS compliant for environmental safety. Robust dual beam contact design for increased connector life. Suitable for multiple industrial and commercial electronic applications.

The package includes one HARWIN M20 series 10-contact straight through hole PCB socket with a single row configuration and solder termination. This product originates from China and is provided new.
