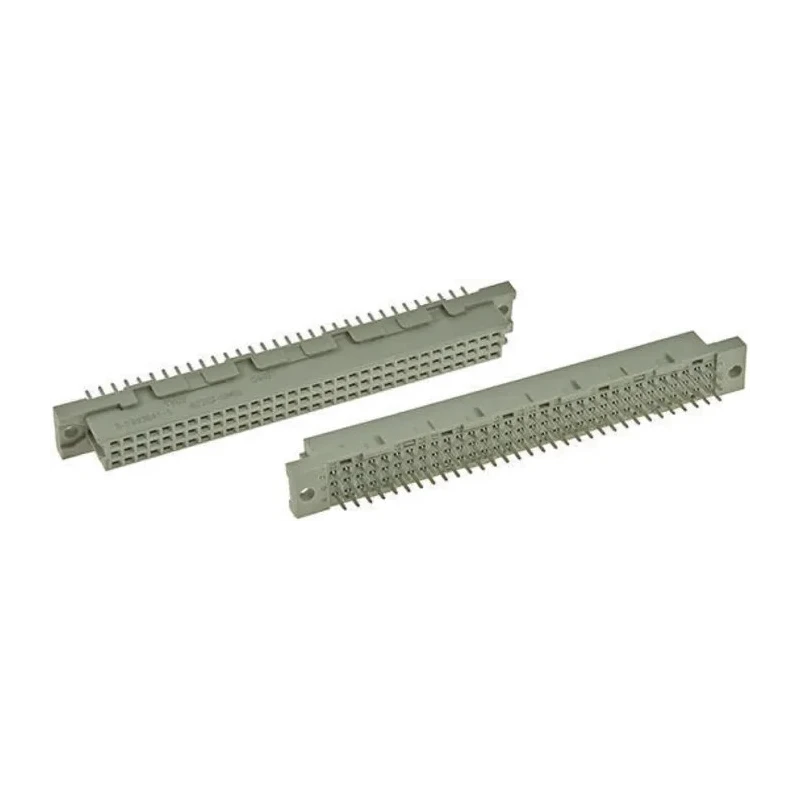

TE Connectivity Eurocard DIN 41612 Connector 64 Way 2.54 mm Pitch Type C/2 Solder Class C2 3 Row Male 5650945-5

TE Connectivity 5650945-5 Eurocard DIN 41612 Connector is a high-performance 64-way 2.54 mm pitch connector designed to meet DIN 41612 and IEC 60603-2 international standards. It features a robust solder termination on a through-hole mount and belongs to Type C/2 with Class C2 solder class, making it suitable for reliable industrial and electronic applications.

The connector has three rows of male contacts with a right-angle orientation and A/C row loading, ensuring compatibility with common Eurocard bus systems. Its contacts are made from copper alloy plated with tin, offering excellent conductivity and corrosion resistance under various operating temperatures from -55°C to 105°C. The housing is constructed from flame retardant polymer material with built-in polarization features to prevent mis-mating. Additionally, options for board locks provide secure retention to printed circuit boards.

These connectors are commonly used in high-speed railway electronics, industrial control distributed control systems (DCS), data centers, telecommunications equipment, and backplane and motherboard assemblies. They support applications in server infrastructure, switching systems, and modular rack systems, providing high signal integrity and durability.

Available as part of the Eurocard series, this connector supports a range of types and selective contact loading options to meet diverse system configurations. Its design includes various solder post lengths and advanced contact tail types such as ACTION PIN and eye of needle, ensuring flexibility and performance.

This connector offers 64 contacts arranged in three rows with a pitch of 2.54 mm. It is designed for through-hole mounting with solder termination according to Class C2 standards. The housing material is a flame retardant polymer that enhances safety and durability.

Contact material is copper alloy with tin plating to ensure reliable electrical connections. Polarizing features and optional boardlocks prevent mis-mating and secure the connector on PCBs. Operating temperature ranges from -55°C to 105°C, suitable for harsh industrial environments.

Compatible with various bus systems such as STE Bus, CIMBUS, FUTUREBUS, and VMEBus. Ideal for industrial, telecommunications, data center, and modular rack applications. Explore related products and additional technical documents on EnvMart for comprehensive electronics component solutions.
