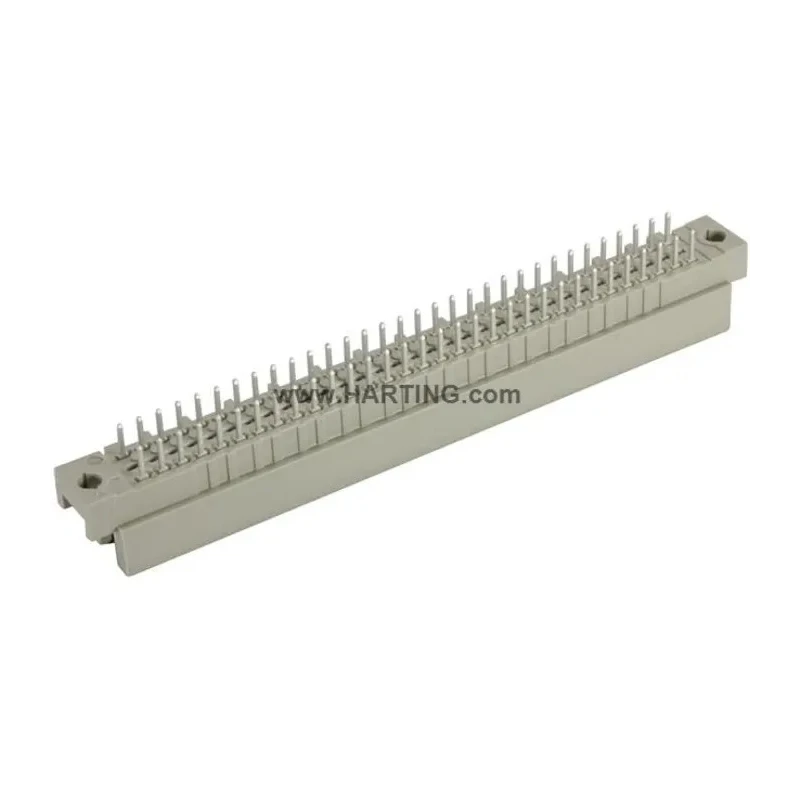

HARTING DIN 41612 Connector 96 Contacts 2.54 mm Pitch Type C/2 Solder Termination 3 Row Male Straight 09731966902

HARTING 09731966902 DIN 41612 Connector is a high-quality 96-contact electrical connector designed for backplane and rack applications in industrial, electronic, and power environments. Featuring a 2.54 mm pitch and a three-row male straight form factor, this connector offers reliable solder termination with Type C/2 configuration, making it ideal for PCB signal connections.

Constructed with copper alloy contacts plated with gold over nickel, the connector ensures excellent electrical conductivity and corrosion resistance, supporting a maximum current of 2 amperes per contact. The thermoplastic housing provides robust protection and can operate reliably within a temperature range from -55°C to 125°C.

Its class C2 rating guarantees high mating durability and reliability in demanding industrial and electronic manufacturing environments. The connector’s straight orientation and row loading A/B/C design enable compatibility with various 19-inch Eurocard racking systems, enhancing modularity and ease of installation.

Manufactured in Switzerland, the HARTING DIN 41612 Connector complies with stringent industry standards for backplane signal connectors, offering an economical and durable solution for electronic signal interconnections. Applications include telecommunications, industrial automation, and measurement instrumentation requiring secure, low-resistance connections.

Designed for use in PCB backplane signal applications ensuring stable electrical connections. Constructed with copper alloy contacts plated in gold over nickel for corrosion resistance. Features thermoplastic housing for durability and temperature resistance from -55°C to 125°C.

Capable of handling a maximum current of 2A per contact for moderate power requirements. Offers a maximum contact resistance of 20 milliohms for efficient signal transmission. Straight orientation with row loading A/B/C suitable for standard rack and backplane applications.

Class C2 contact class compliant, ensuring high mating reliability and durability. Manufactured in Switzerland with precision quality and adherence to DIN 41612 standards.

This connector is essential for industrial electronic assemblies, laboratory instrumentation, and communications equipment manufacturing. Explore more HARTING connectors to suit high-performance electronic interconnection needs on EnvMart.
