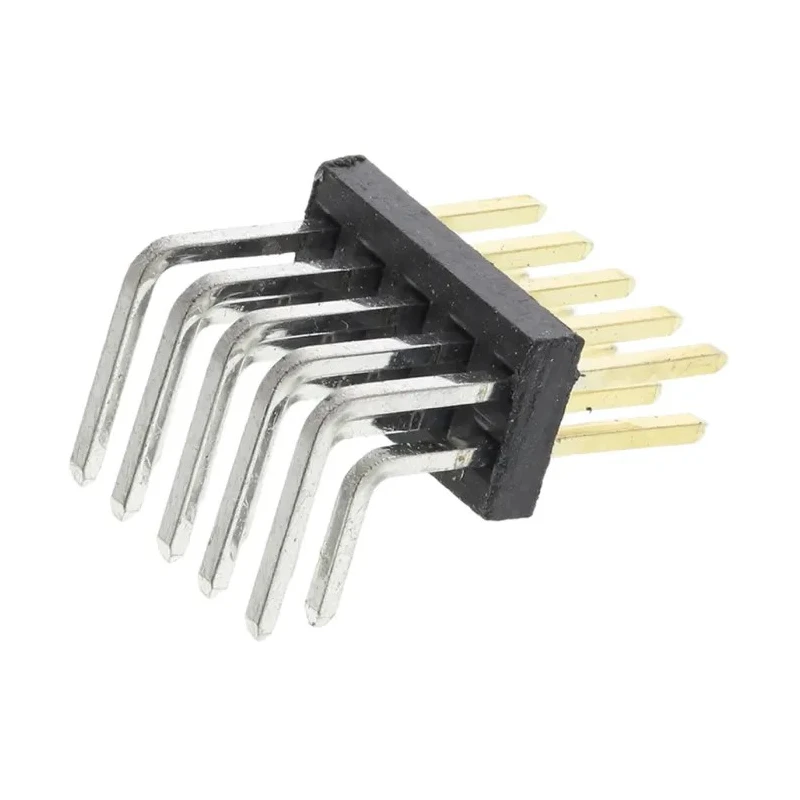

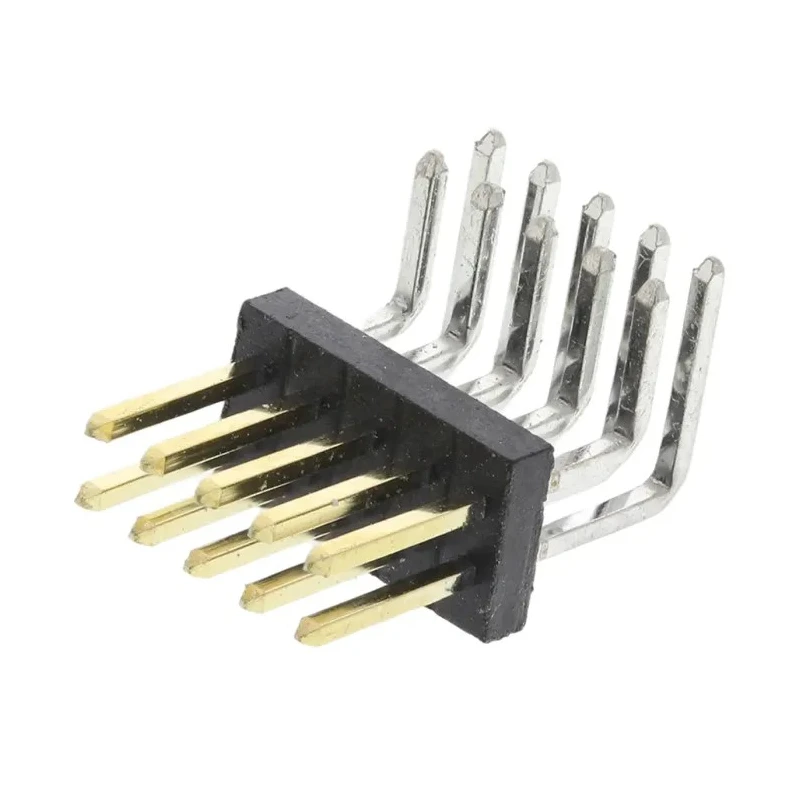

HARWIN Archer M50 Series Right Angle Through Hole Pin Header, 10 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded M50-3900542
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Right Angle |
| Current | 1A |
| Model | M50-3900542 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Archer M50 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2mm |
| Mating Pin Length | 3.8mm |
Key Features
- Features a right-angle orientation suitable for board-to-board and wire-to-board connectivity.
- Constructed with nylon housing for durability and insulation.
- Phosphor bronze contact material with gold plating ensures reliable electrical performance.
- Designed for through-hole mounting with solder termination type.
- Operates reliably within temperature range of -40°C to 105°C.
- Compact design beneficial for space-saving on PCBs.
- Tail pin length of 2 mm and mating pin length of 3.8 mm for secure connections.
- Unshrouded male contact gender compatible with Archer M50 series cable and jumper sockets.
Product Description
HARWIN M50-3900542 Archer M50 Series Right Angle Through Hole Pin Header is a highly reliable PCB header connector designed for electronic component assembly requiring board-to-board or wire-to-board connections. Featuring 10 male contacts arranged in 2 rows with a 1.27 mm pitch, this connector supports a current rating of 1A and operates efficiently in temperature extremes ranging from -40°C to 105°C. The nylon housing offers robust insulation and mechanical stability, while phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance.
The right-angle orientation facilitates compact PCB layout designs, enabling flexible mounting options and saving valuable board space. Tail pin length is 2 mm with a mating pin length of 3.8 mm, optimizing connection security and ease of solder termination in through-hole applications. The unshrouded design allows straightforward mating with compatible cable sockets and jumper connectors, enhancing design flexibility in various electronics assemblies.
Typical applications include use in industrial, telecommunications, automotive control systems, data communications, and medical diagnostic equipment where robust, compact PCB connectors are critical. These pin headers are versatile and conform to industry standards, ensuring seamless integration with Archer M50 series components.
Right-angle orientation suitable for space-efficient PCB layouts. Durable nylon housing providing insulation and mechanical strength. Phosphor bronze contacts with gold plating for reliable conductivity. Through-hole mount with solder termination for secure connections.
Operating temperature from -40°C to 105°C for versatile environment use. 10 contacts arranged in 2 rows with 1.27 mm pitch spacing. Tail and mating pin lengths designed for optimal durability. Unshrouded male contacts compatible with Archer M50 series sockets.
Rated for 1 ampere current supporting typical PCB power requirements. Explore more high-quality PCB Headers and connectors for industrial and commercial applications in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN M50-3900542 pin header has a maximum current rating of 1A.
It operates reliably within a temperature range of -40°C to 105°C.
This model features 10 male contacts arranged in 2 rows.
The pitch size of the contacts is 1.27 mm.
It is designed for through-hole mounting with a solder termination type.
The housing is made of nylon, and the contact material is phosphor bronze with gold plating.
The tail pin length is 2 mm.
The mating pin length is 3.8 mm.
This model features an unshrouded male contact design.
It supports board-to-board and wire-to-board connections.
Typical applications include industrial, telecommunications, automotive control systems, data communications, and medical diagnostic equipment.
The country of origin for this pin header is India.
