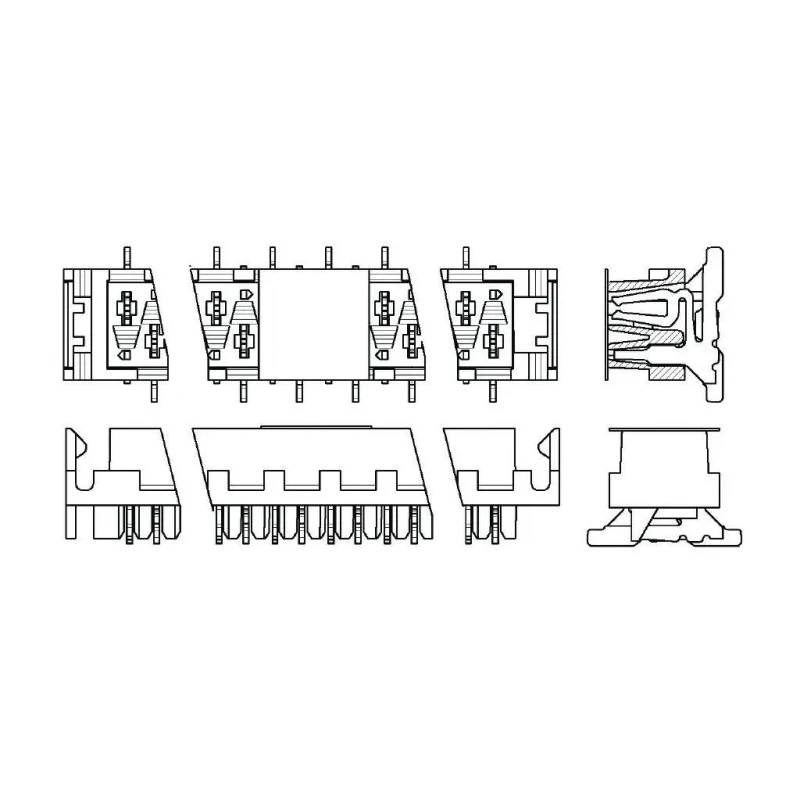

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket, 14-Contact, 2 Row, 2.54 mm Pitch Solder 8-338069-4
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 230V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Female-On-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Compact and space-saving connector designed for PCB board-to-board connections.
- Features fully tin-plated bronze female contacts for reliable electrical performance.
- Contact spring system prevents fretting corrosion ensuring long-term durability.
- Polarized design prevents mismating and ensures correct assembly.
- Includes locking latches for secure mating connections and vibration resistance.
- Operates reliably between -40°C and 105°C ambient temperature range.
- Rated for 1.5A current and 230V voltage applications.
- Constructed with polyamide housing material providing mechanical strength and insulation.
Product Description
TE Connectivity 8-338069-4 is a Micro-MaTch Series straight surface PCB socket featuring 14 female contacts arranged in 2 rows with a 2.54 mm pitch, designed for solder termination on printed circuit boards. This PCB socket enables reliable electrical connections in board-to-board interconnections with a compact, space-saving form factor suitable for automated assembly processes.
The connector's bronze contacts are fully tin plated and incorporate a spring system designed to prevent fretting corrosion and ensure a gas-tight, vibration-resistant connection. The polarization feature prevents mismatching during installation, while locking latches provide secure mating retention, critical in environments with mechanical vibration or thermal expansion.
Constructed from durable polyamide housing, this surface mount socket operates effectively over a temperature range of -40°C to 105°C and is rated for 1.5A current and 230V, making it suitable for a wide array of electronic and industrial applications such as robotics, control units, central heating units, car radios, navigation and dashboard systems, base stations, set top boxes, and audio equipment.
Manufactured in Germany, this Micro-MaTch connector series exemplifies high reliability and compact design for critical electronics interconnect solutions. Compact space-saving design with 14 contacts in 2 rows. Fully tin plated bronze female contacts with spring system.
Protection against fretting corrosion and gas-tight connections. Polarized connector prevents mismating. Locking latches ensure secure mating. Operating temperature from -40°C to 105°C. Rated for 1.5A current and 230V voltage.
Polyamide housing for durability and insulation. Suitable for industrial, automotive, and electronic applications. Manufactured in Germany to Micro-MaTch standards. Explore more advanced PCB Sockets and connectors in the Electronics Components category at EnvMart, designed to meet rigorous industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is rated for a current of 1.5A.
The voltage rating for this connector is 230V.
It operates reliably within an ambient temperature range of -40°C to 105°C.
This model features 14 female contacts arranged in 2 rows.
The socket uses solder termination for connecting to printed circuit boards.
It is constructed with a polyamide housing and bronze contacts that are fully tin plated.
Yes, it has a polarized design that prevents mismating during installation.
It includes locking latches that provide secure mating connections and enhance vibration resistance.
The pitch size for this connector is 2.54 mm.
This PCB socket is manufactured in Germany.
It is suitable for a variety of applications including robotics, control units, and automotive systems.
This model utilizes a board-to-board connector system.
