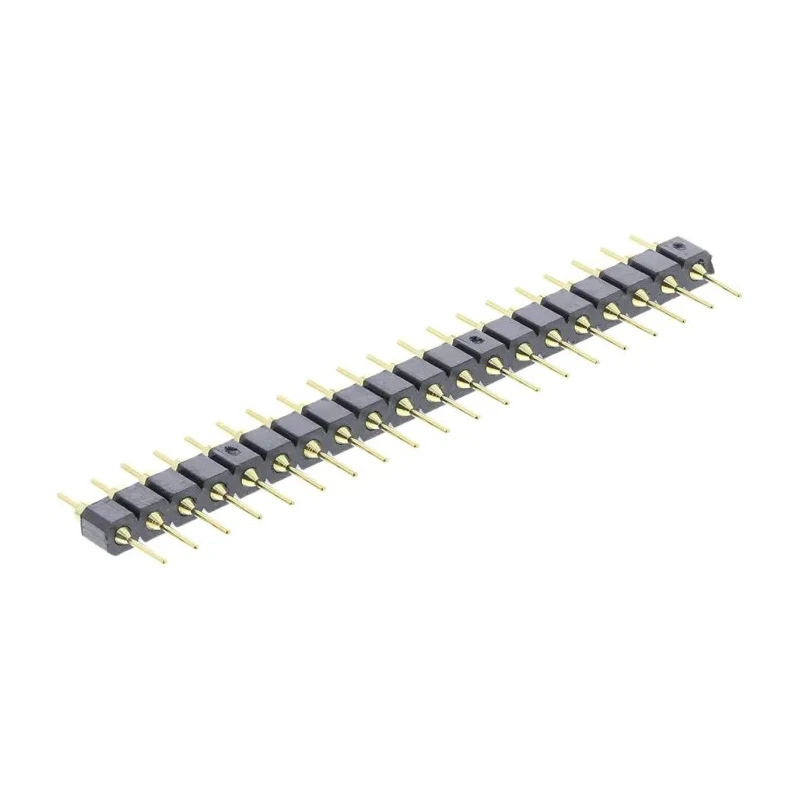

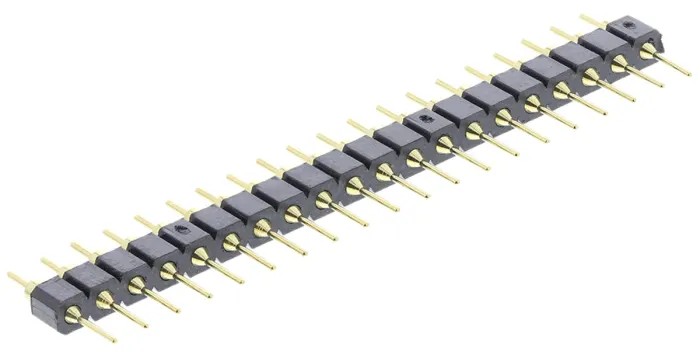

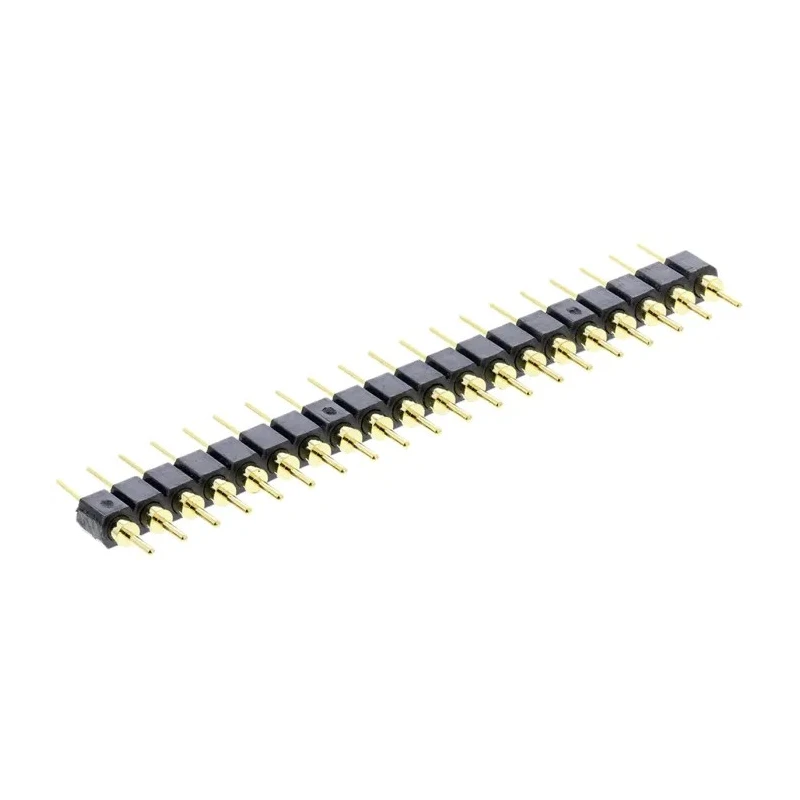

ASSMANN WSW AW Series Straight Through Hole Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded AW 122-20/G-T

ASSMANN WSW AW 122-20/G-T is a high-quality straight through hole pin header designed for printed circuit board (PCB) applications requiring a 2.54 mm pitch and 20 contacts arranged in a single row. Its unshrouded female contacts provide easy and reliable mating for board-to-board connection systems in industrial, consumer electronics, and telecommunication assemblies.

The pin header supports a continuous current rating of 3 Amperes and operates safely between -55°C and 125°C, making it suitable for a wide range of environmental conditions. It is constructed with brass contacts featuring gold plating to ensure low contact resistance and excellent corrosion resistance, while the housing is made of robust polybutylene terephthalate material for long-term mechanical stability.

Its solder termination type and tail pin length of 4.15 mm provide secure through hole mounting on PCBs. This connector is rated for 100 Volts operation and is ideal for use in electronic control systems, industrial instruments, embedded electronics, and communication devices.

Key features include a compact 2.54 mm standard pitch, one row contact layout, and an unshrouded design that facilitates inspection and repair tasks. The product is manufactured in China under the ASSMANN WSW brand known for electronic components reliability and quality.

Supports up to 3A current capacity for reliable electrical performance. Made with brass contacts plated in gold for superior conductivity and corrosion resistance. Housing constructed from durable polybutylene terephthalate.

Operating temperature range from -55°C to 125°C enables use in harsh conditions. Solder termination type with 4.15 mm tail pin length for easy assembly. Designed for board-to-board connector systems with female contact gender.

1 row configuration spaced at 2.54 mm pitch ensures standard compatibility. Voltage rating of 100 V suitable for low-voltage electronics applications. Unshrouded orientation provides ease of inspection and maintenance. Made in China, ensuring manufacturing quality and standards compliance.

This ASSMANN WSW AW Series pin header is essential for electronic manufacturing and repair applications requiring precise and reliable connector pins. Browse related PCB connectors and headers in the Electronics Components category to find compatible parts and accessories.
