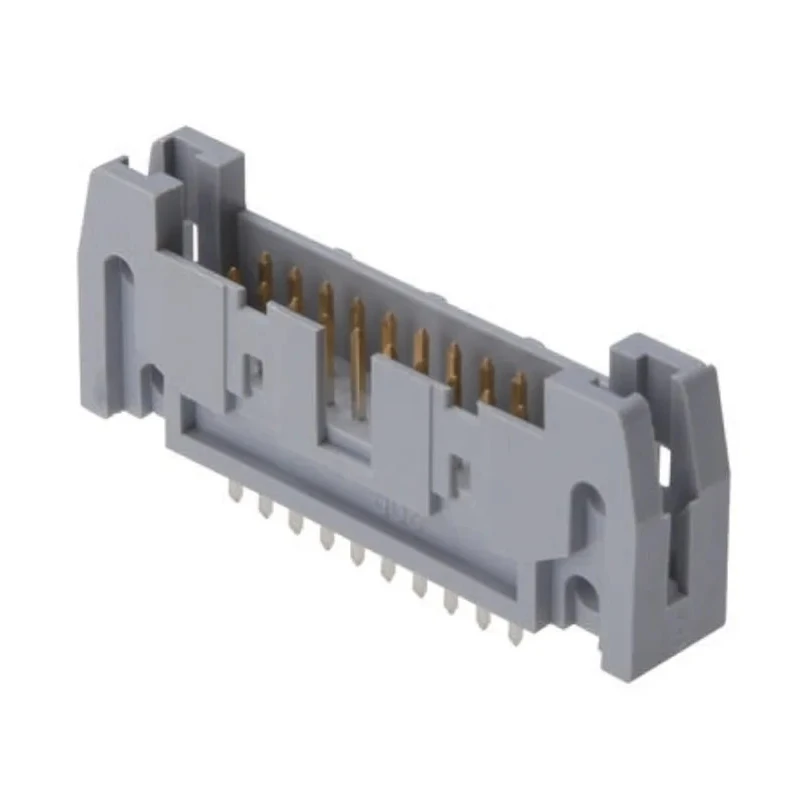

ASSMANN WSW AWH Series Straight Through Hole 20-Contact 2.54 mm Pitch 2-Row Shrouded PCB Header AWH 20G-0202-T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | AWH 20G-0202-T |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AWH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold, Nickel |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features 20 male contacts with brass material and gold-nickel plating.
- Offers 2 rows with 2.54 mm pitch for standard PCB compatibility.
- Constructed using durable polybutylene terephthalate housing material.
- Rated for electrical current up to 3 amperes and voltage up to 250 volts.
- Supports through-hole mounting for secure PCB integration.
- Shrouded design enhances electrical safety and mechanical protection.
- Operates reliably from -40°C to 105°C maximum temperature.
- Complies with RoHS environmental and safety standards.
Product Description
ASSMANN WSW AWH 20G-0202-T PCB Header is engineered as a reliable straight through hole connector optimized for electronic assembly and PCB mounting. This header features 20 male brass contacts plated with gold and nickel for excellent conductivity and corrosion resistance, arranged in 2 rows with a 2.54 mm pitch conforming to industry standards.
The housing is fabricated from polybutylene terephthalate, providing enhanced durability and thermal stability, allowing operation within a temperature range from -40°C to 105°C. It supports through-hole mounting ensuring firm mechanical fixation on the PCB.
This shrouded connector design offers improved safety by preventing accidental contact and enhancing mechanical protection, suitable for a variety of industrial electronic applications including instrumentation, manufacturing equipment, and consumer electronics.
Rated for continuous electrical current of up to 3 amperes and operating voltage up to 250 volts, this header meets RoHS compliance, reflecting environmentally responsible manufacturing practices.
Manufactured in China, the product condition is new, ensuring clients receive fresh stock ready for immediate implementation. This component is ideal for professionals requiring dependable PCB connectors for wire-to-board applications within industrial, commercial, and laboratory electrical systems.
Features 20 male contacts with brass material and gold-nickel plating. Offers 2 rows with 2.54 mm pitch for standard PCB compatibility. Constructed using durable polybutylene terephthalate housing material. Rated for electrical current up to 3 amperes and voltage up to 250 volts.
Supports through-hole mounting for secure PCB integration. Shrouded design enhances electrical safety and mechanical protection. Operates reliably from -40°C to 105°C maximum temperature. Complies with RoHS environmental and safety standards.
Wire-to-board connector system suitable for electronic component applications. Made in China with new product condition to ensure quality assurance. Explore the range of high-quality PCB Headers in the ASSMANN WSW series and related connectors on EnvMart for your industrial electronics assembly and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 250 volts.
This model features 20 male contacts.
The pitch size of the contacts in this connector is 2.54 mm.
It is rated for a continuous electrical current of up to 3 amperes.
The housing is constructed from polybutylene terephthalate.
This PCB header supports through-hole mounting for secure integration.
It operates reliably within a temperature range from -40°C to 105°C.
Yes, this connector complies with RoHS environmental and safety standards.
This model uses solder termination type.
The contacts are shrouded, enhancing electrical safety and mechanical protection.
This model is manufactured in China.
It is suitable for a variety of industrial electronic applications including instrumentation and consumer electronics.
