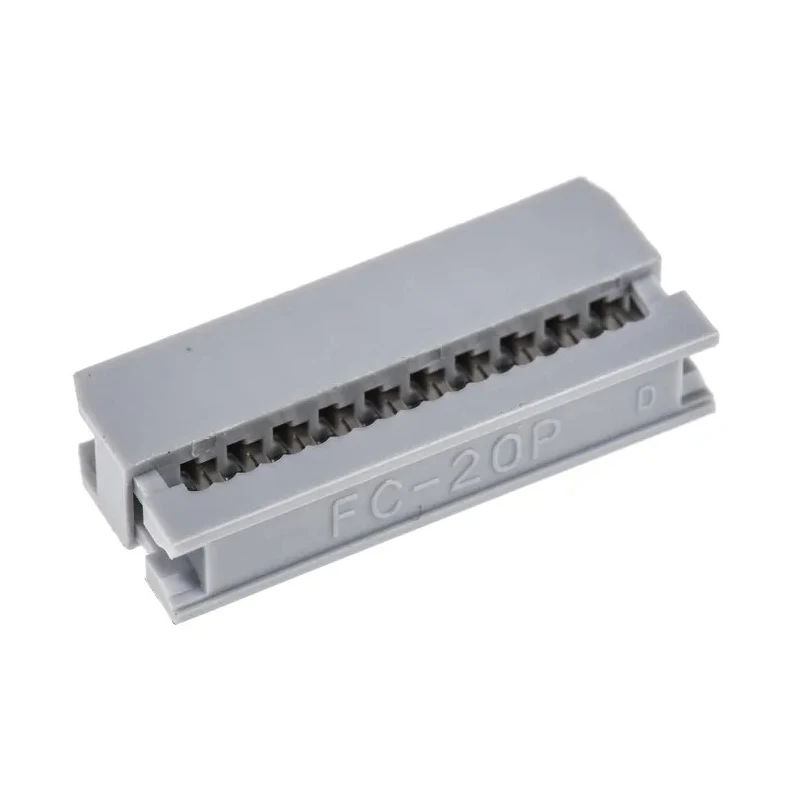

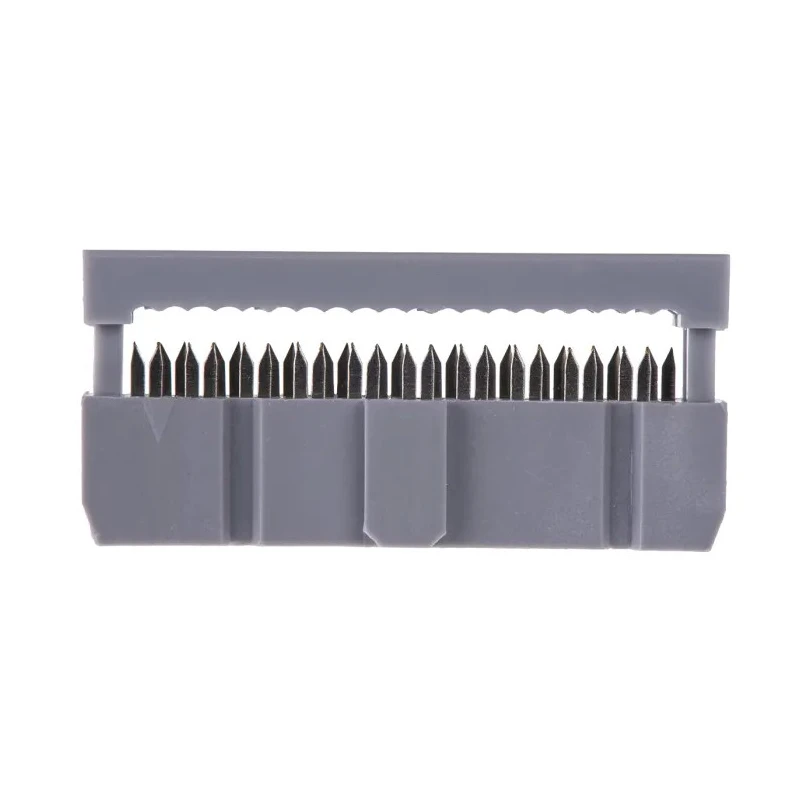

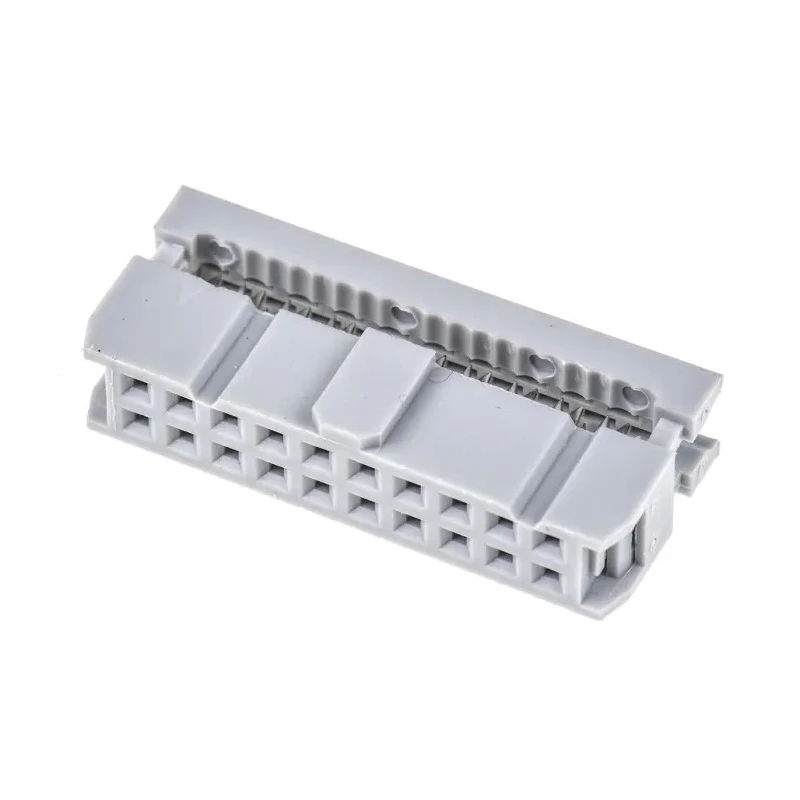

ASSMANN WSW 20-Way IDC Connector Female for Cable, 2 Row, 250V AC, 3A Current AWP 20-7240-T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Brand | ASSMANN WSW |
| Orientation | Right Angle |
| Current | 3A |
| Model | AWP 20-7240-T |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AWP |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold, Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features 20 contacts arranged in two rows for reliable connectivity.
- Designed with a 2.54mm pitch and right angle orientation for space-saving installation.
- Female connector type with gold and nickel plated contacts ensures excellent conductivity.
- Constructed with polybutylene terephthalate housing rated UL94V-0 for flame resistance.
- Operates safely within temperatures from -40°C to 105°C.
- Utilizes brass contact material with shrouded design for enhanced durability.
- Termination type is IDC, facilitating quick and efficient cable connections.
- Compact cable mount type connector ideal for industrial and electronic equipment.
Product Description
ASSMANN WSW AWP 20-7240-T IDC Connector is a 20-way female connector designed specifically for cable connections. Featuring a robust polybutylene terephthalate (PBT) housing with UL94V-0 flame retardant rating, it ensures durability and safety in demanding electronic environments.
The connector supports a nominal voltage of 250V AC and a current rating of 3A, making it suitable for a wide range of industrial and electronic applications. Its 2-row, 20-contact configuration with 2.54mm pitch facilitates secure and reliable connections in compact spaces.
Gold and nickel plating on the brass contacts provide excellent corrosion resistance and electrical conductivity, optimizing signal integrity. The shrouded design combined with right angle orientation aids in efficient cable management and mechanical protection.
Operating temperature range from -40°C to 105°C allows use in varied environmental conditions, fitting requirements from commercial electronics to more rugged industrial settings. Termination is IDC type, enabling fast and easy ribbon cable connections without soldering, improving assembly efficiency.
20 contacts arranged in 2 rows with 2.54mm pitch. Female connector with gold and nickel plated brass contacts. Polybutylene terephthalate (PBT) housing with UL94V-0 rating. Right angle cable mount type for compact setups.
Operates from -40°C to 105°C temperature range. Rated for 250V AC and 3A current. Shrouded design for enhanced mechanical protection. IDC termination enabling quick installation. Manufactured in China ensuring quality control.
This connector is ideal for use in electronic components, power connectors, and PCB interconnections in industrial, laboratory, manufacturing, and commercial applications requiring dependable IDC cable connections.
Explore more ASSMANN WSW connectors and components in the EnvMart Electronics & Electricals category to find compatible products for your equipment and projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector is rated for a nominal voltage of 250V AC and a current rating of 3A.
It operates safely within a temperature range from -40°C to 105°C.
The connector features 20 contacts arranged in two rows with a 2.54mm pitch.
The housing is made of polybutylene terephthalate, and the contacts are brass with gold and nickel plating.
It utilizes IDC (Insulation Displacement Connector) termination, facilitating quick and efficient cable connections.
This model features a right angle orientation, which aids in space-saving installation.
Yes, it is suitable for a wide range of industrial and electronic applications due to its robust design and specifications.
The shrouded design enhances mechanical protection for the contacts, improving durability and reliability in use.
This connector has a female gender, suitable for corresponding male connectors.
It is manufactured in China, ensuring quality control during production.
The pitch of the contacts is 2.54mm, allowing for compact connections in electronic setups.
It is ideal for use in electronic components, power connectors, and PCB interconnections in various settings including industrial and commercial applications.
