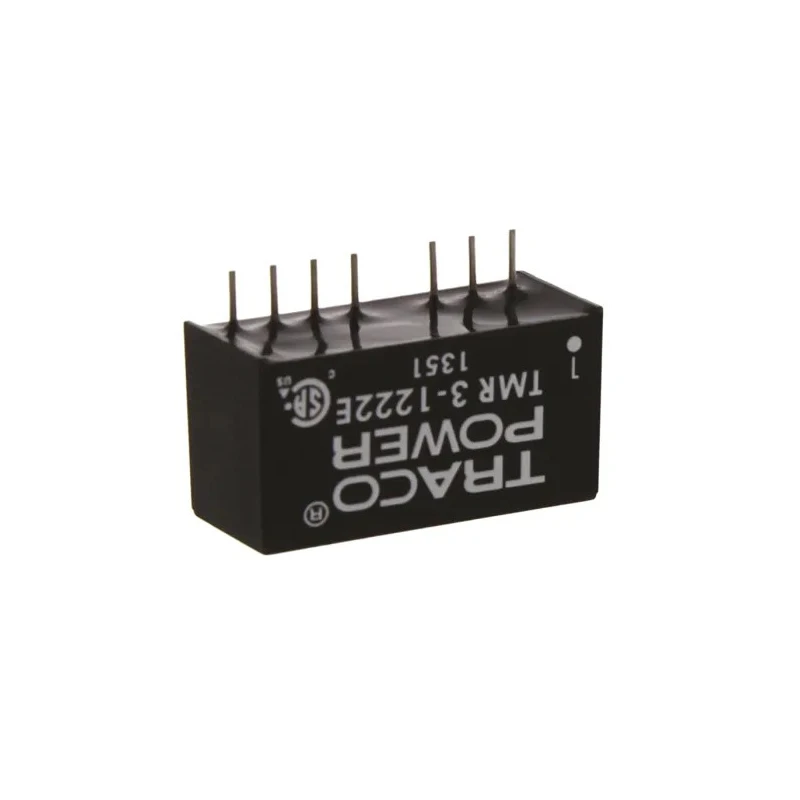

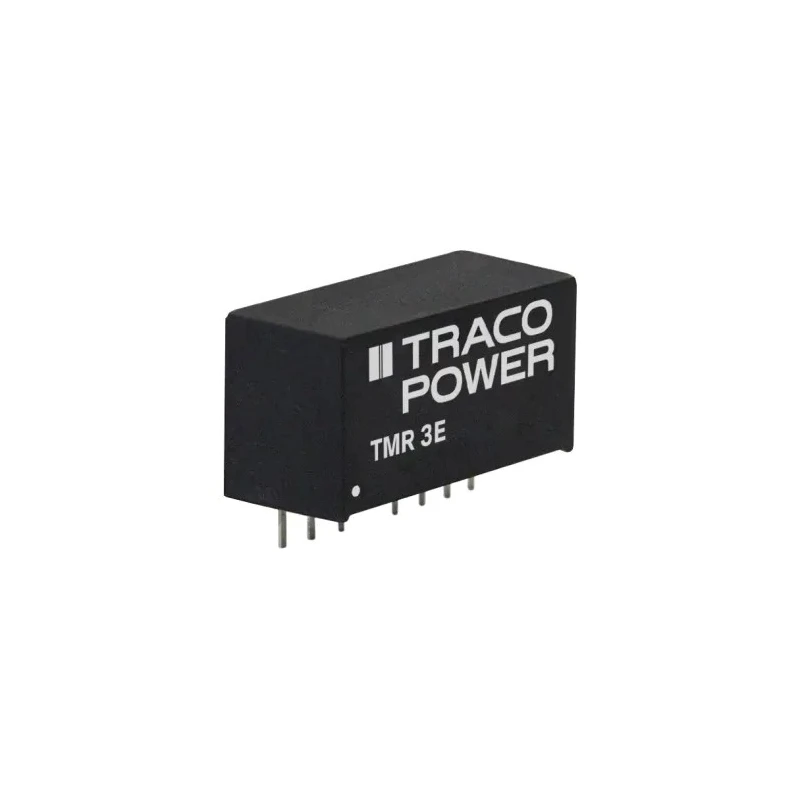

TRACOPOWER 3W Regulated Isolated Dual Output DC/DC Converter , 12V DC Output, 125 mA, 9-18V DC Input, SIP-8 PCB TMR 3-1222E
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMR 3E DC/DC Converter, 12V dc/ 125 mA |
| Brand | TRACOPOWER |
| Efficiency | 83% |
| Length | 21.8mm |
| Model | TMR 3-1222E |
| Depth | 11.2mm |
| Mount Type | PCB |
| Series | TMR 3E |
| Maximum Operating Temperature | 85°C |
| Package Type | Tube |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 125mA |
| Isolation Voltage | 1.5kV dc |
| Wide 2 | 1 input voltage range |
Key Features
- Compact SIP-8 package designed for PCB mounting applications.
- Dual regulated isolated outputs of 12V DC with 125 mA current capacity.
- Operating temperature range from -40°C to 85°C for industrial environments.
- High efficiency of 83% to reduce power loss and heat generation.
- Continuous short circuit protection ensures reliable operation.
- Remote On/Off control capability for system flexibility.
- EMC compliance to EN55022 level A and FCC part 15 level A standards.
- Built with 1.5 kV DC isolation voltage and 7-pin SIP-8 packaging.
Product Description
TRACOPOWER TMR 3-1222E is a high-quality regulated isolated dual output DC/DC converter designed for demanding industrial and electronic applications. This 3W converter features a compact SIP-8 PCB mount package with a length of 21.8 mm and a depth of 11.2 mm, making it ideal for space-constrained designs.
The device operates efficiently at 83% efficiency, accepting a wide input voltage range of 9V DC to 18V DC with dual 12V DC outputs at a maximum current of 125 mA. With an isolation voltage of 1.5 kV DC and continuous short circuit protection, the TMR 3-1222E ensures robust and reliable power conversion under harsh conditions.
The converter supports a temperature range from -40°C to 85°C, suitable for industrial environments. It meets EMC requirements for EN55022 level A and FCC part 15 level A, assuring electromagnetic compatibility and reduced interference.
The TMR 3-1222E includes remote On/Off control, adding versatility in power management. Its high MTBF of 1,000,000 hours demonstrates a long operational life, supporting critical applications in communication equipment, instrumentation, and industrial electronics.
This product is RoHS compliant and manufactured in Taiwan, Province Of China, maintaining high quality and environmental standards. Compact SIP-8 PCB mount package. Dual output, regulated, and isolated 12V DC at 125 mA. Wide 9-18V DC input voltage range.
Operating temperature from -40°C to 85°C. Efficiency rating of 83% for reduced power loss. Continuous short circuit protection and remote On/Off control. EMC compliance to EN55022 level A and FCC part 15 level A. 1.5 kV DC isolation voltage for safety and reliability.
High MTBF of 1,000,000 hours for durability.
Perfect for applications in industrial electronics, communication devices, and instrumentation requiring reliable, isolated power conversion solutions. Explore more products from TRACOPOWER and DC/DC Converters on EnvMart for quality industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual regulated outputs of 12V DC with a maximum current capacity of 125 mA.
The TMR 3-1222E accepts a wide input voltage range from 9V DC to 18V DC.
It operates at an efficiency of 83%, which helps reduce power loss and heat generation.
This unit has a length of 21.8 mm and a depth of 11.2 mm, suitable for PCB mounting applications.
The TMR 3-1222E features an isolation voltage of 1.5 kV DC, ensuring safety and reliability in operation.
It is designed to operate within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
Yes, this model includes continuous short circuit protection to ensure reliable operation.
It complies with EMC requirements for EN55022 level A and FCC part 15 level A standards.
This converter provides two regulated outputs.
The TMR 3-1222E is designed for PCB mounting applications.
The MTBF for the TMR 3-1222E is rated at 1,000,000 hours, indicating a long operational life.
Yes, the TMR 3-1222E is RoHS compliant, adhering to environmental standards.
