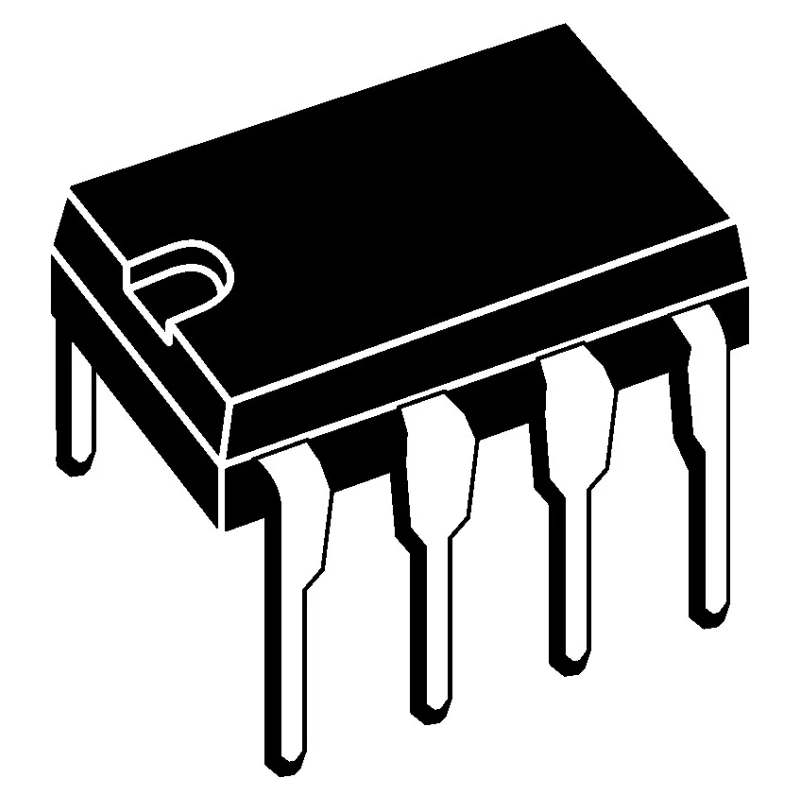

onsemi DC Input 2-Channel Phototransistor Output Optocoupler Through Hole 8-Pin PDIP MCT62
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | MCT62 |
| Packaging | Tube |
| Mount Type | Through Hole |
| Output type | Phototransistor |
| Series | MCT |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 2 |
| Standards/Approvals | UL, IEC, EN |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 2.4μs |
| Minimum Current Transfer Ratio | 100% |
Key Features
- Offers two channels for optical isolation and signal transmission.
- Mount type is through hole, ensuring sturdy PCB installation.
- Phototransistor output provides reliable switching response.
- Typical rise and fall times are 2.4 microseconds, suitable for fast switching.
- Supports a maximum forward voltage of 1.5 volts for input LEDs.
- Maximum input current rating is 60 milliamperes for safe operating limits.
- Rated for isolation voltage of 5,000 Vrms for electrical safety.
- Operates reliably from -55°C to 100°C temperature range.
Product Description
onsemi MCT62 is a high-performance DC input optocoupler featuring two channels with phototransistor outputs housed in a standard 8-pin PDIP through hole package. This device offers robust optical isolation between input and output circuits, making it ideal for electrical signal isolation applications in industrial and electronic circuits.
The optocoupler provides fast switching with typical rise and fall times of 2.4 microseconds, enabling effective signal transmission in data and control circuits. Its maximum forward voltage is 1.5 V with a maximum input current capability of 60 mA, ensuring safe and reliable operation within specified electrical limits.
The device is rated to withstand an isolation voltage of 5,000 Vrms, providing high-level protection against voltage spikes and electrical noise. Operating temperature ranges from -55°C up to 100°C suit demanding environmental conditions common in industrial, manufacturing, and electronic instrumentation applications.
onsemi MCT62 complies with major safety standards including UL, IEC, and EN, assuring quality and reliable performance in diverse applications. The product packaging is supplied in tubes, facilitating automated insertion and enhanced handling during production.
Offers two channels for optical isolation and signal transmission. Mount type is through hole, ensuring durable PCB installation. Phototransistor output allows reliable switching performance. Fast switching speeds with 2.4 microseconds typical rise and fall times.
Supports input forward voltages up to 1.5 volts. Maximum input current rating of 60 milliamperes. Electrical isolation with 5kVrms rating for safety. Operating in temperature range from -55°C to 100°C. Standards compliant: UL, IEC, EN.
Packaging in tubes optimized for manufacturing processes.
This optocoupler is suitable for applications in electronics, industrial automation, signal isolation, and power control systems. Browse our Electronics Components category for more Optocoupler variants and related electronic devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current rating for this model is 60 milliamperes, ensuring safe operating limits.
It operates reliably within a temperature range of -55°C to 100°C, making it suitable for demanding environments.
This optocoupler features a phototransistor output, allowing for reliable switching performance in signal transmission applications.
The MCT62 has two channels for optical isolation and signal transmission.
The typical rise and fall times for the MCT62 are 2.4 microseconds, enabling effective signal transmission.
This model supports a maximum forward voltage of 1.5 volts for input LEDs.
The MCT62 is rated for an isolation voltage of 5,000 Vrms, providing high-level protection against voltage spikes.
It is supplied in tubes, which facilitates automated insertion and enhances handling during production.
This model uses a through hole mount type, ensuring sturdy PCB installation.
The MCT62 complies with major safety standards including UL, IEC, and EN, assuring quality performance.
The MCT62 features an 8-pin PDIP package, suitable for various electronic applications.
This optocoupler is suitable for applications in electronics, industrial automation, signal isolation, and power control systems.
