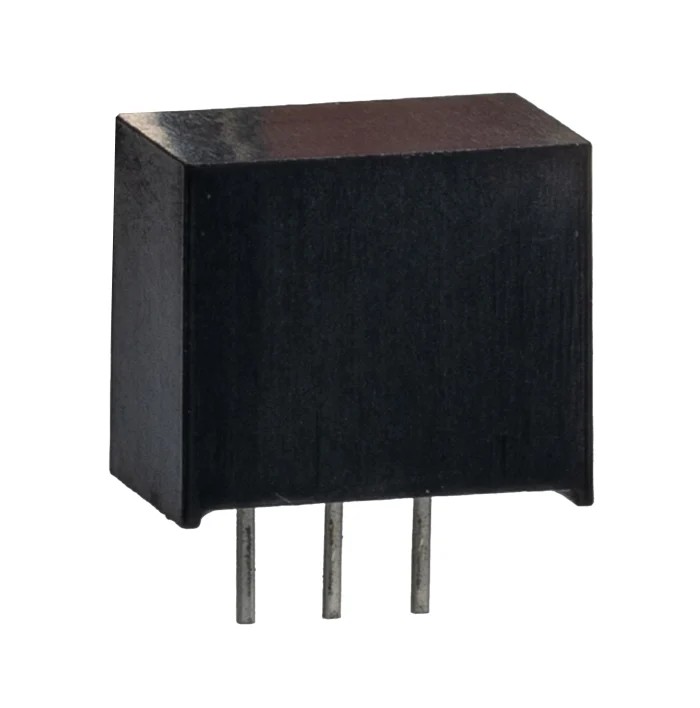

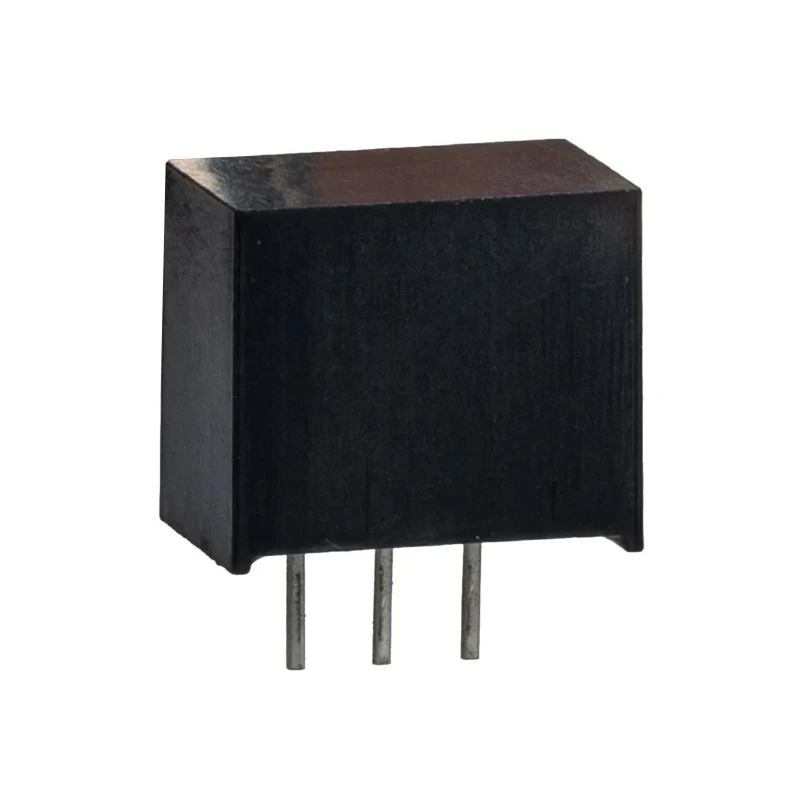

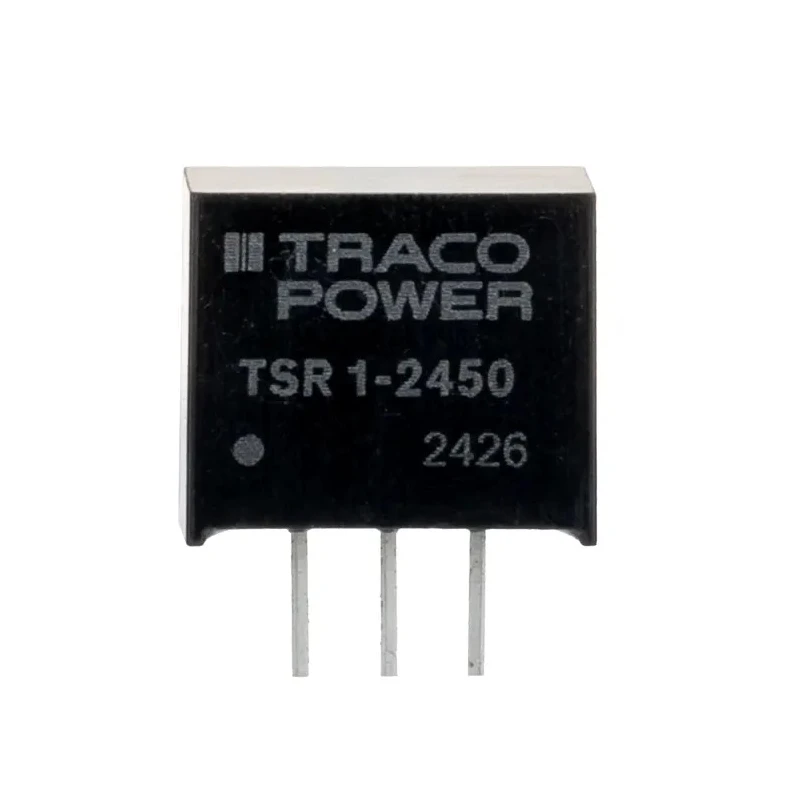

TRACOPOWER Switching Regulator, Through Hole Mounting, 5V DC Output Voltage, 1A Output Current, 5W Power, SIP-3 TSR 1-2450
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Power | 5W |
| Efficiency | 93% |
| Length | 11.7mm |
| Model | TSR 1-2450 |
| Depth | 10.2mm |
| Gross Weight | 1.9g |
| Width | 10.2mm |
| Mount Type | Through Hole |
| Series | TSR 1 |
| Output Current | 1A |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-3 |
| Load Regulation | ±0.4 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 5350000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Input Voltage | 36V dc |
| Line Regulation | ±0.2 % |
| Standards/Approvals | CE |
| Minimum Input Voltage | 6.5V |
| Output Voltage 1 | 5V dc |
Key Features
- The regulator delivers a stable 5V DC output with ±0.2% line regulation accuracy.
- Supports input voltages from 6.5V up to 36V DC ensuring wide compatibility.
- High efficiency at 93%, minimizing power wastage during operation.
- Features integrated short-circuit protection with automatic restart functionality.
- Compact SIP-3 package with dimensions 11.7mm (L) x 10.2mm (W) x 10.2mm (D) for easy PCB integration.
- Maximum ripple and noise voltage limited to 50mV peak-to-peak for smooth power delivery.
- Operating temperature range from -40°C to 85°C suitable for diverse environments.
- Rapid response to load changes within 250 microseconds ensuring stable output in dynamic conditions.
Product Description
The TRACOPOWER TSR 1-2450 is a high-performance switching regulator designed for electronic applications requiring precise and efficient voltage conversion. It provides a fixed 5V DC output voltage at a current of 1A, ideal for powering sensitive components in automotive, domestic appliances, and robotics systems.
This regulator operates efficiently across an input voltage range of 6.5V to 36V DC while delivering up to 5W of power with 93% efficiency. Its SIP-3 through-hole package facilitates straightforward PCB mounting and mechanical stability.
With tight line regulation of ±0.2% and low ripple and noise voltage of 50mV Pk-Pk, the device ensures a clean and constant output voltage. It features integrated short-circuit protection that automatically restarts after fault conditions, reducing downtime and maintenance efforts.
The regulator is capable of responding to load fluctuations rapidly, within 250 microseconds, maintaining performance under varying electrical loads. Its robust construction includes plastic and silicone insulation to safeguard against hazardous electrical conditions.
Operating in temperature ranges from -40°C to 85°C, it suits industrial and commercial applications with challenging environments. The product’s extended mean time between failures (MTBF) of over five million hours highlights its reliability.
The regulator's compact dimensions (11.7 x 10.2 x 10.2 mm) aid in space-saving PCB designs. CE approval confirms compliance with European safety and quality standards.
This TRACOPOWER TSR 1-2450 switching regulator is a preferred choice for designers looking for stable voltage regulation with energy efficiency and protective features. It eliminates the need for additional heat sinks due to its efficient power conversion, simplifying installation.
Explore more high-quality Switching Regulators and power management components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a fixed output voltage of 5V DC and an output current of 1A.
It supports an input voltage range from 6.5V to 36V DC.
The regulator operates with an efficiency of 93%, minimizing power wastage during operation.
The dimensions of the SIP-3 package are 11.7mm in length, 10.2mm in width, and 10.2mm in depth.
The maximum ripple and noise voltage is limited to 50mV peak-to-peak, ensuring smooth power delivery.
It operates within a temperature range of -40°C to 85°C, suitable for diverse environments.
It has a rapid response time to load changes within 250 microseconds, maintaining stable output.
It features integrated short-circuit protection with automatic restart functionality to enhance reliability.
The load regulation accuracy is ±0.4%, providing stable output under varying loads.
The mean time between failures (MTBF) is over 5,350,000 hours, indicating its reliability.
Yes, it has CE approval, confirming compliance with European safety and quality standards.
The gross weight of this model is 1.9 grams, making it suitable for compact PCB designs.
