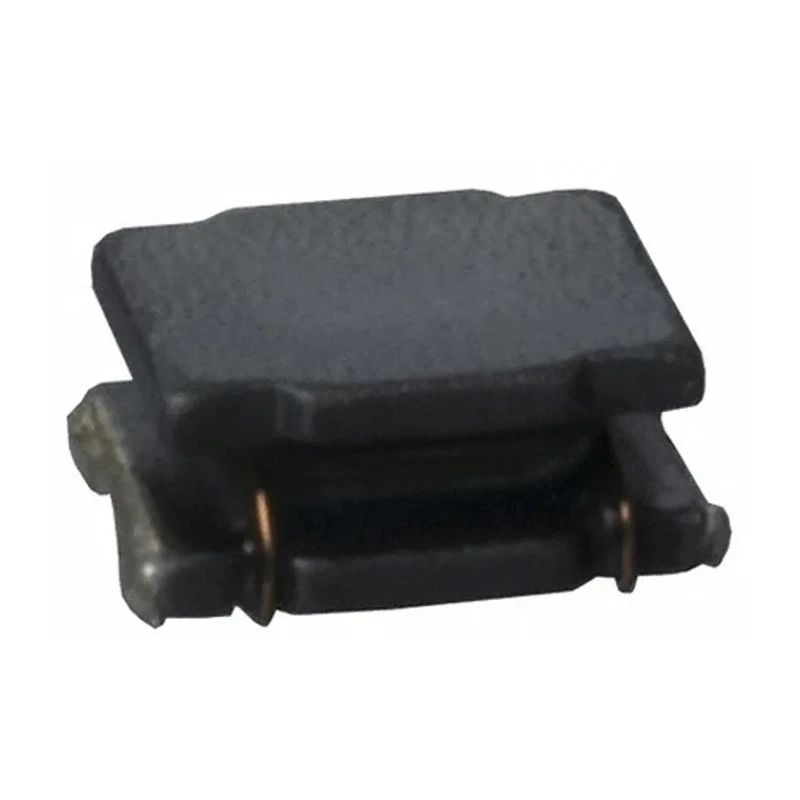

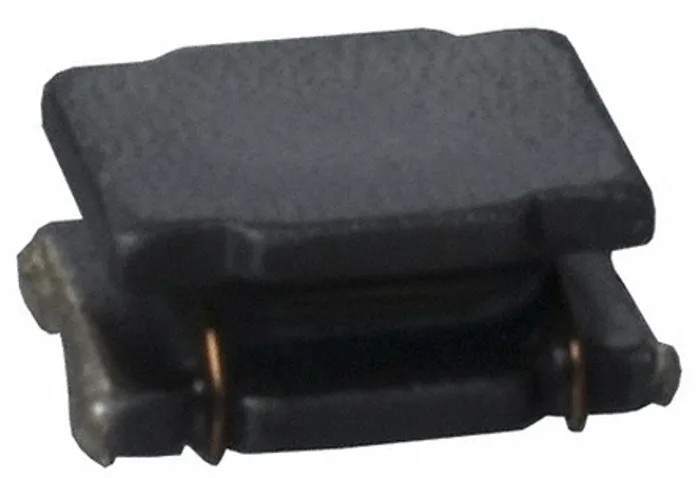

Murata 5050 Shielded Wirewound Surface Mount Inductor with Ferrite Core 0.47μH ±30% 7.7A Idc LQH5BPNR47NT0L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 5mm |
| Model | LQH5BPNR47NT0L |
| Depth | 5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 0.47μH |
| Standards/Approvals | RoHS |
| Package/Case | 5050 |
| Maximum DC Current | 7.7A |
| Pin Count | 2 |
| Maximum DC Resistance | 12mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 220MHz |
| Inductor Construction | Wirewound |
Key Features
- The inductor has a compact 5050 package size and is designed for surface mount applications.
- It is constructed with wirewound technology and a ferrite core to ensure stable inductance.
- The component offers a maximum DC resistance of 12mΩ for efficient current flow.
- Operates safely from -40°C to 125°C, suitable for demanding environments.
- Features shielding to minimize electromagnetic interference effects.
- Designed with solder termination style and molded coating for durability.
- Its maximum self-resonant frequency is 220MHz, ideal for high-frequency circuits.
- Meets RoHS compliance standards, ensuring environmental safety.
Product Description
Murata LQH5BPNR47NT0L is a 5050 shielded wirewound surface mount inductor featuring a robust ferrite core and coated with a protective molded resin coating. With an inductance of 0.47μH ±30% and rated for a maximum DC current of 7.7A, this inductor ensures reliable performance in electronic applications.
The compact 5mm length and 2mm height dimensions make it suitable for high-density surface mount circuits. Its construction using wirewound technology offers stable inductance values ideal for power supply booster circuits in digital cameras, mobile phones, TV sets, and game machines.
This component operates efficiently across a temperature range of -40°C up to 125°C and includes shielding to reduce electromagnetic interference, enhancing signal integrity in sensitive applications. The maximum DC resistance of 12mΩ ensures minimal power loss.
The inductor's termination style is solder, with molded encapsulation providing mechanical strength and environmental protection. It has a maximum self-resonant frequency of 220MHz allowing for use in high-frequency circuits and complies with RoHS standards, supporting environmentally safe manufacturing.
The LQH series from Murata is known for its wirewound chip inductors that combine high inductance values with mechanical durability, making this model suitable for industrial, commercial, and consumer electronics.
The inductor is packaged in embossed tape format for automated surface mount technology (SMT) assembly lines.
Applications include electronics manufacturing for mobile devices, digital imaging equipment, and other high-frequency electronic circuits requiring stable inductance and high current capability.
Explore more on Surface Mount Inductors from Murata to find components optimized for your electronic design needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 0.47μH with a tolerance of ±30%.
It has a maximum DC current rating of 7.7A, ensuring reliable performance in various applications.
This component has a length and depth of 5mm and a height of 2mm, making it suitable for high-density surface mount circuits.
The inductor can operate safely at temperatures up to 125°C.
It can operate at a minimum temperature of -40°C, making it suitable for demanding environments.
The maximum DC resistance is 12mΩ, which helps in minimizing power loss during operation.
The maximum self-resonant frequency of this inductor is 220MHz, allowing it to be used in high-frequency circuits.
It features a solder termination style, which is common for surface mount applications.
The inductor is constructed with a ferrite core and uses wirewound technology for stable inductance.
This model complies with RoHS standards, ensuring it meets environmental safety requirements.
It is packaged in embossed tape format, which is suitable for automated surface mount technology (SMT) assembly lines.
This inductor is suitable for applications in mobile devices, digital imaging equipment, and other high-frequency electronic circuits.
