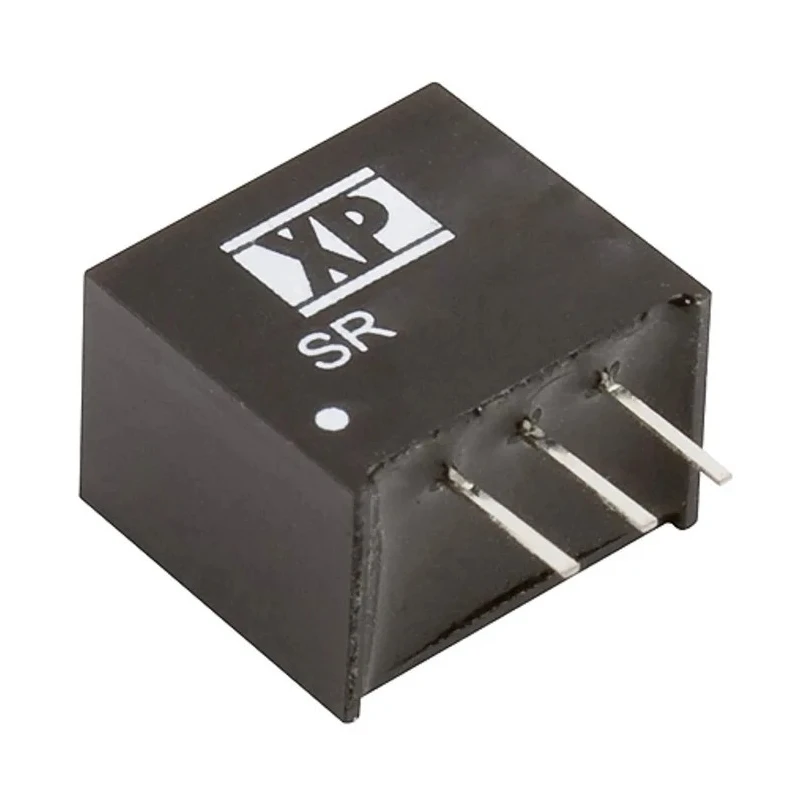

XP Power DC/DC Switching Regulator Through Hole 3.3V Output 34V Input 500mA SR05S3V3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Power | 1.65W |
| Efficiency | 91% |
| Length | 11.68mm |
| Model | SR05S3V3 |
| Depth | 10.15mm |
| Gross Weight | 1.8g |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | SR |
| Output Current | 500mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | ±0.6 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 4.5mH |
| Number of outputs | 1 |
| Ripple and Noise | 60mV Pk-Pk |
| Maximum Input Voltage | 34V dc |
| Output Voltage | 3.3 V |
| Line Regulation | ±0.5 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.75V |
| Output Voltage 1 | 3.3V dc |
Key Features
- Provides a regulated 3.3V DC output for sensitive electronic devices.
- Peak output current capability up to 500mA.
- Operates from a wide input range from 4.75V to 34V DC.
- Efficiency rated at 91% for reduced heat and improved reliability.
- Designed for through hole mounting, simplifying PCB assembly.
- Compact SIP package dimension for space-constrained applications.
- Continuous short circuit protection ensures device safety.
- Ripple and noise limited to 60mV Pk-Pk for stable operation.
Product Description
XP Power SR05S3V3 is a high-performance DC/DC switching regulator designed for efficient conversion of voltage in industrial, electronic, and laboratory applications. The device features through hole mounting for robust PCB integration and delivers a steady 3.3V DC output at up to 500mA, making it ideal for powering sensitive electronic circuits and modules.
The SR05S3V3 accepts a wide input voltage range from 4.75V to 34V DC, supporting flexible sourcing from standard power supplies or variable input environments. Its maximum efficiency rating of 91% ensures minimal heat generation and reliable performance over extended operating conditions.
With a compact SIP package and dimensions of 11.68mm x 7.5mm x 10.15mm, installation is straightforward in space-constrained boards. This regulator is equipped with continuous short circuit protection, maintaining safety by protecting downstream electronics from potential damage.
Ripple and noise specifications are tightly controlled at 60mV Pk-Pk, which is crucial for analog and digital applications requiring stable output. The unit operates reliably from -40°C to 85°C, suitable for demanding industrial and laboratory environments.
Wide input voltage: 4.75V to 34V DC for versatile use. Steady 3.3V output at up to 500mA for industrial and electronic loads. High efficiency (91%), minimizing energy loss and heat. Compact SIP package for easy PCB integration.
Continuous short circuit protection for enhanced safety. RoHS compliance for environmental safety standards.
XP Power SR05S3V3 DC/DC switching regulators find application in industrial control panels, laboratory instrumentation, embedded systems, telecom solutions, and any scenario where space-saving, efficient DC conversion is needed.
For more Switching Regulators and XP Power solutions, explore the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 3.3V DC.
The maximum input voltage is 34V DC.
It has an efficiency rating of 91%.
The peak output current capability is up to 500mA.
The dimensions are 11.68mm in length, 7.5mm in width, and 10.15mm in depth.
It is designed for through hole mounting.
The operating temperature range is from -40°C to 85°C.
The ripple and noise is limited to 60mV Pk-Pk.
It features continuous short circuit protection to ensure safety.
The load regulation is ±0.6%.
Yes, it is RoHS compliant for environmental safety standards.
The gross weight of this unit is 1.8g.
