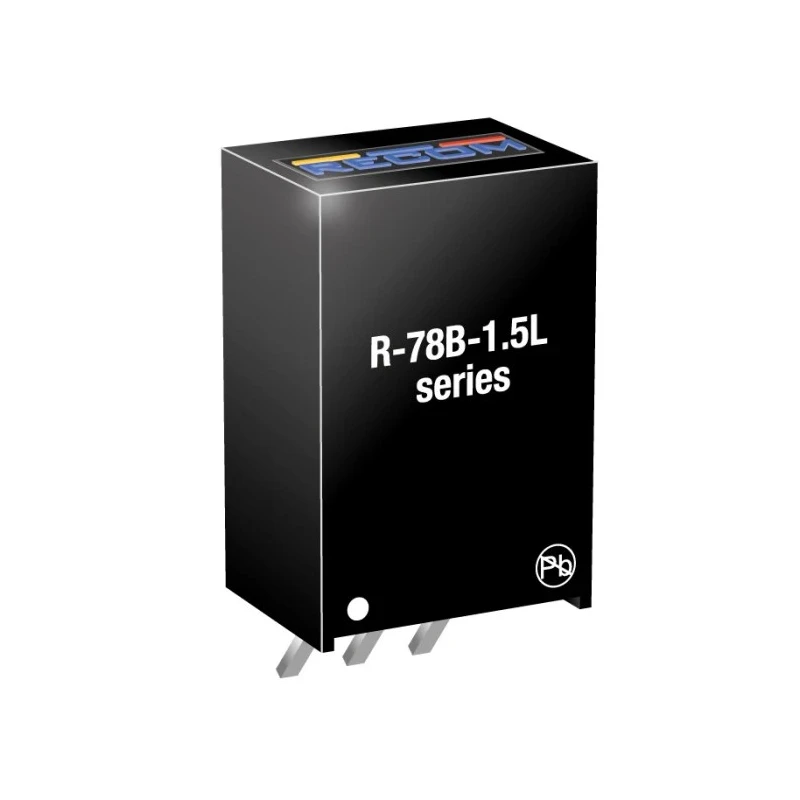

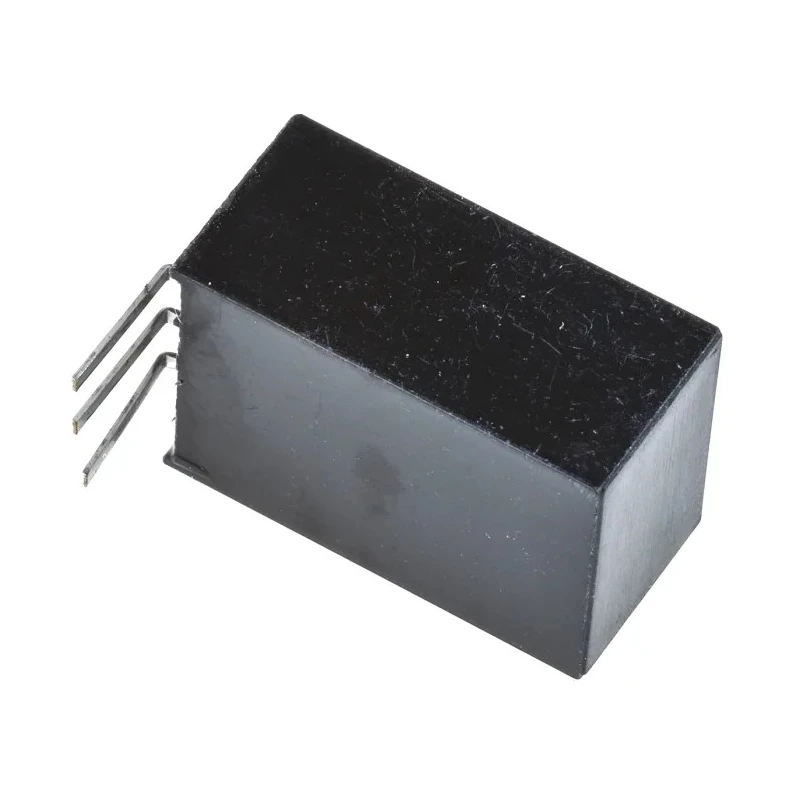

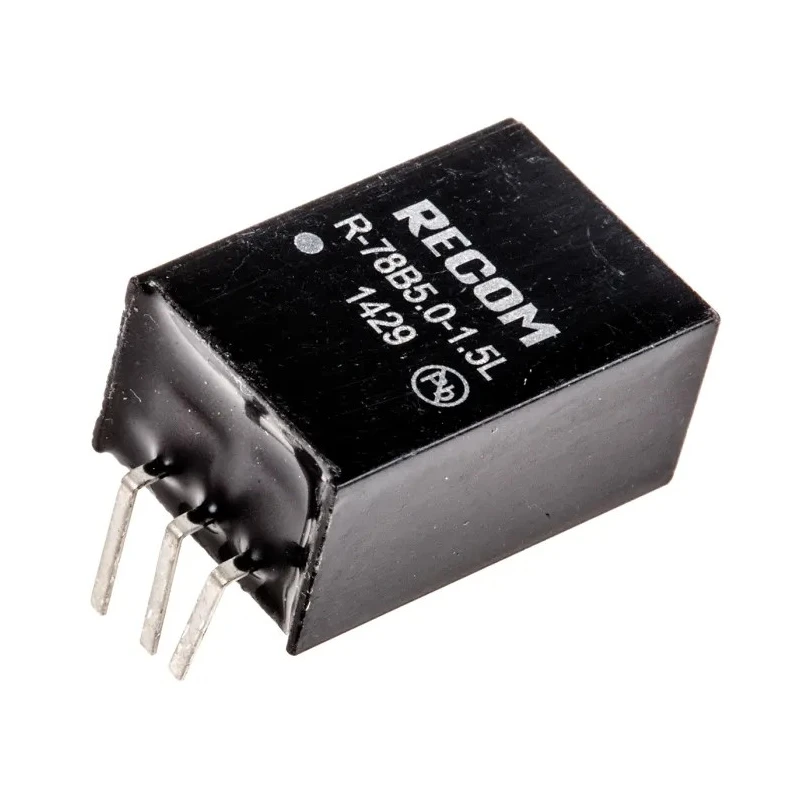

Recom Switching Regulator Through Hole Mount 5V DC Output Voltage 1.5A Output Current 7.5W Power R-78B5.0-1.5L
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / Switching Regulators Recom Switching Regulator, Through Hole, 5V dc |
| Brand | Recom |
| Power | 7.5W |
| Efficiency | 92% |
| Length | 11.5mm |
| Model | R-78B5.0-1.5L |
| Depth | 8.5mm |
| Gross Weight | 4g |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | R-78B-1.5 |
| Output Current | 1.5A |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | ±0.8 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 3250000h |
| Number of outputs | 1 |
| Ripple and Noise | 30mV Pk-Pk |
| Maximum Input Voltage | 18V dc |
| Line Regulation | ±0.5 % |
| Standards/Approvals | REACH |
| Minimum Input Voltage | 6.5V |
| Output Voltage 1 | 5V dc |
Key Features
- Operates efficiently with 92% efficiency for power savings.
- Supports input voltage range from 6.5V to 18V DC.

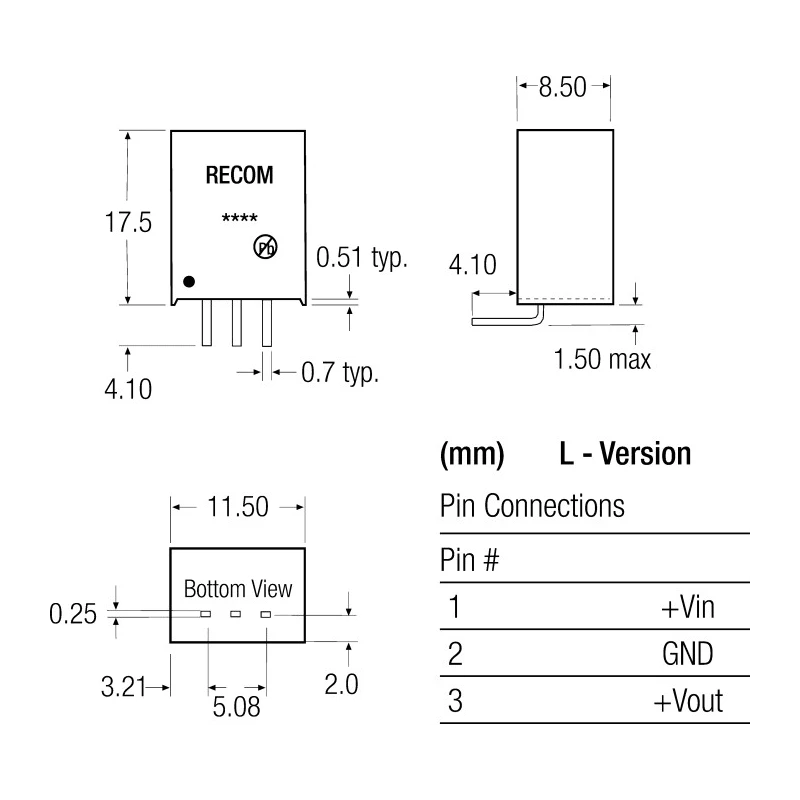

- Compact SIP package with dimensions 11.5mm length, 8.5mm width, and 8.5mm depth.
- Lightweight construction weighing only 4 grams.
- Designed to operate in temperatures from -40°C to +85°C.
- Features low ripple and noise of 30mV peak-to-peak.
- Mean time between failures (MTBF) of 3,250,000 hours ensures reliability.
- Includes line regulation of ±0.5% and load regulation of ±0.8%.
Product Description
Recom R-78B5.0-1.5L switching regulator is a through hole mounted device optimized for efficient power management in electronic circuits. It features a stable 5V DC output voltage and can supply up to 1.5A output current, delivering 7.5W power with 92% efficiency.
This regulator supports a wide input voltage range from 6.5V to 18V DC, making it suitable for varied power supply scenarios. It comes housed in a compact SIP package measuring 11.5mm length by 8.5mm width and depth, and weighs just 4 grams, allowing easy integration into designs with space and weight constraints.
The device performs reliably over a broad operating temperature range from -40°C to +85°C, suited for demanding industrial, automotive, and machine tooling applications. It exhibits low ripple and noise levels at 30mV peak-to-peak, ensuring signal integrity in sensitive electronics.
The regulator offers excellent line regulation of ±0.5% and load regulation of ±0.8%, maintaining output stability under varied input and load conditions. With a mean time between failures (MTBF) of 3.25 million hours at 25°C, it provides long-term dependable operation.
Encased in a non-conductive plastic housing for enhanced electrical safety, this product complies with REACH material standards. Its through-hole mount design facilitates secure and stable PCB installation.
Typical use cases include automotive equipment, machine tooling, and general low-power electronic designs requiring efficient voltage conversion. Operates efficiently with 92% efficiency for power savings. Supports input voltage range from 6.5V to 18V DC.
Compact SIP package with dimensions 11.5mm length, 8.5mm width, and 8.5mm depth. Lightweight construction weighing only 4 grams. Designed to operate in temperatures from -40°C to +85°C. Features low ripple and noise of 30mV peak-to-peak.
Mean time between failures (MTBF) of 3,250,000 hours ensures reliability. Includes line regulation of ±0.5% and load regulation of ±0.8%. Protected by a non-conductive plastic housing for safety. Complies with REACH standards for material safety.
Explore our full range of Switching Regulators for industrial and electronic component applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 5V DC and can supply an output current of up to 1.5A, delivering a total power of 7.5W.
It supports a wide input voltage range from 6.5V to 18V DC, making it suitable for various power supply scenarios.
The compact SIP package measures 11.5mm in length, 8.5mm in width, and 8.5mm in depth.
It operates with an efficiency of 92%, contributing to power savings in electronic circuits.
This unit is designed to operate within a temperature range of -40°C to +85°C, suitable for demanding environments.
It features low ripple and noise levels of 30mV peak-to-peak, ensuring signal integrity in sensitive applications.
The regulator provides line regulation of ±0.5% and load regulation of ±0.8%, maintaining output stability under varying conditions.
The mean time between failures (MTBF) is 3,250,000 hours, indicating long-term reliable operation.
It features a through-hole mount design, facilitating secure and stable installation on PCBs.
This model complies with REACH standards for material safety, ensuring compliance with environmental regulations.
This switching regulator has a lightweight construction, weighing only 4 grams, which aids in easy integration into designs.
It is suitable for automotive equipment, machine tooling, and general low-power electronic designs requiring efficient voltage conversion.
