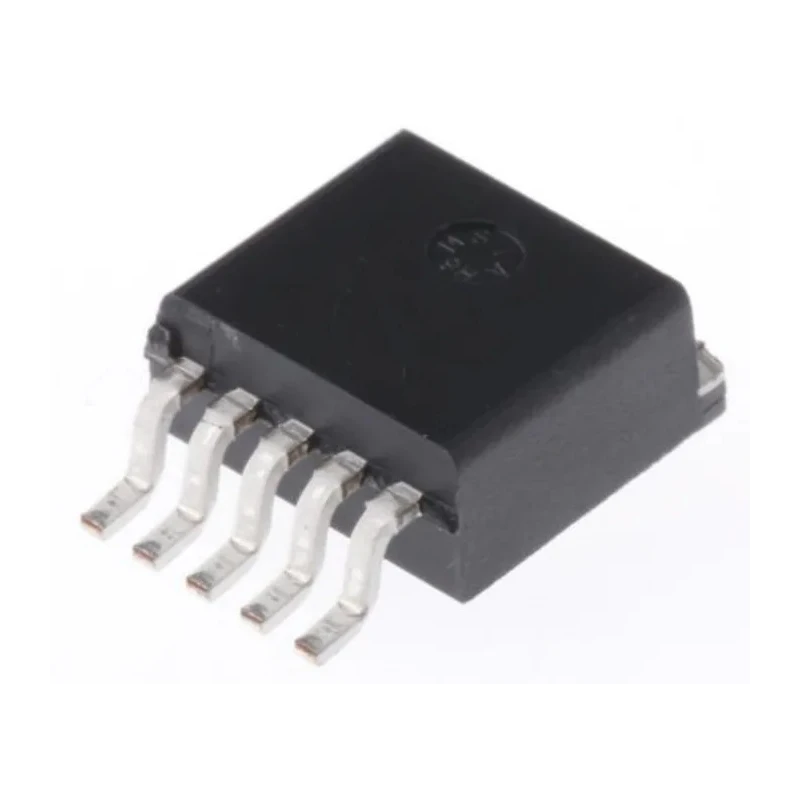

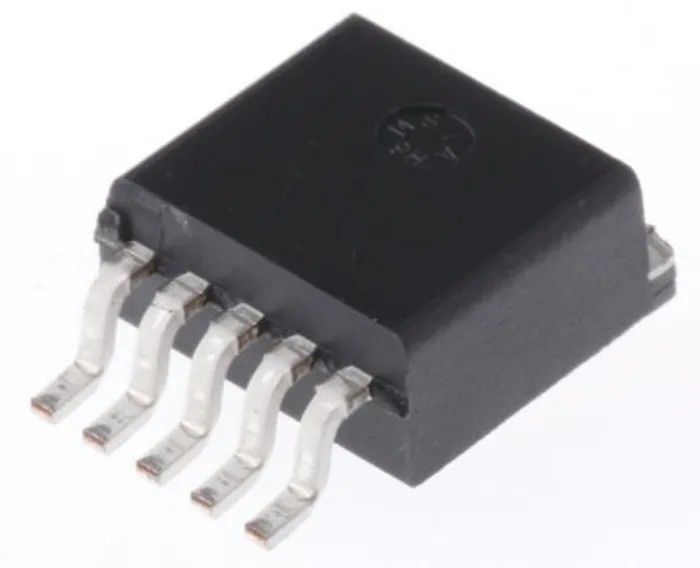

onsemi Voltage Regulator 18V 5-Pin Surface Mount Positive Polarity NCP59302DSADJR4G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 18V 5-Pin RS Stock No |
| Brand | onsemi |
| Height | 4.57mm |
| Length | 10.23mm |
| Model | NCP59302DSADJR4G |
| Width | 9.34mm |
| Mount Type | Surface |
| Series | NCP59302 |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 18V |
| Minimum Input Voltage | 0mV |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
Key Features
- Provides a typical dropout voltage of 300 mV at full 3.0 A load.
- Features low ground current of 60 mA at 3 Amp load for efficient power management.
- Stable performance with ceramic capacitors on output.
- Designed to support automotive standard AEC-Q100, suitable for harsh environments.
- Maximum operating temperature of 125°C ensures reliability under high thermal stress.
- Supports input voltage range up to 18 V and minimum input voltage of 0 mV.
- Offers output current exceeding 3 Amps for demanding electronic applications.
- Ideal for point of load regulation in FPGAs, DSPs, and processors.
Product Description
onsemi NCP59302DSADJR4G is a high-performance 18V voltage regulator featuring a 5-pin configuration with surface mounting and positive polarity, designed for industrial and automotive electronic components.
This voltage regulator delivers a typical dropout voltage of 300 mV at full 3.0 Amp load, ensuring efficient voltage regulation with minimal power loss. It boasts a low ground current of 60 mA at the same load, making it ideal for applications where power efficiency is critical.
The device maintains stability with ceramic capacitors on the output and is compliant with the AEC-Q100 automotive standard, confirming its suitability for automotive applications. It operates reliably up to a maximum temperature of 125°C, supporting harsh and demanding environments.
The regulator supports an input voltage range from 0 mV to a maximum of 18 V and provides output current exceeding 3 Amps, catering to demanding load requirements. Its design helps generate secondary power rails without the need for switching regulators, minimizing power loss and avoiding expensive polarized tantalum capacitors.
Typical use cases include point of load regulation for FPGA, DSP, and processor devices, as well as switching power supply post regulation in servers and networking equipment. This device is PPAP capable and engineered to meet the rigorous demands of automotive and network communication applications.
Typical dropout voltage of 300 mV at 3.0 A load. Low ground current of 60 mA at full load. Stable with ceramic capacitors on output. Automotive standard AEC-Q100 qualified. Maximum operating temperature of 125°C. Maximum input voltage of 18 V.
Output current exceeding 3 Amps. Designed for efficient secondary power rail generation. PPAP capable for automotive applications. Ideal for servers and networking equipment power management. Explore more power management solutions and Voltage Regulators at EnvMart for your specialized industrial, automotive, and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this voltage regulator is 18 V.
It has a typical dropout voltage of 300 mV at a full load of 3.0 A.
The NCP59302DSADJR4G can provide an output current exceeding 3 Amps.
This voltage regulator operates reliably up to a maximum temperature of 125°C.
It maintains stability with ceramic capacitors on the output.
The ground current is low at 60 mA when operating at a full load of 3 Amps.
It is compliant with the AEC-Q100 automotive standard, making it suitable for automotive applications.
The dimensions of this model are 10.23 mm in length, 9.34 mm in width, and 4.57 mm in height.
The minimum input voltage is 0 mV.
This model uses surface mounting with a 5-pin configuration.
It is ideal for point of load regulation in FPGAs, DSPs, and processors, as well as switching power supply post regulation in servers and networking equipment.
Yes, it is designed to generate secondary power rails efficiently without the need for switching regulators.
