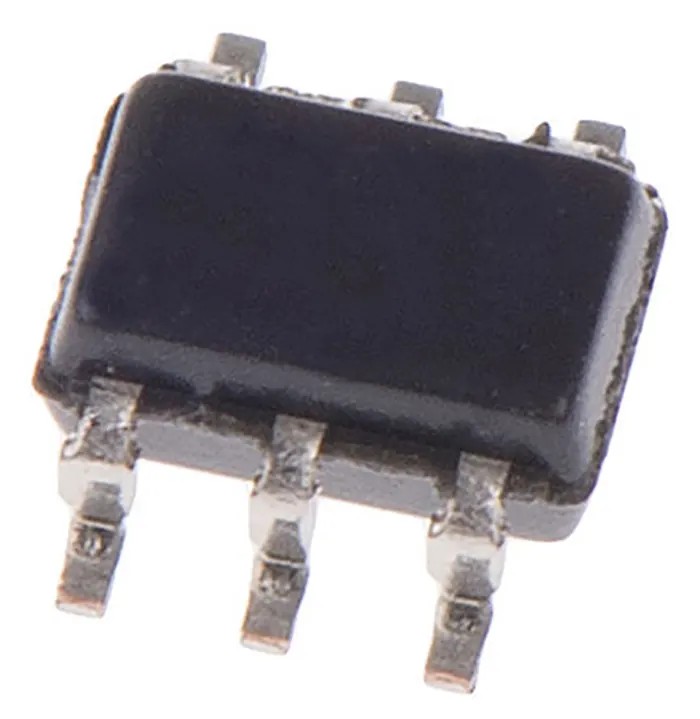

Texas Instruments 2-Channel Non-Inverting CMOS Buffer 6-Pin SC-70 Logic IC SN74LVC2G34DCKR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 2mm |
| Model | SN74LVC2G34DCKR |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | CMOS |
| Series | SN74LVC2G34 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 2 |
| Operating Voltage | 1.65 to 5.5 V |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Buffer |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Low Level Output Current | 32mA |
Key Features
- Operates within a voltage range of 1.65 to 5.5 V for flexibility in various circuits.
- Provides single-ended input with non-inverting polarity to maintain signal integrity.
- Maximum operating temperature of 85°C allows for reliable performance in diverse environments.
- Supports output currents of up to ±32 mA for driving a variety of loads.
- Compact 6-pin SC-70 package measuring 2 mm in length and 900 μm in height for space-saving PCB layouts.
- Surface-mount mount type facilitates automated manufacturing and assembly.
- Designed for compatibility with LVTTL/TTL input and LVCMOS output standards.
- Meets RoHS compliance for environmentally responsible manufacturing.
Product Description
Texas Instruments SN74LVC2G34DCKR is a new 2-channel non-inverting CMOS buffer logic IC designed to operate with a supply voltage range from 1.65 V up to 5.5 V. Packaged in a compact 6-pin SC-70 surface-mount configuration, it is suitable for dense electronic circuit designs.
This device features single-ended inputs and CMOS outputs with non-inverting polarity, enabling clear signal buffering and logic level translation. It supports a maximum output current of ±32 mA and operates reliably across a temperature range of -40°C to 85°C.
The small footprint with dimensions of 2 mm in length and 900 μm height makes it ideal for space-constrained applications. Its compatibility with LVTTL/TTL inputs and LVCMOS outputs ensures seamless integration into varying electronic systems.
Compliant with RoHS standards, this logic IC is environmentally friendly and suited for applications in industrial control systems, consumer electronics, communications devices, and general-purpose digital circuits.
Operates at 1.65 to 5.5 V supply voltage for flexible use cases. Provides 2 non-inverting buffer channels for signal integrity. Package type SC-70 with 6 pins for compact PCB design. Output current ±32 mA supports diverse load conditions.
Operating temperature range from -40°C to 85°C for rugged use. Compatible with LVTTL/TTL input and LVCMOS output logic levels. RoHS compliant device ensuring environmental safety. Suitable for industrial, consumer, and communication electronics.
Explore more semiconductor and logic IC offerings in our Electronics & Electricals category on EnvMart to find complementary components that fit your project needs.
Explore more products in our Logic ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a voltage range of 1.65 to 5.5 V, providing flexibility for various circuit applications.
The SN74LVC2G34DCKR supports a maximum output current of ±32 mA, allowing it to drive a variety of loads.
The package measures 2 mm in length and 900 μm in height, making it suitable for compact PCB layouts.
This logic IC operates reliably across a temperature range of -40°C to 85°C, suitable for diverse environments.
Yes, it is designed for compatibility with LVTTL/TTL input and LVCMOS output standards.
It features single-ended inputs with non-inverting polarity to maintain signal integrity.
The SN74LVC2G34DCKR has a pin count of 6, suitable for compact designs.
It is a surface-mount type, facilitating automated manufacturing and assembly.
This model functions as a buffer, providing signal buffering and level translation.
It meets RoHS compliance standards, ensuring environmentally responsible manufacturing.
It belongs to the SN74LVC2G34 series, which includes non-inverting CMOS buffers.
It is suitable for applications in industrial control systems, consumer electronics, communications devices, and general-purpose digital circuits.
