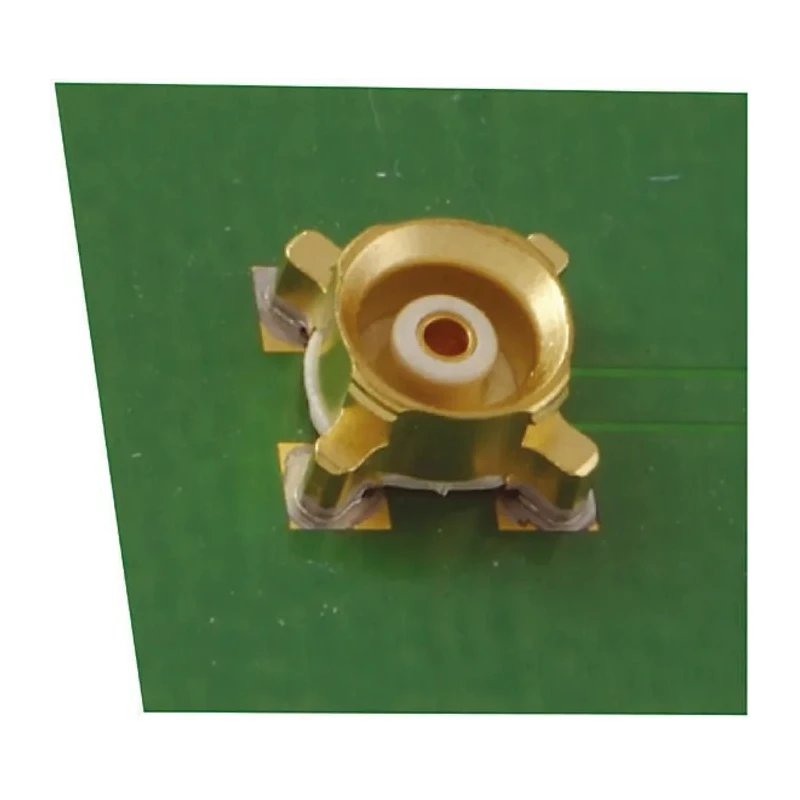

Radiall MMBX Series Coaxial Connector Surface Mount Female, 50 Ω Impedance, Straight Body Solder Termination R223 424 000W
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Straight |
| Model | R223 424 000W |
| Mount Type | Surface |
| Operating Frequency | 12.4GHz |
| Contact Material | Brass |
| Series | MMBX |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MMBX |
| Body Plating | Gold, Nickel |
Key Features
- The connector features a gold and nickel plated body for enhanced durability.
- It operates at frequencies up to 12.4 GHz ensuring reliable signal transmission.
- Designed to withstand temperature extremes from -55°C to 155°C for robust performance.
- Female connector gender with brass contact material plated with gold over nickel for excellent conductivity.
- Suitable for surface mount applications with standard size and normal polarity configurations.
- The connector is compatible with GSM, PCS, WCDMA, and UMTS telecommunication systems.
- Ensures quick and easy connection with minimal space requirements due to MMBX series design.
- Manufactured in China with new product condition guaranteeing quality.
Product Description
Radiall R223 424 000W MMBX Series Coaxial Connector is a surface mount female connector engineered for high frequency RF applications with 50 Ω impedance and a straight body for solder termination. It is manufactured with precision brass contacts plated with gold over nickel, and a body plated in gold and nickel, ensuring excellent conductivity and corrosion resistance.
This connector supports operating frequencies up to 12.4 GHz, making it appropriate for telecommunications and wireless infrastructure including GSM, PCS, WCDMA, and UMTS systems.
Designed to endure harsh environments, it can operate in temperatures ranging from -55°C up to 155°C, making it suitable for industrial, laboratory, and commercial electronic equipment.
The MMBX series' compact form factor allows a quick connection with minimal space. Its normal polarity and standard size make it compatible with a wide range of PCB designs and circuit integration. It is optimized for surface mount applications, supporting solder termination for secure assembly.
It does not carry specific approvals or certifications but is built with quality materials to ensure reliability and performance. The connector features a gold and nickel plated body for enhanced durability. It operates at frequencies up to 12.4 GHz ensuring reliable signal transmission.
Designed to withstand temperature extremes from -55°C to 155°C for robust performance. Female connector gender with brass contact material plated with gold over nickel for excellent conductivity. Suitable for surface mount applications with standard size and normal polarity configurations.
Compatible with telecommunication systems such as GSM, PCS, WCDMA, and UMTS. Compact design allows quick connection with minimal space requirement. Manufactured in China with new product condition guaranteeing quality. Explore the comprehensive range of Coaxial Connectors and related components at EnvMart for industrial, electronic, and telecommunications applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at frequencies up to 12.4 GHz, making it suitable for high frequency RF applications.
The connector has an impedance of 50 Ω, which is standard for many RF applications.
It can operate within a temperature range of -55°C to 155°C, allowing it to function in harsh environments.
This connector features a solder termination type, ensuring a secure connection.
The contact material is brass, which is plated with gold over nickel for enhanced conductivity.
This model is designed for surface mount applications, allowing for compact installation.
The connector is a female type, suitable for various applications.
Yes, it is compatible with GSM, PCS, WCDMA, and UMTS telecommunication systems.
The body is plated with gold and nickel, enhancing its durability and corrosion resistance.
It has a standard size, making it compatible with a wide range of PCB designs and circuit integrations.
This connector is manufactured in China, ensuring quality in its construction.
The connector features a straight body orientation, which is typical for many applications.
