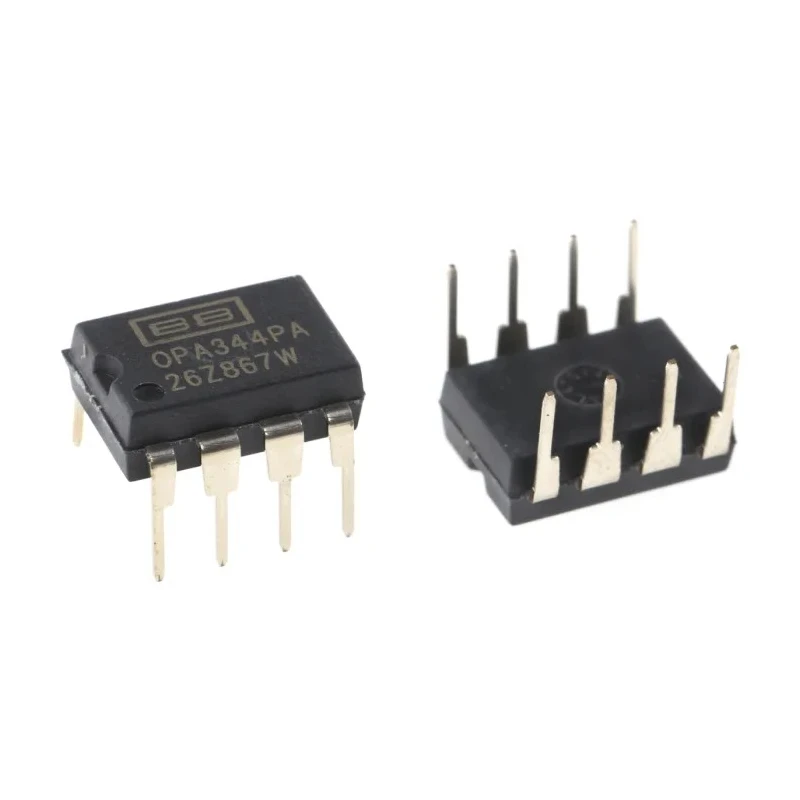

Texas Instruments Operational Amplifier 1 MHz 8-Pin PDIP 5.5V OPA344PA

Texas Instruments OPA344PA is a high-performance single channel operational amplifier designed for through-hole mounting in an 8-pin PDIP package. It features a gain bandwidth product of 1 MHz, making it suitable for precision amplification tasks in various electronic circuits. The device operates at a supply voltage range of 3 V minimum up to 5.5 V maximum, ensuring compatibility with a range of low voltage systems.

With an input offset voltage of ±1 mV and ultra-low input bias current of ±10 pA, the OPA344PA ensures minimal signal distortion and high accuracy in signal processing applications. The amplifier's slew rate of 0.8 V/μs supports fast transient response, critical in high-speed analog signal conditioning.

The device can reliably operate in harsh industrial and automotive environments, with an operating temperature range from -40°C up to 85°C. Its compact dimensions - 9.81 mm length, 6.35 mm width, and 4.57 mm height - allow ease of integration into PCB designs with limited space.

Built with CMOS technology and belonging to the OPA344 series, this operational amplifier offers stable performance without any automotive-specific certifications. It is ideal for industrial machines, electronic instruments, and laboratory electronics requiring high-fidelity amplification and signal conditioning.

Package type PDIP and through-hole mount design are suitable for prototyping and ease of manufacturing in both automated and manual assembly lines. The single channel design focuses on applications demanding precision and low noise.

High gain bandwidth product of 1 MHz ensures precise amplification. Single channel operational amplifier with 8-pin PDIP through-hole mounting. Operates within a supply voltage range of 3 to 5.5 volts. Low input offset voltage of ±1 mV enhances signal accuracy.

Extremely low input bias current of ±10 pA for minimal signal distortion. Slew rate of 0.8 V/μs supports fast signal response. Wide operating temperature range from -40°C to 85°C ensures reliability in industrial environments.

Compact dimensions of 9.81 mm length, 6.35 mm width, and 4.57 mm height. Designed using CMOS technology for improved performance and low power consumption. Explore more Operational Amplifiers and electronic components in our Electronics & Electricals category at EnvMart for your industrial, laboratory, or commercial projects.
